Carriage House Plan, 053G-0028
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

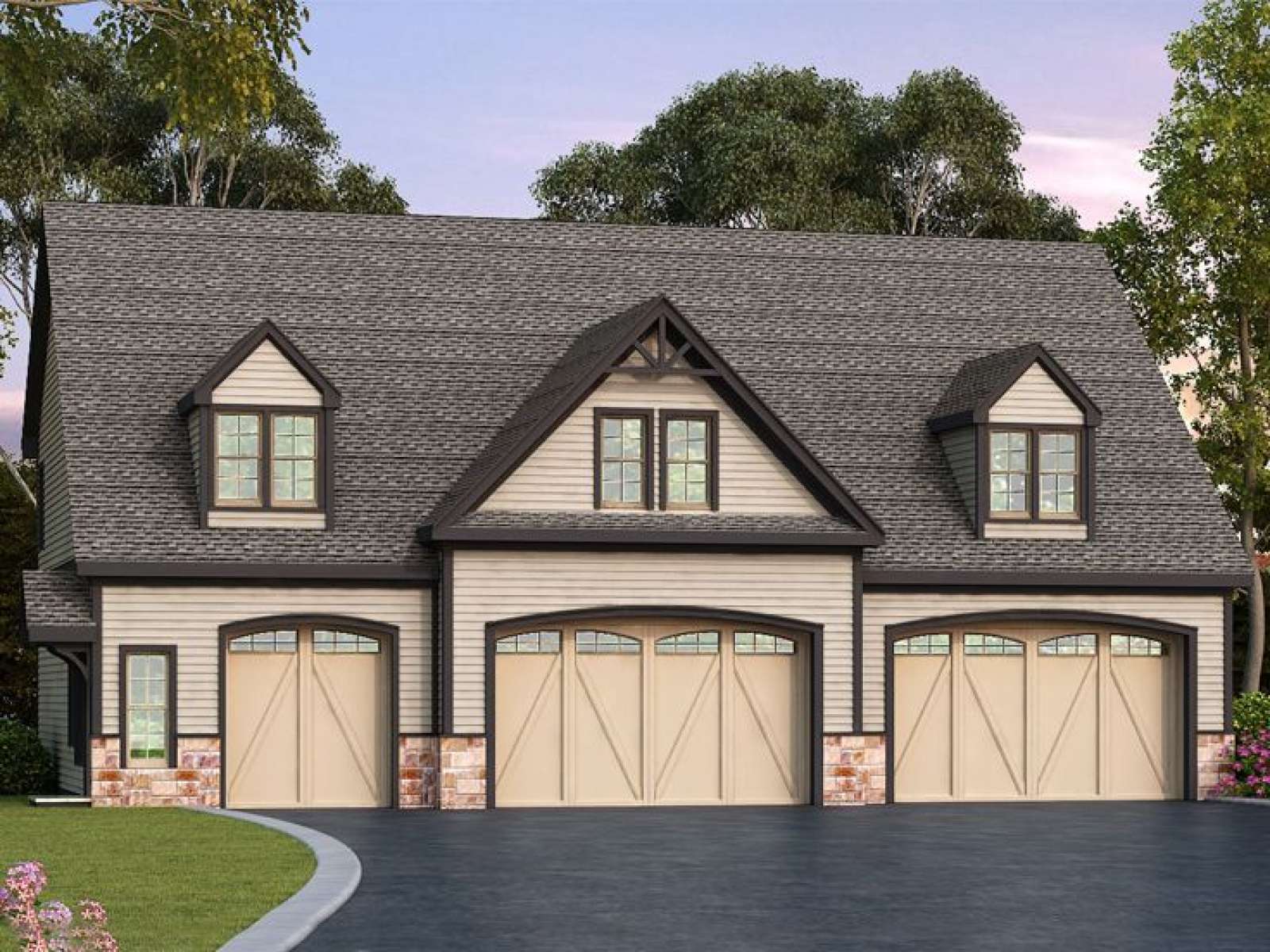

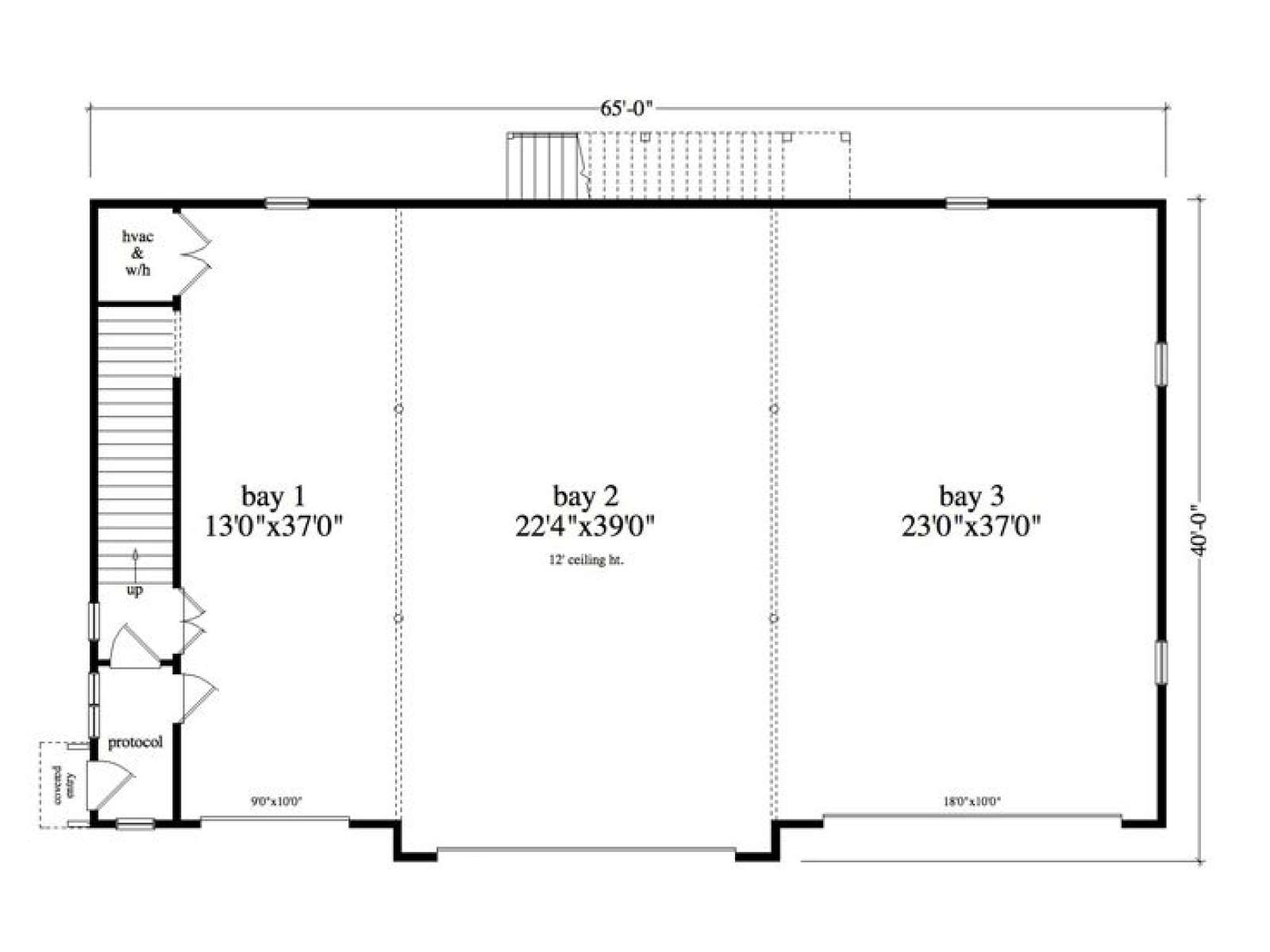

This carriage house plan with bays deep enough for boat storage has more to offer than you might expect. The design works well as a compliment to an existing home or as a standalone garage. The garage level offers 2200 square feet of usable space with three oversized bays and a 12’ ceiling. The extra deep bays are ideal for boat and/or trailer storage and with 10’ tall garage doors, it is easy to park an oversized SUV or truck inside the garage. The middle bay is even deep enough to park four cars tandem style with two in front and two at the back of the bay. For those looking for workshop or storage space, it is easy to convert one bay to satisfy your needs. The upper level is well suited for business owners who wish to work from home, but do not want to mix day-to-day operations with the family’s daily routine. The finished space above this garage (2084 square feet) reveals two large offices (both with fireplaces), a common work area, kitchen, conference room and reception area. Don’t miss the full bath and plenty of storage space. This thoughtfully planned office space allows a small business to work away from home without ever leaving home while providing the necessary space for a couple of extra employees. Some might consider converting the upstairs office space to an apartment with full living quarters for use as a vacation home or rental property. Flexible enough for work or comfort and thoughtfully planned for storage and business use, this garage apartment plan is one-of-a-kind!
| Heated Square Feet | |
| First Floor | 109 |
| Second Floor | 2084 |
| Total | 2193 |
| Unheated Square Feet | |
| Garage | 2200 |
| Full Bathrooms | 1 |
| Width | 65 ft. 0 in. |
| Depth | 40 ft. 0 in. |
| Approximate Height | 35 ft. 0 in. |
| Ceiling Height | |
| First Floor | 12 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 12/12 Front Gable |
| Roof Pitch | 9/12 Other |
| Roof Framing |
|
| Garage Door Size(s) | 9x10 |
| Garage Door Size(s) | 18x10 (2) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Special Features |
|
| Garage Features |
|

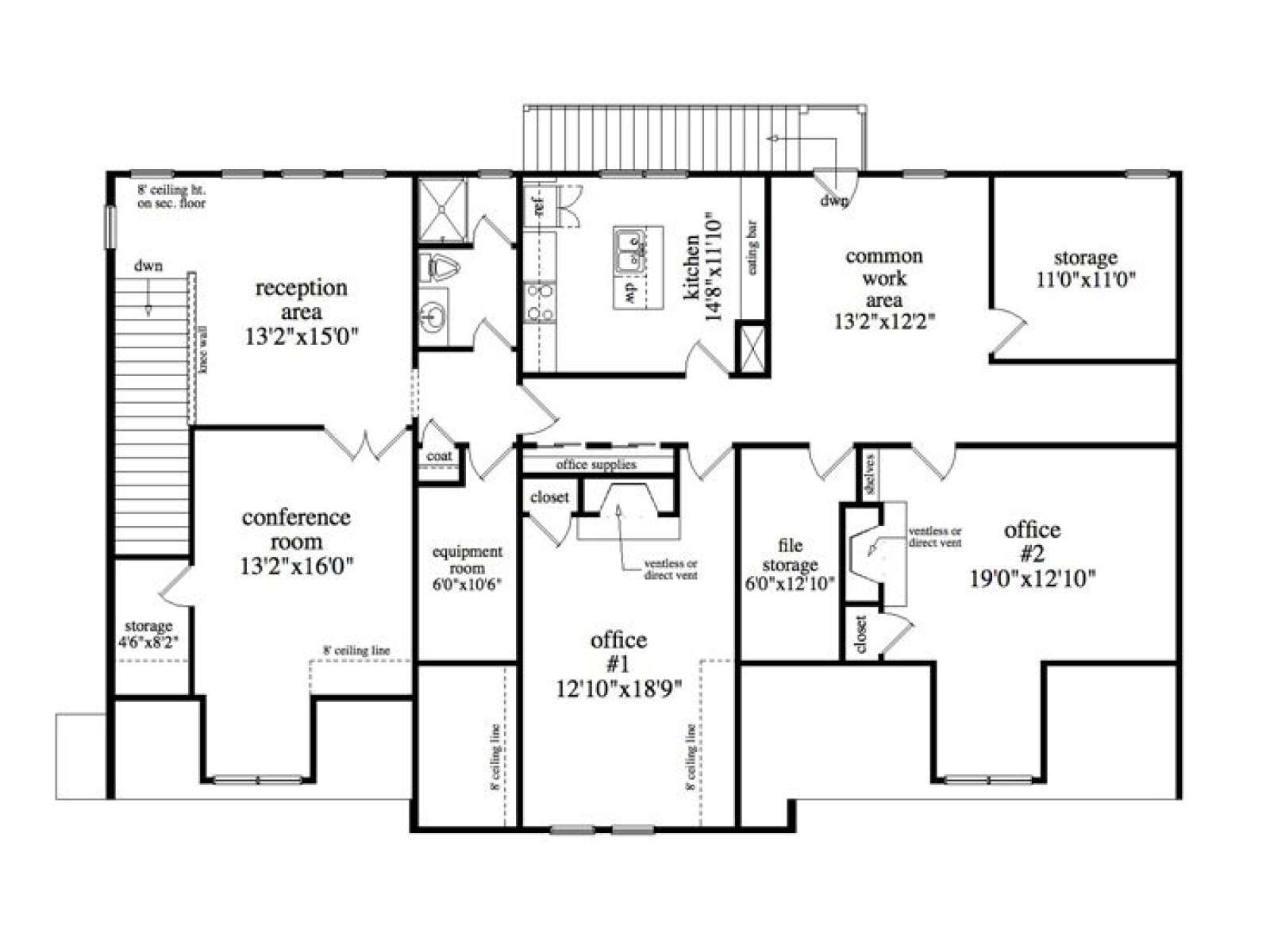

This garage apartment plan with flexible space is sure to surprise you! The main level offers a huge garage, perfect for car enthusiasts. It features 2200 square feet of unfinished parking, a 12’ ceiling, extra deep bays, and oversized garage doors (a 9’x10’ door and two 18’x10’ doors). For those who love to tinker with cars, this garage provides plenty of room for storage of tools and auto parts while protecting your prized cars from the elements. Boating and fishing enthusiasts might find the extra deep and extra tall bays perfect for storing a boat and trailer as well as the truck or SUV that pulls them to the lake or river. Interior and exterior stairs lead the flexible finished spaces above. The second floor reveals 2084 square feet of space designed to serve as an office for a home-based business. It features a reception area and conference room for meeting with clients as well as two private offices, a kitchen, a common work area, and plenty of storage for business files and related items. But don’t be fooled. The second floor is flexible enough to be converted to living quarters, a garage apartment, a guest retreat or even as a vacation/weekend home. Fashioned with plenty of parking, boat storage and flexible finished areas, this carriage house plan can satisfy a broad range of needs.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $105 | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
