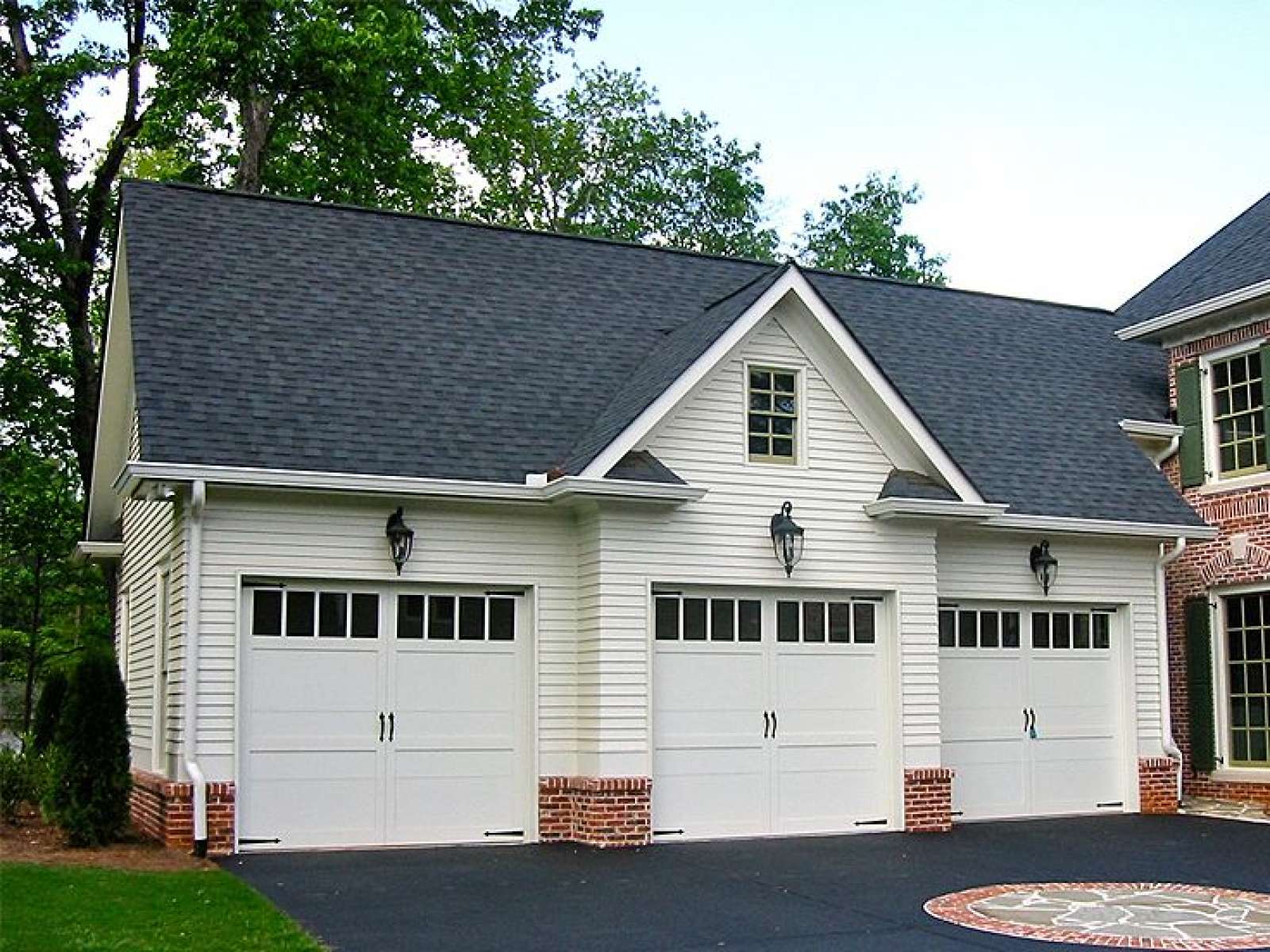

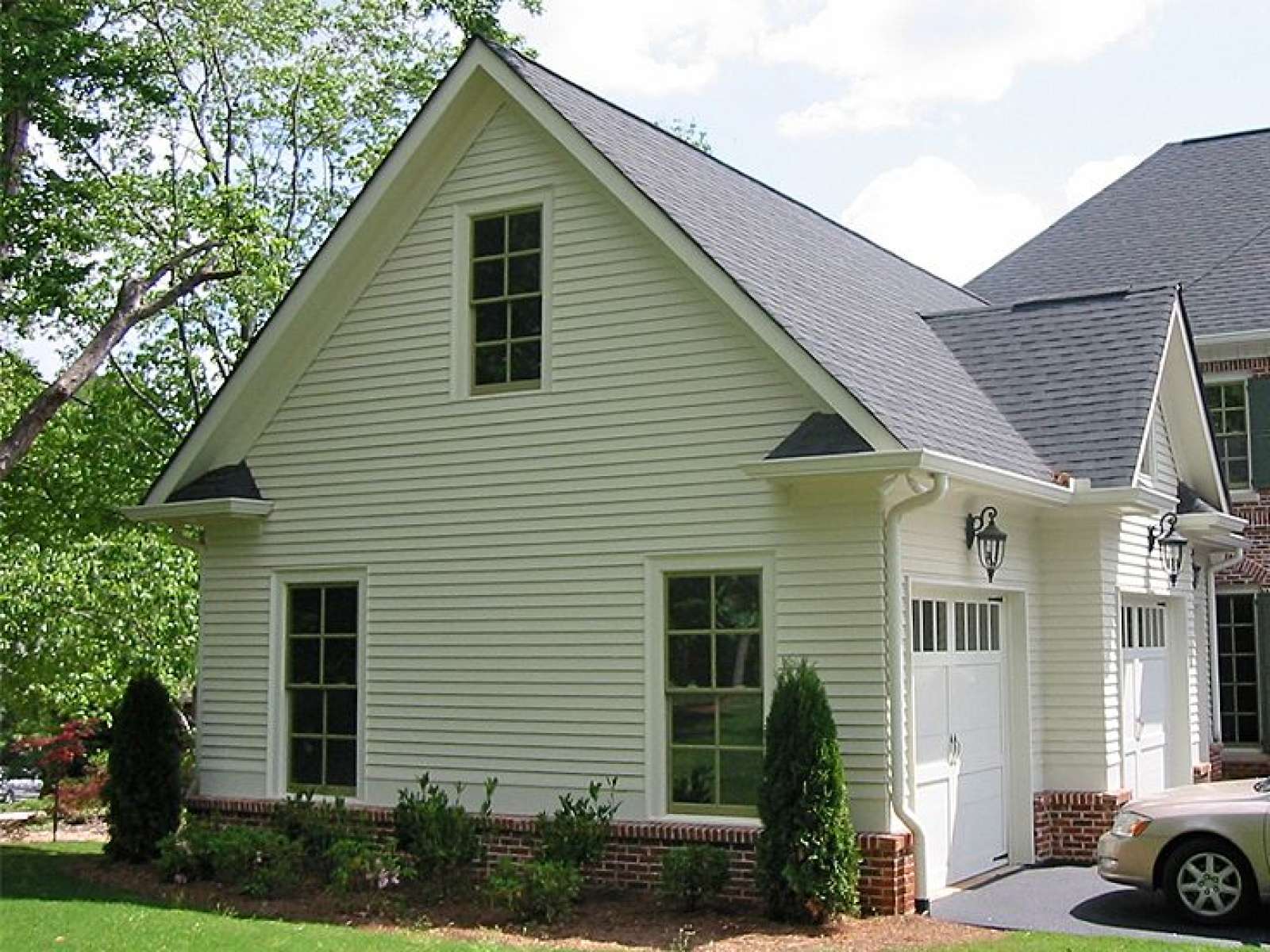

Carriage House Photo, 053G-0026
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

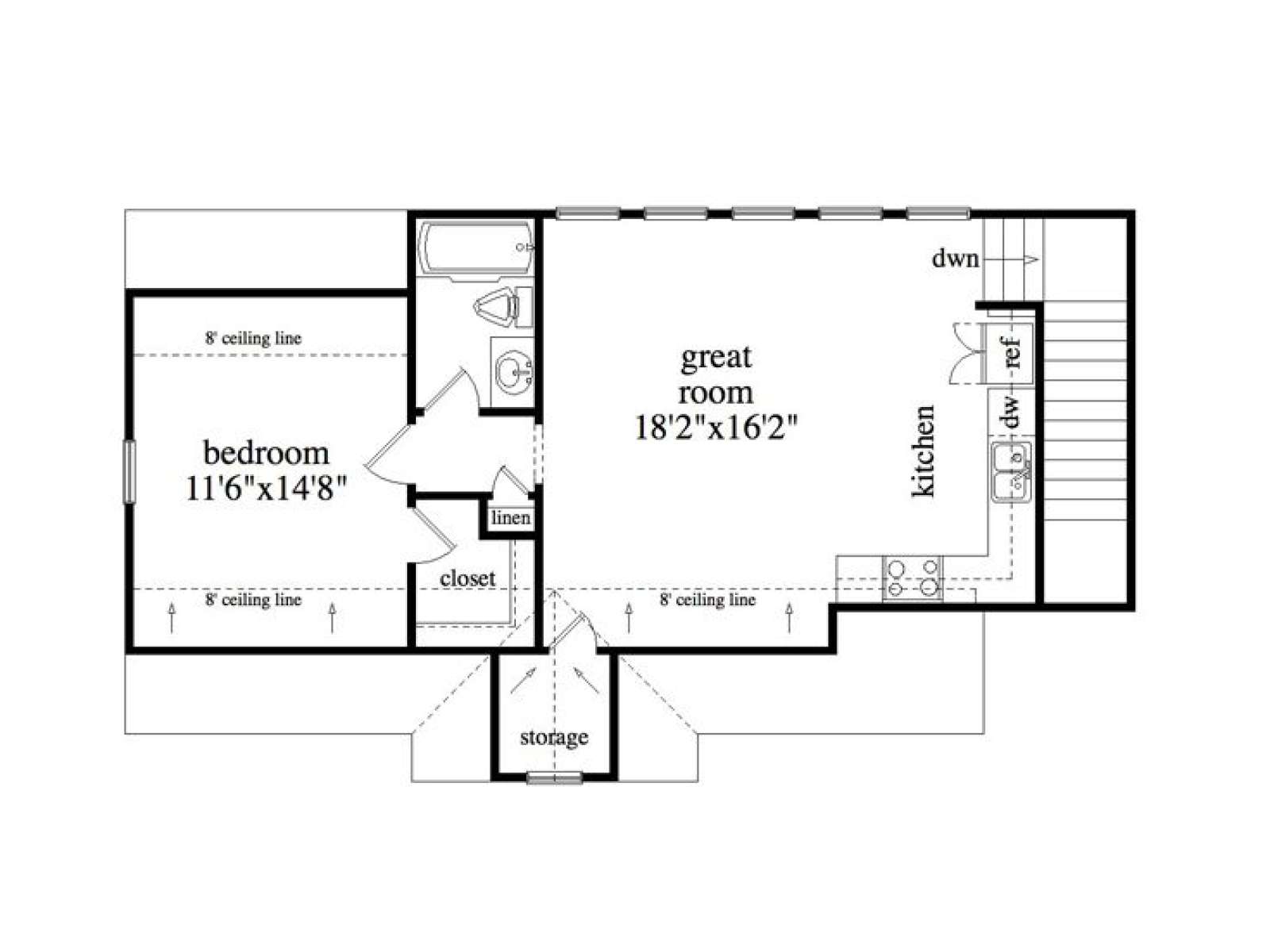

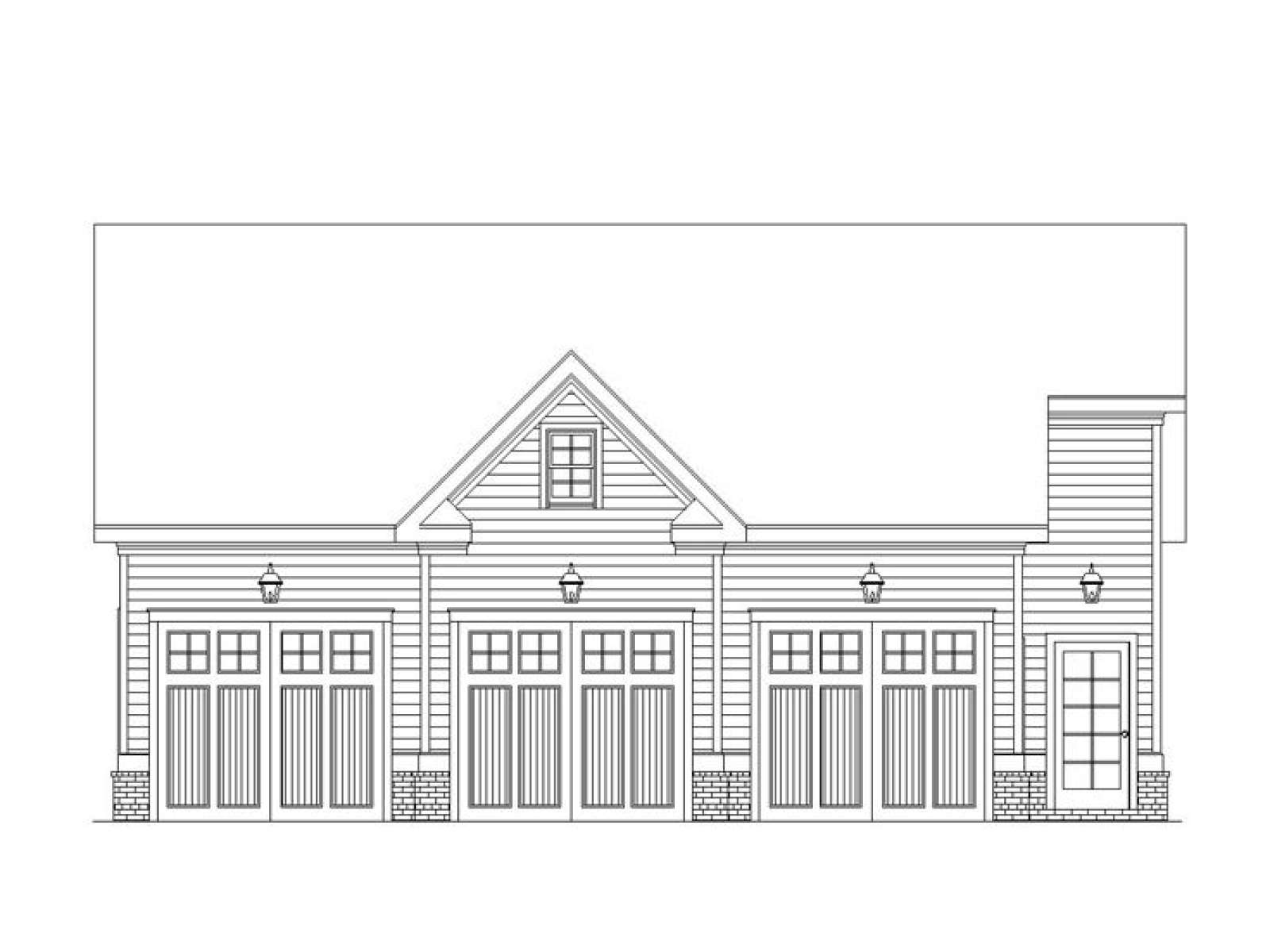

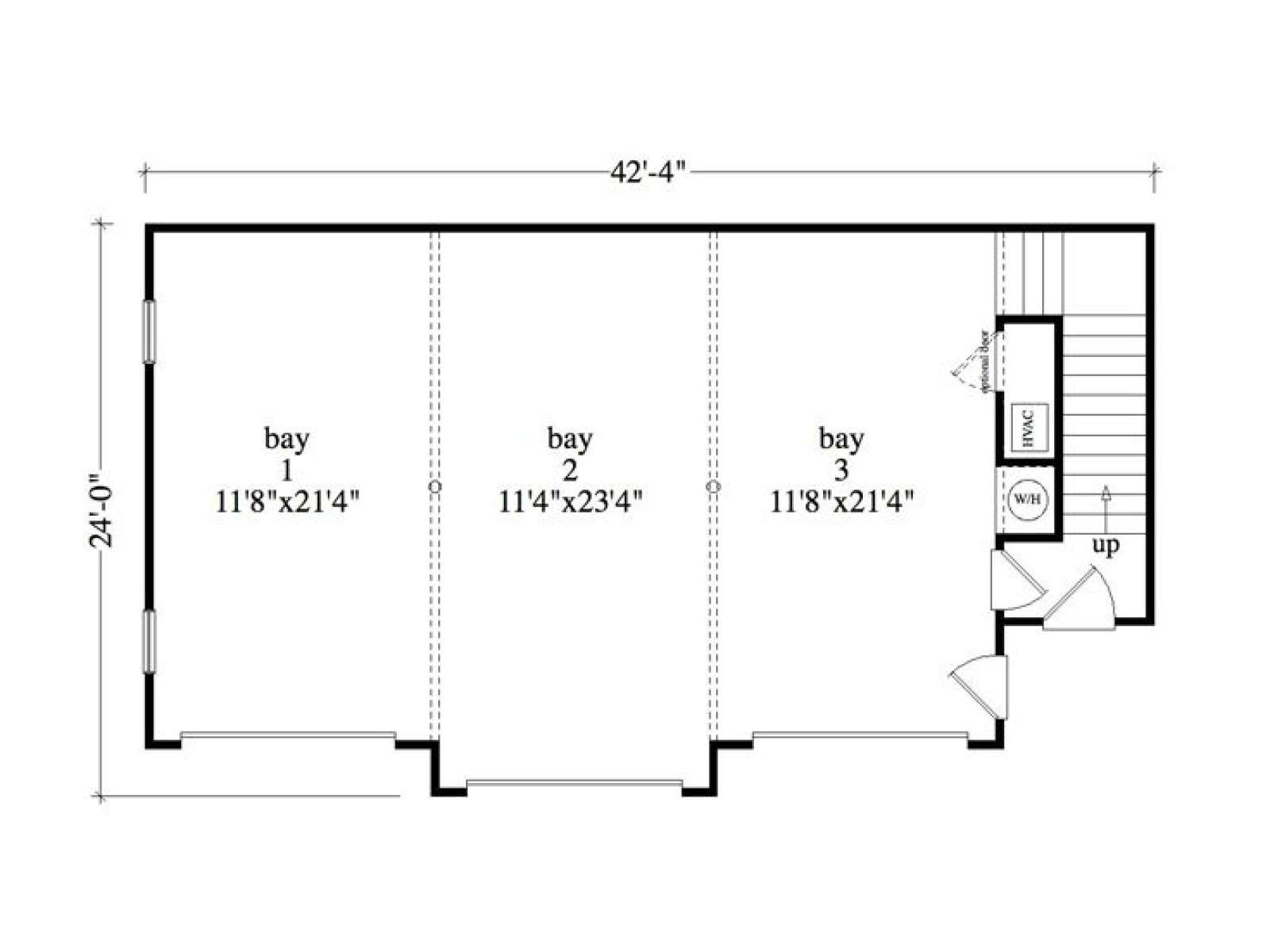

Stylish and charming, this carriage house plan is a detached garage complete with upper-level living quarters. The exterior showcases a siding façade accented with stone and carriage lamps lending a touch of Colonial flair. However, its simple exterior blends neatly with many other architectural home styles as well. The main level features 785 square feet of usable space complete with three 9’-wide overhead doors, a 9’ ceiling and service entry. Interior stairs lend access to the upper-level apartment. Just right for your college student, these cozy living quarters offer privacy while remaining close to home. You might also consider renting out the apartment to earn extra income or using it as a guest house. Windows fill the combined great room and kitchen with natural light and provide plenty of space to relax. The bedroom enjoys a walk-in closet and immediate access to the bath. Don’t miss the convenient storage closet. Practical and flexible for a variety of uses this detached 3-car garage apartment plan is designed to accommodate a broad range of needs.
| Heated Square Feet | |
| First Floor | 88 |
| Second Floor | 672 |
| Total | 760 |
| Unheated Square Feet | |
| Garage | 785 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 42 ft. 4 in. |
| Depth | 24 ft. 0 in. |
| Approximate Height | 23 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 12/12 Front Gable |
| Roof Pitch | 4/12 Rear Shed |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Bedroom Features |
|
| Interior Features |
|
Touches of Colonial styling give this three-car garage apartment plan timeless curb appeal. With its central gable, it not only blends with many historical homes but many other architectural styles as well making it a suitable complement to most existing homes. The exterior features a siding façade with brick accents and carriage lamps. Three overhead doors open to 785 square feet of usable space neatly accommodating a trio of vehicles. Or perhaps you only need to store two cars. Then just use the other bay for storage or a workshop. This detached garage features a 9’ ceiling on the main level and each garage door is 9’ wide nicely accommodating trucks or SUVs. Interior stairs lead the way to the second floor living quarters offering a nice guest suite. The main living area is bright and welcoming due to a wall of windows drawing natural light indoors. An efficiency kitchen is open to the great room and a storage closet delivers convenience. A full bath and comfortable bedroom with walk-in closet complete the 672 square foot apartment. Add extra parking and living space to your home with this carriage house plan and increase the overall function and value of your property.
