Carriage House Plan, 053G-0020
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

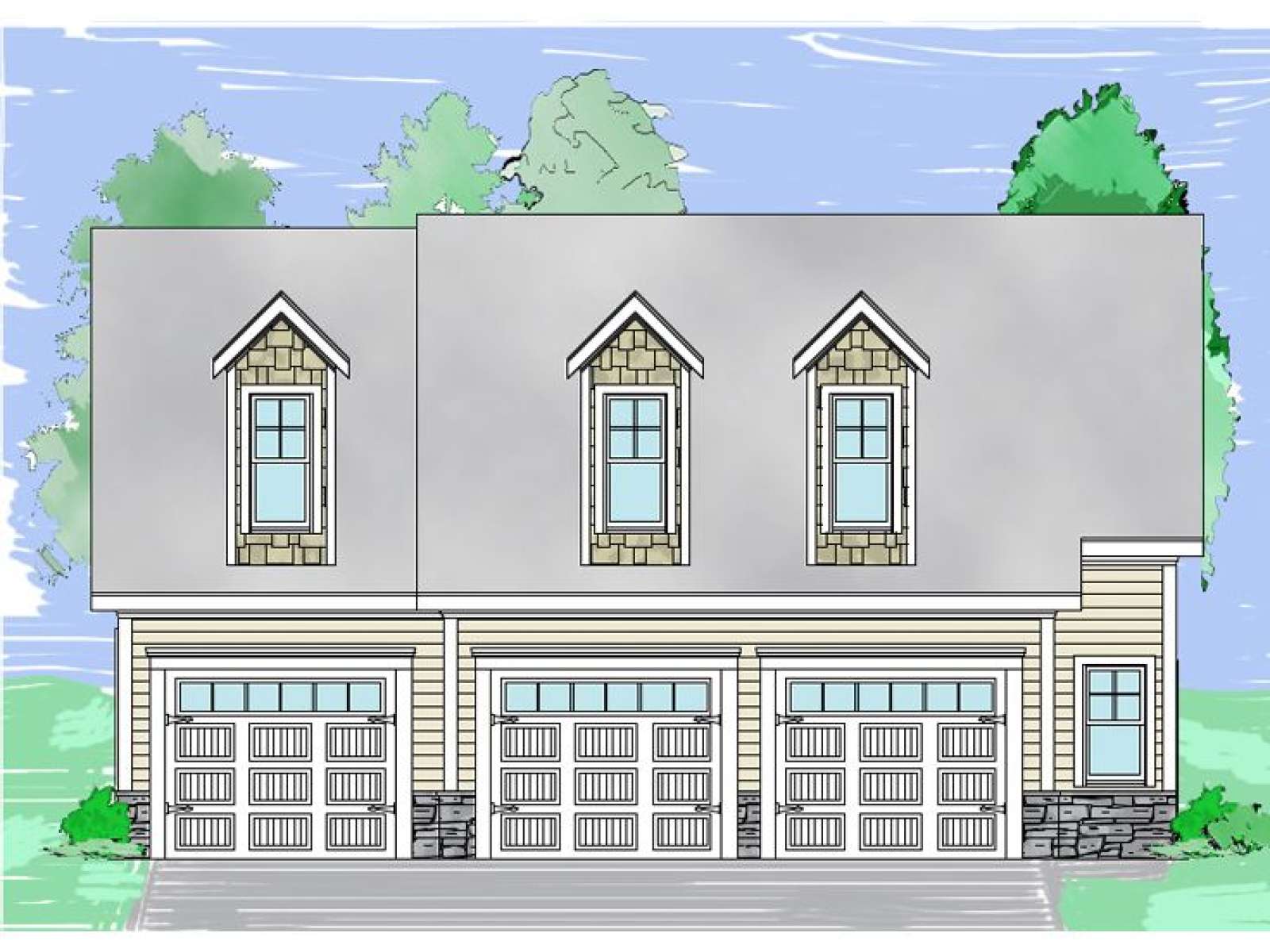

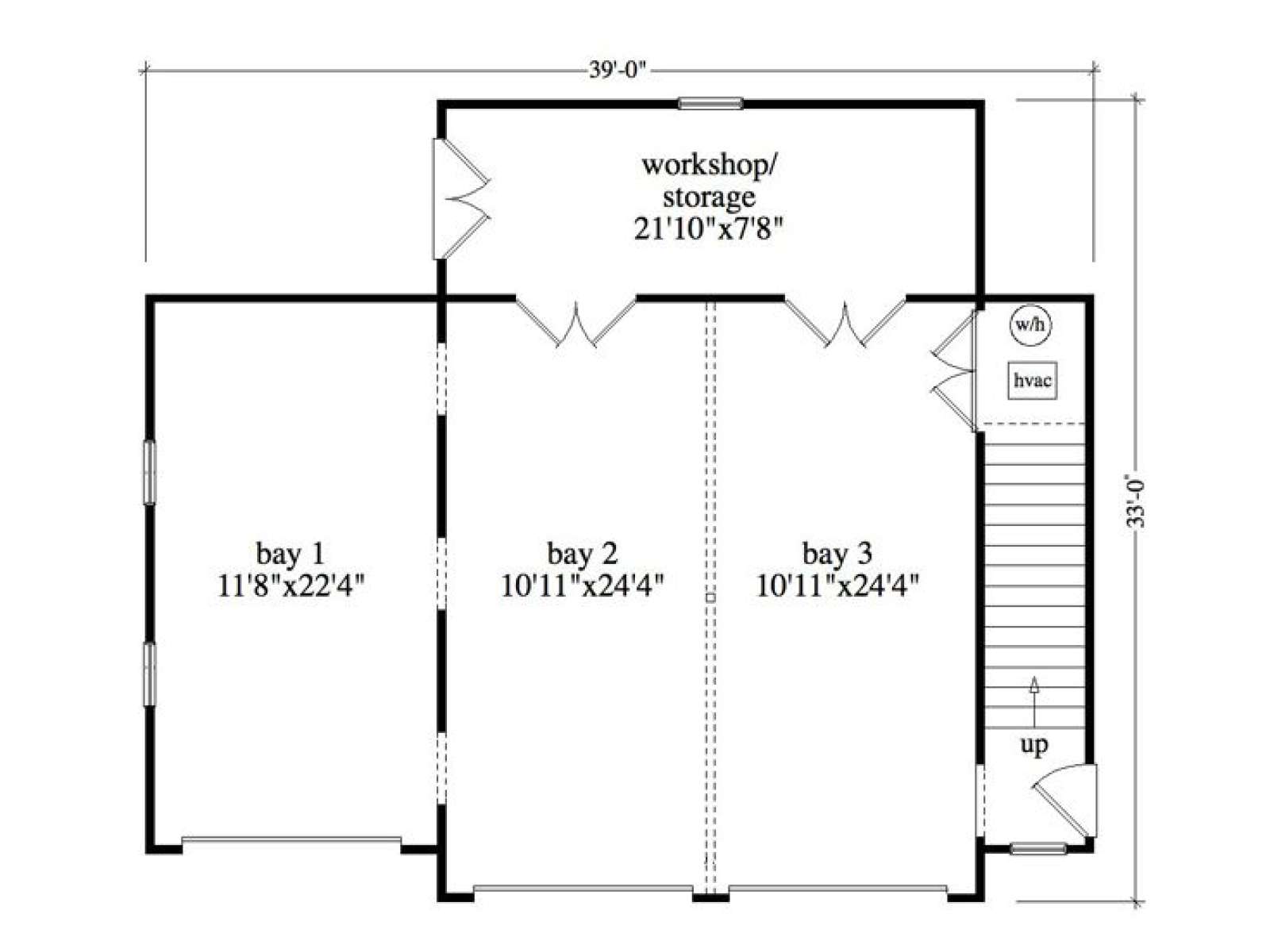

Cedar shakes and stone accents compliment the clap board siding façade of this carriage house plan with storage or workshop. The garage offers 810 square feet of parking area with a workshop or storage space behind providing room for a workbench or a great place to store lawn and garden tools, the kids’ bikes and/or sporting equipment. Double doors open to the yard for easy access. The garage area offers three overhead doors and a 9’ ceiling. You’ll appreciate how Bay 1 is separated from the other two bays lending flexibility for a variety of uses. On the upper level, the living quarters deliver 837 square feet of living space. This cozy apartment is ideal for a guest suite, in-law suite, or room for college students and boomerang children. Here you’ll find an efficient kitchen equipped with an island and pantry overlooking the comfortable common living area. A bedroom and full bath complete the living areas. Don’t miss the laundry closet! Designed to accommodate a broad range of needs, this 3-car garage apartment with workshop is a valuable addition to any piece of property.
| Heated Square Feet | |
| First Floor | 837 |
| Total | 837 |
| Unheated Square Feet | |
| Garage | 810 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 39 ft. 0 in. |
| Depth | 33 ft. 0 in. |
| Approximate Height | 23 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 12/12 Front Dormer |
| Roof Pitch | 4/12 Rear Gable |
| Roof Pitch | 4/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|

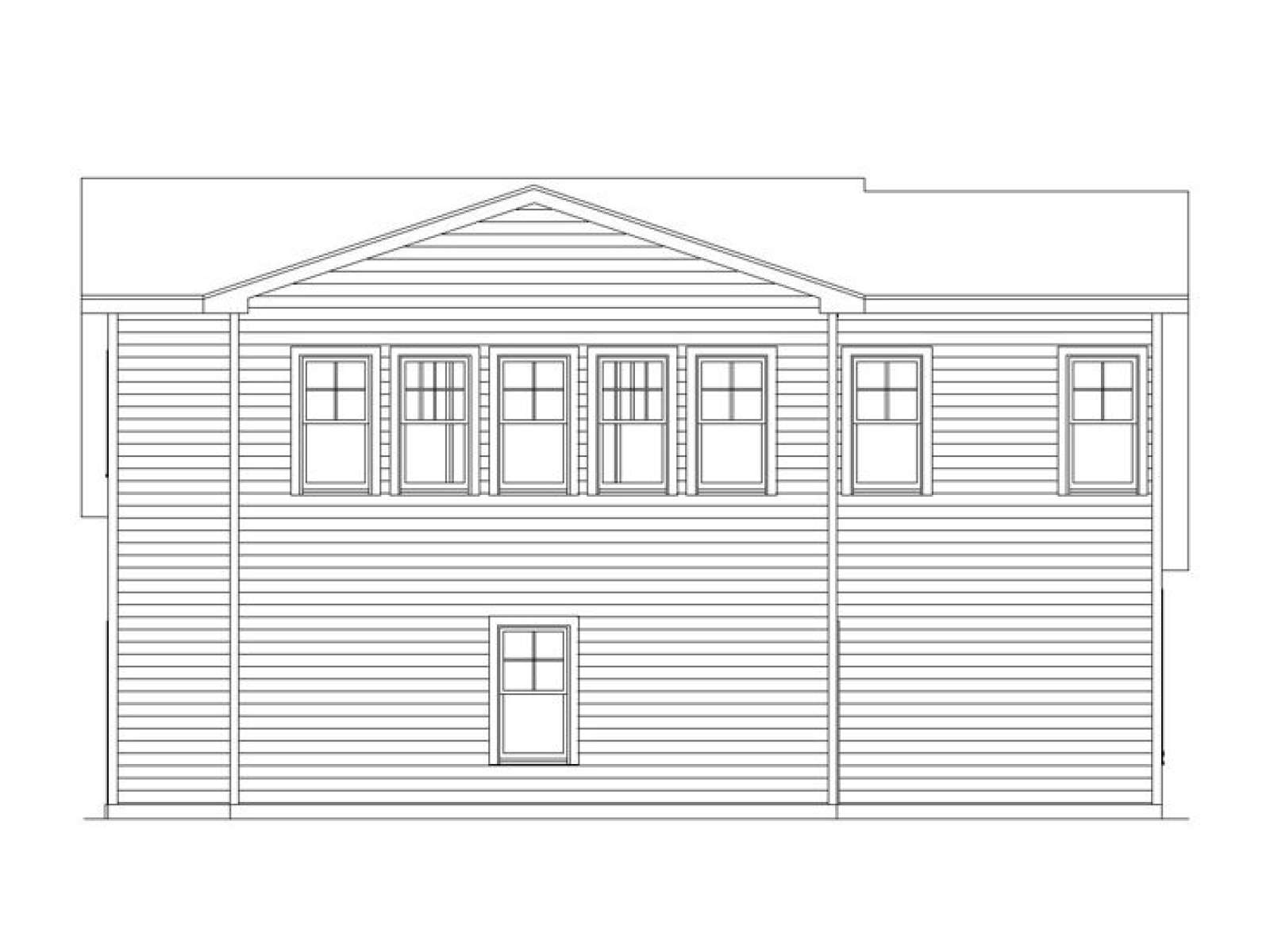

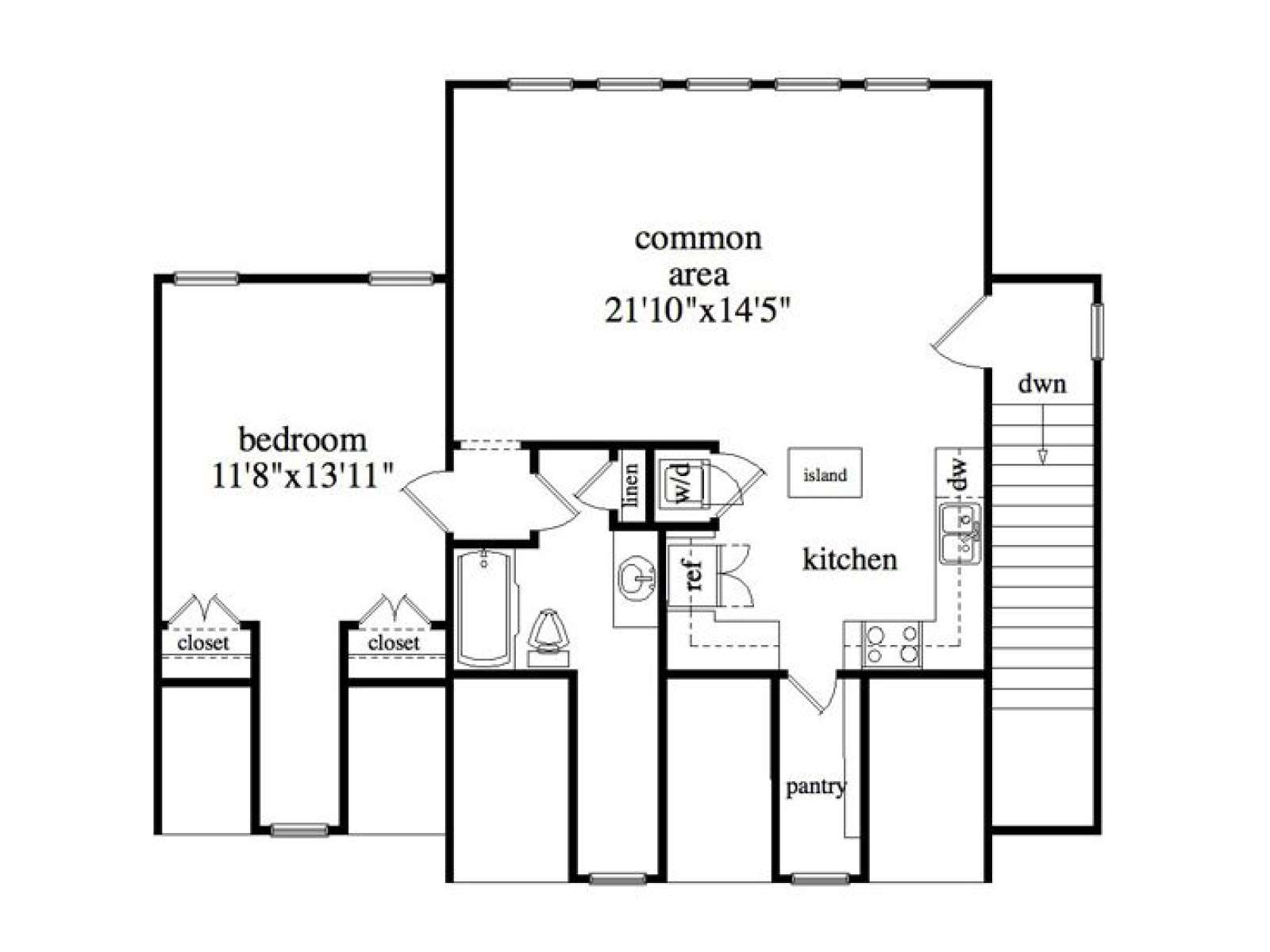

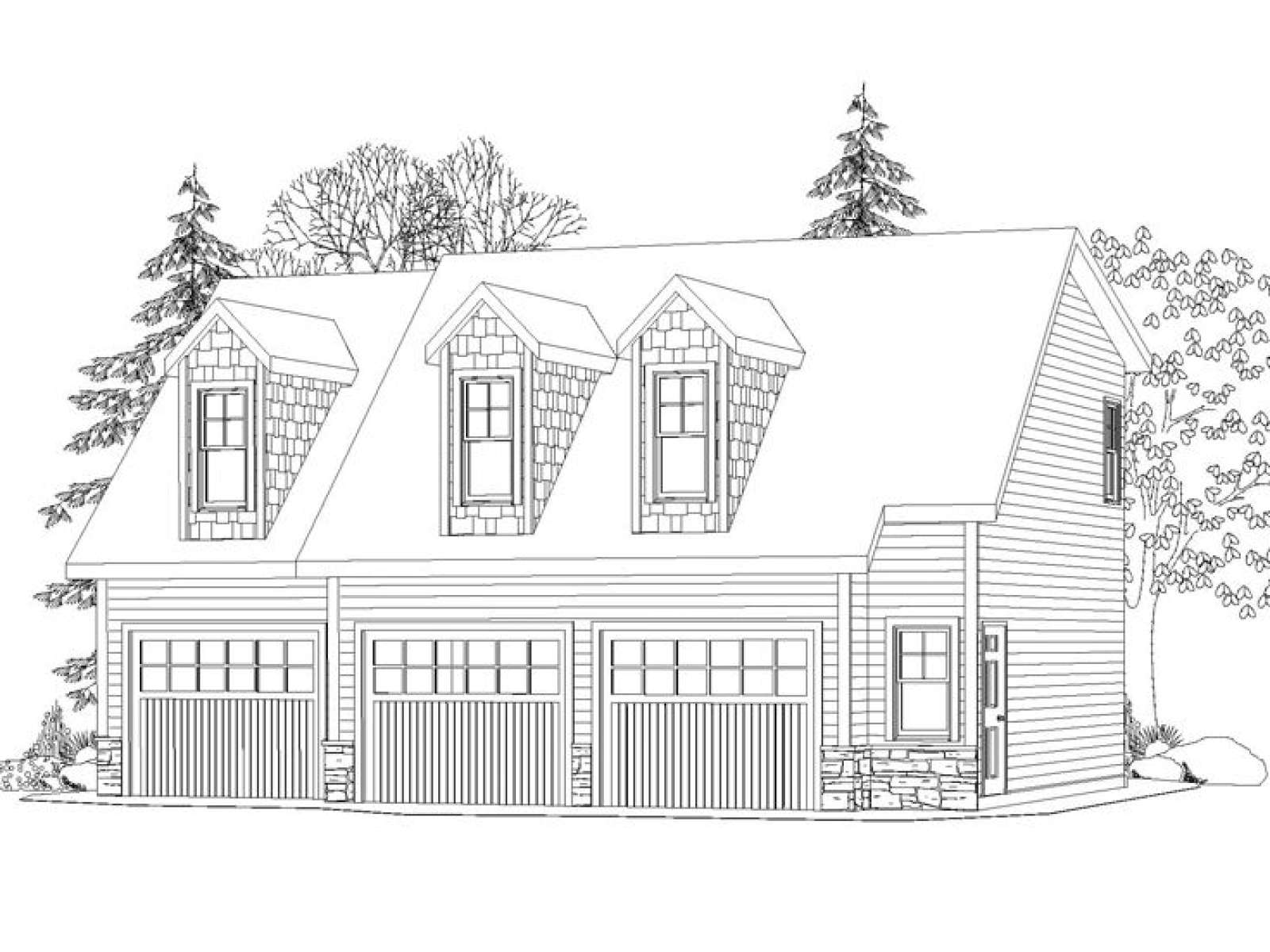

A multi-material façade (clapboard siding accented with stone and cedar shakes) mixes with a trio of dormers giving this three-car garage apartment plan with workshop an eye-catching exterior. On the main level, three overhead garage doors open to the 810 square foot parking area with workshop in the rear. Bay 1 is separated from the other two bays making it a great place to store items other than automobiles (ATV, motorcycle, etc.) or the ideal place for an auto enthusiast’s restored vehicle or prized sports car protecting it from the dents and dings of everyday garage traffic. The family handyman will love the workshop area, or perhaps a gardener would find this space handy for storing lawn and garden supplies. Double door access to the yard makes it easy to store and access items inside. Interior stairs lead to the upstairs living quarters. Here a wall of windows fills the common living area with natural light. The 837 square foot apartment features an island kitchen with large pantry, laundry closet, full bath, and private bedroom with double closets. The ideal addition to almost any home or a great alternative for a weekend retreat, this carriage house plan with storage space is worth taking a closer look!
