Garage Apartment Plan, 053G-0019
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

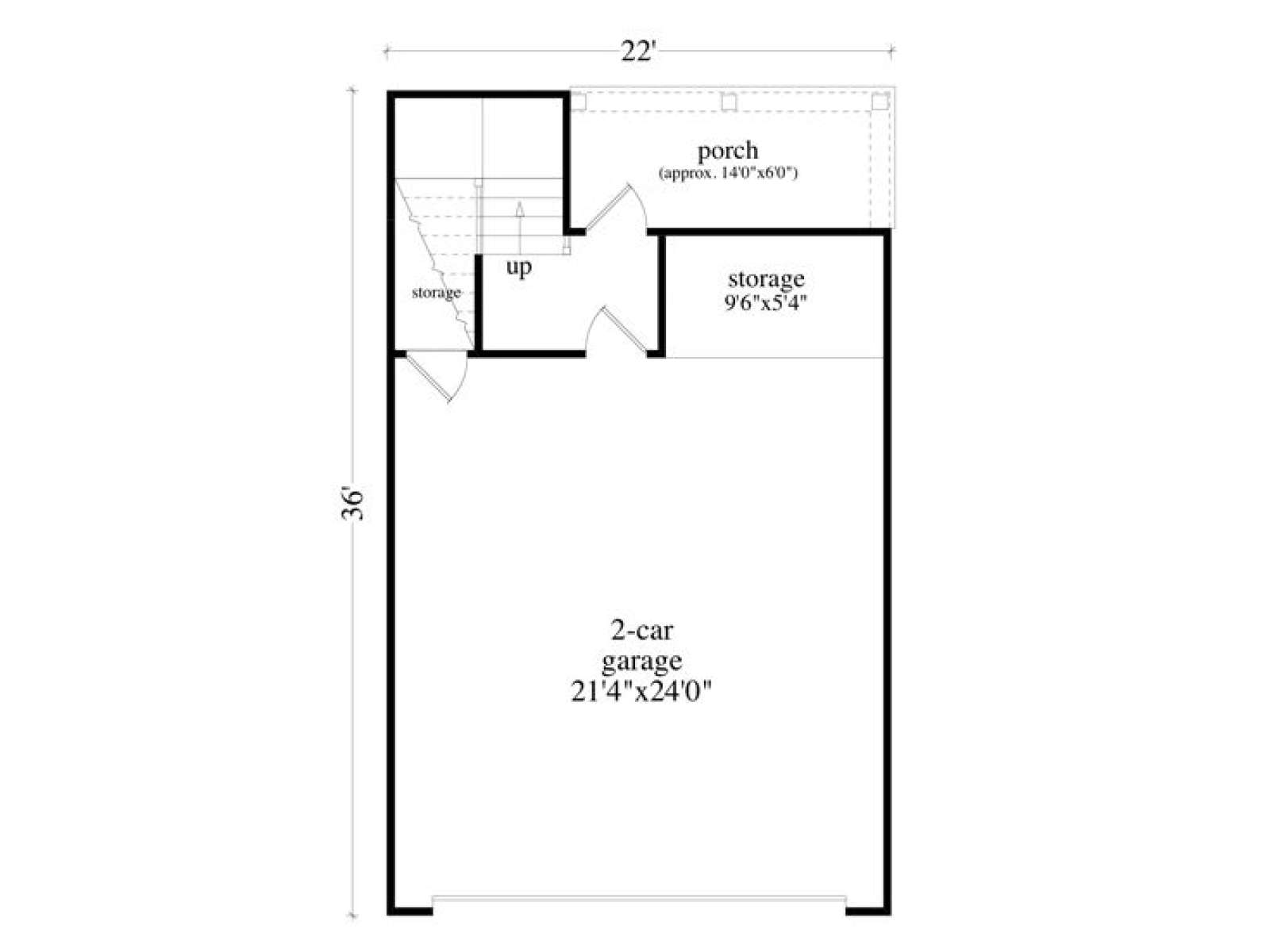

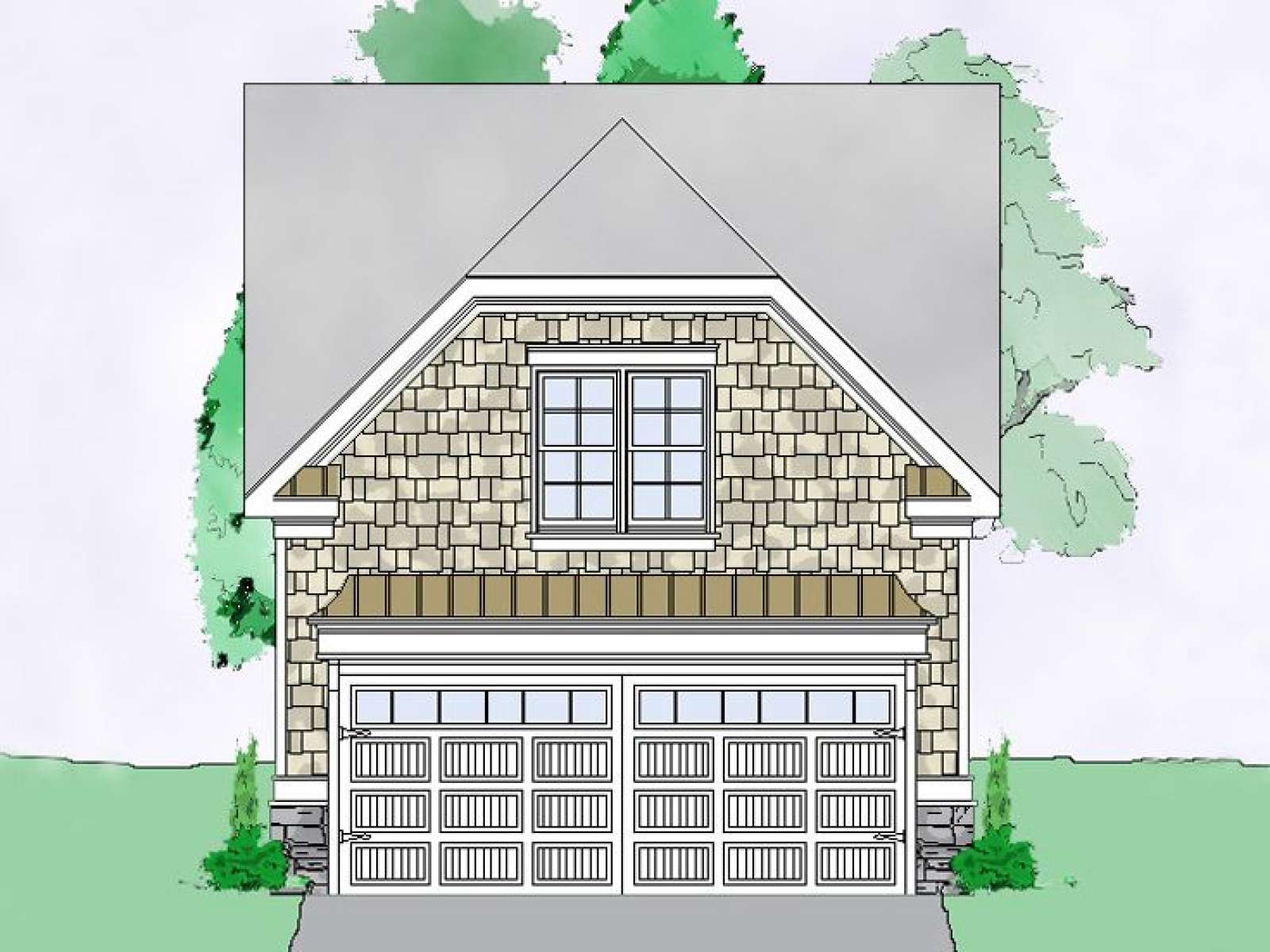

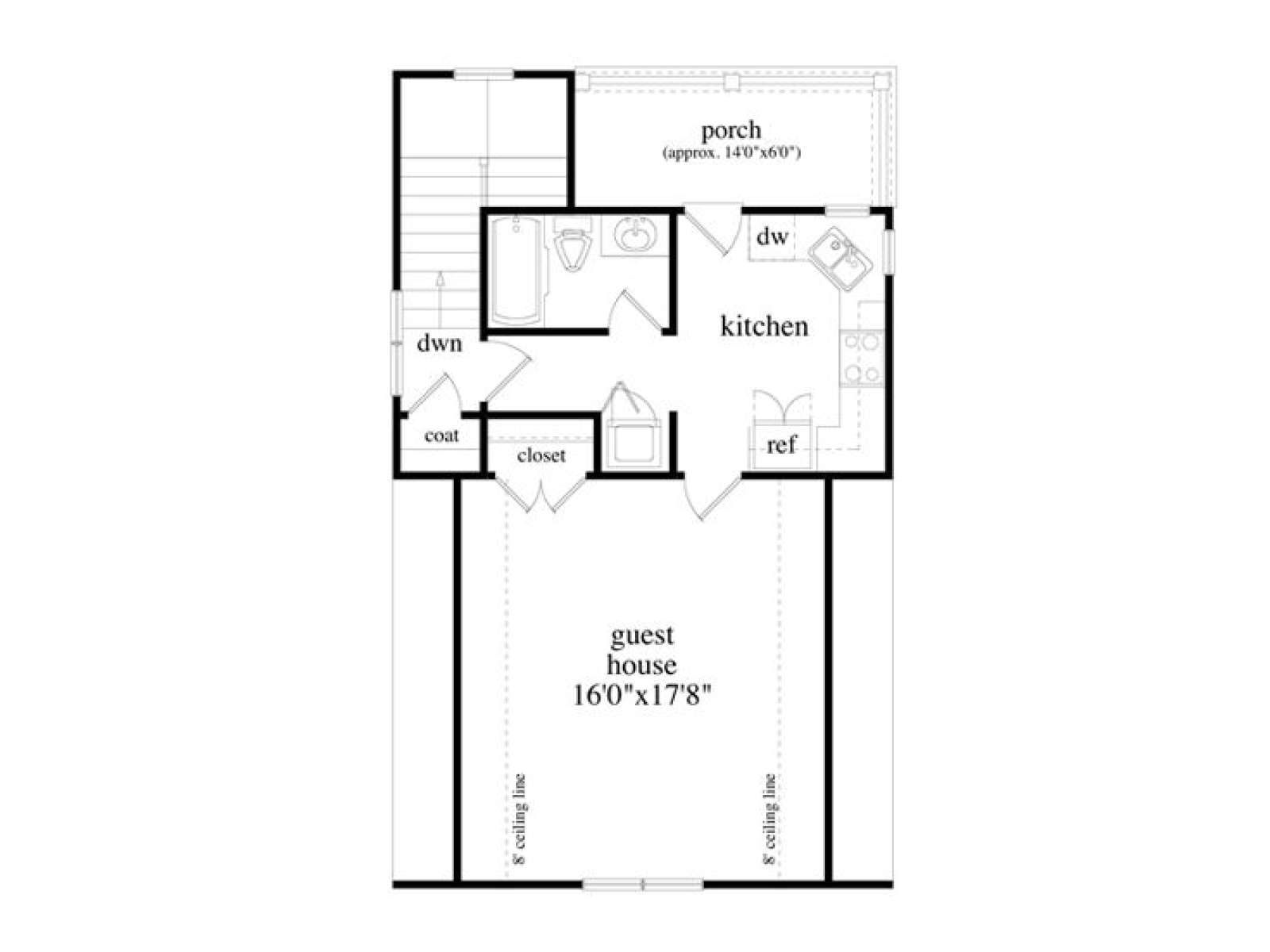

This carriage house plan with two-car garage is a charming addition to any property providing sheltered parking and a guest house above for weekend visitors. Cedar shakes, stone, and clap board siding grace the exterior where a double garage door opens to the main level featuring a two-car garage with storage space for a total of 520 square feet of unfinished area. At the rear of the garage, a covered porch lends access to the 115 square foot entry and staircase leading to the living quarters on the second floor. Here 515 square feet of finished space offers a kitchen, full bath, laundry closet, and living/bedroom area. A rear porch office a great place for a grill. Delivering all the comforts of home in a cozy design plus a handy garage, this 2-car garage apartment plan with storage space will satisfy the needs of a broad range of buyers.
| Heated Square Feet | |
| First Floor | 115 |
| Second Floor | 515 |
| Total | 630 |
| Unheated Square Feet | |
| Garage | 520 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 22 ft. 0 in. |
| Depth | 36 ft. 0 in. |
| Approximate Height | 25 ft. 4 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 12/12 Front Gable |
| Roof Pitch | 4/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
Add flexible and functional living space and parking to your property with this charming 2-car garage apartment plan. The exterior displays striking Craftsman styling with its stone, cedar shake and clap board siding façade. A carriage-style overhead garage door opens to the 520 square foot 2-car garage with handy storage space in the rear. A door opens to the entry vestibule at the rear (which is also accessed by the rear porch) where you’ll find 115 square feet of finished space and a staircase leading to the second floor living quarters (515 square feet). Weekend guests or even your college student will be at home here. The modest apartment offers an efficient kitchen with deck, full bath, laundry closet and sleeping/living area. If you prefer finished this space as an office for a home-based business or even a recreation room. The choice is yours. Fashioned with style and designed to be flexible, this carriage house plan with storage is second to none!
