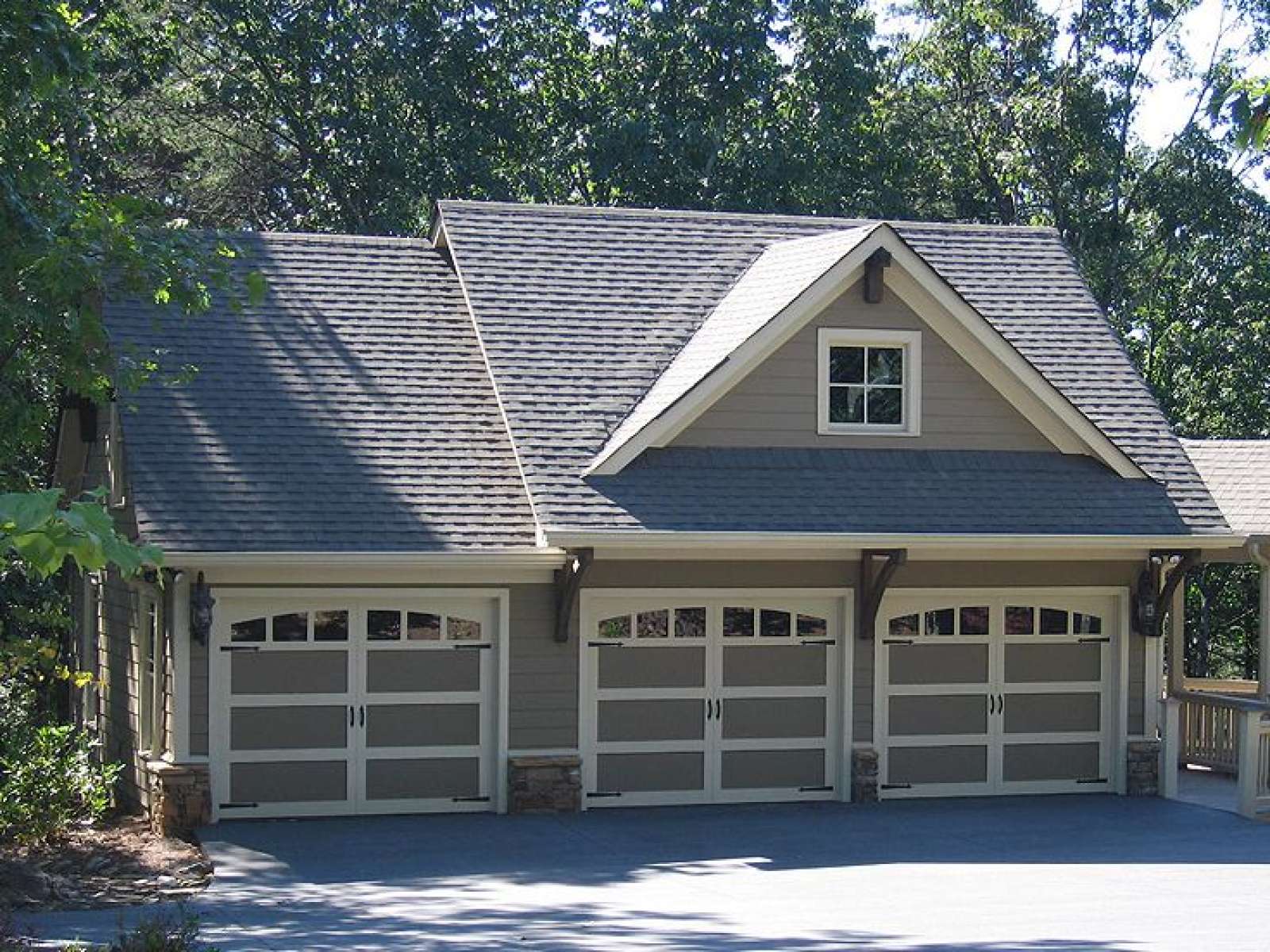

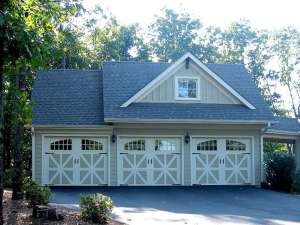

Carriage House Photo, 053G-0013
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

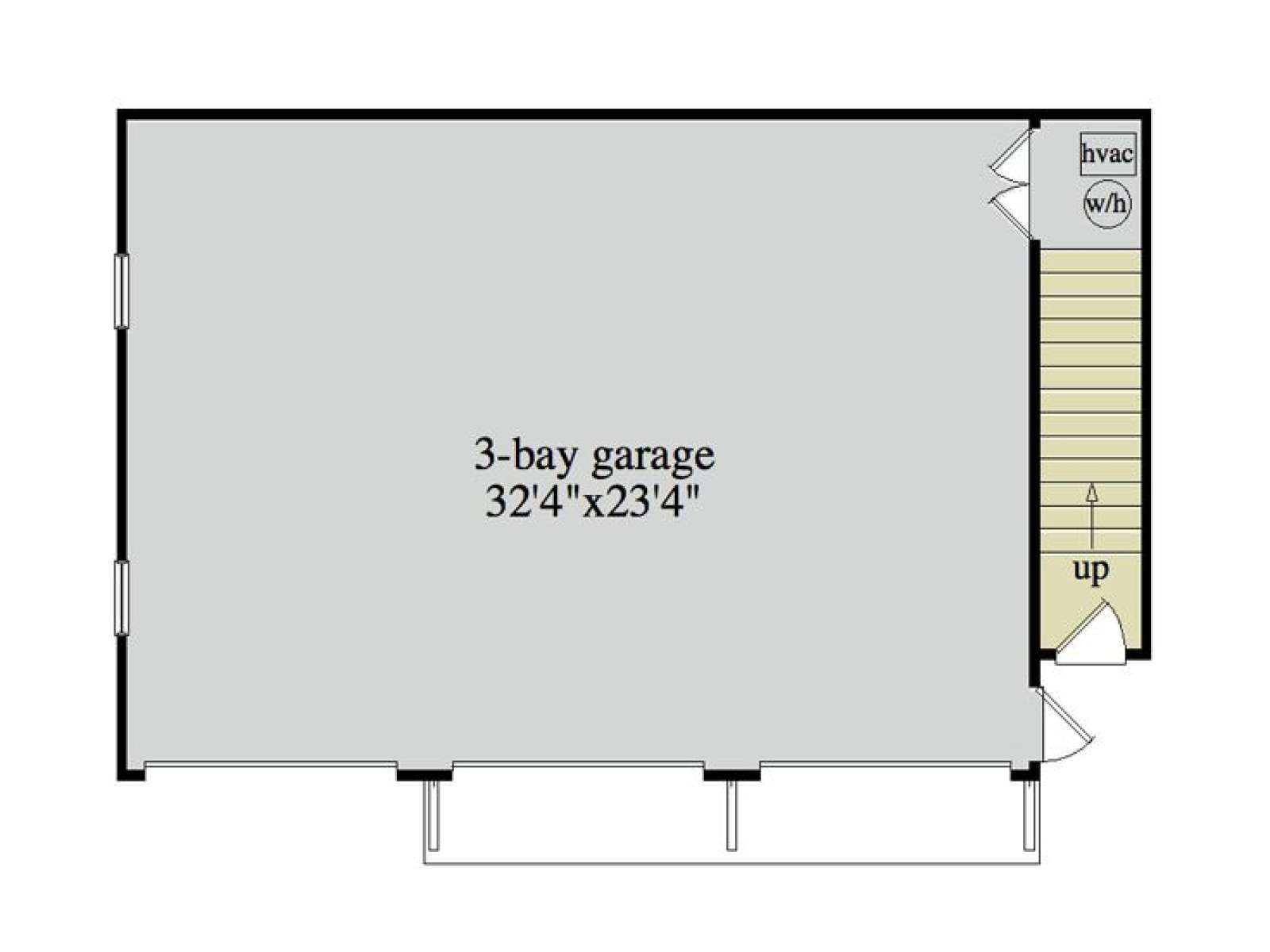

Touches of Arts and Crafts styling adorn the exterior of this charming carriage house plan with 3-car garage. On the main level, the parking area offers three overhead doors, an 8’ ceiling height and 770 square feet of parking. The triple bay garage is ideal for parking three family cars, or perhaps, store two vehicles and use the third bay for storage or a workshop. With individual overhead doors, you can tailor each bay to satisfy your specific needs. A convenient service door lends access to the garage and a separate entry directs traffic up the interior stairs and to the second floor studio apartment delivering 614 square feet of living space. Just right for weekend guests, your college student or even the nanny, the garage apartment provides comfortable living quarters with a compact kitchen, full bath, and sloped ceiling. Or, if you wish, finish the living quarters as a recreation room giving the whole family a place to kick back and relax! Thoughtfully planed for comfort and function, this garage apartment plan is sure to get your attention.
| Heated Square Feet | |
| First Floor | 65 |
| Second Floor | 614 |
| Total | 679 |
| Unheated Square Feet | |
| Garage | 770 |
| Full Bathrooms | 1 |
| Width | 37 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Approximate Height | 23 ft. 0 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 4/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|

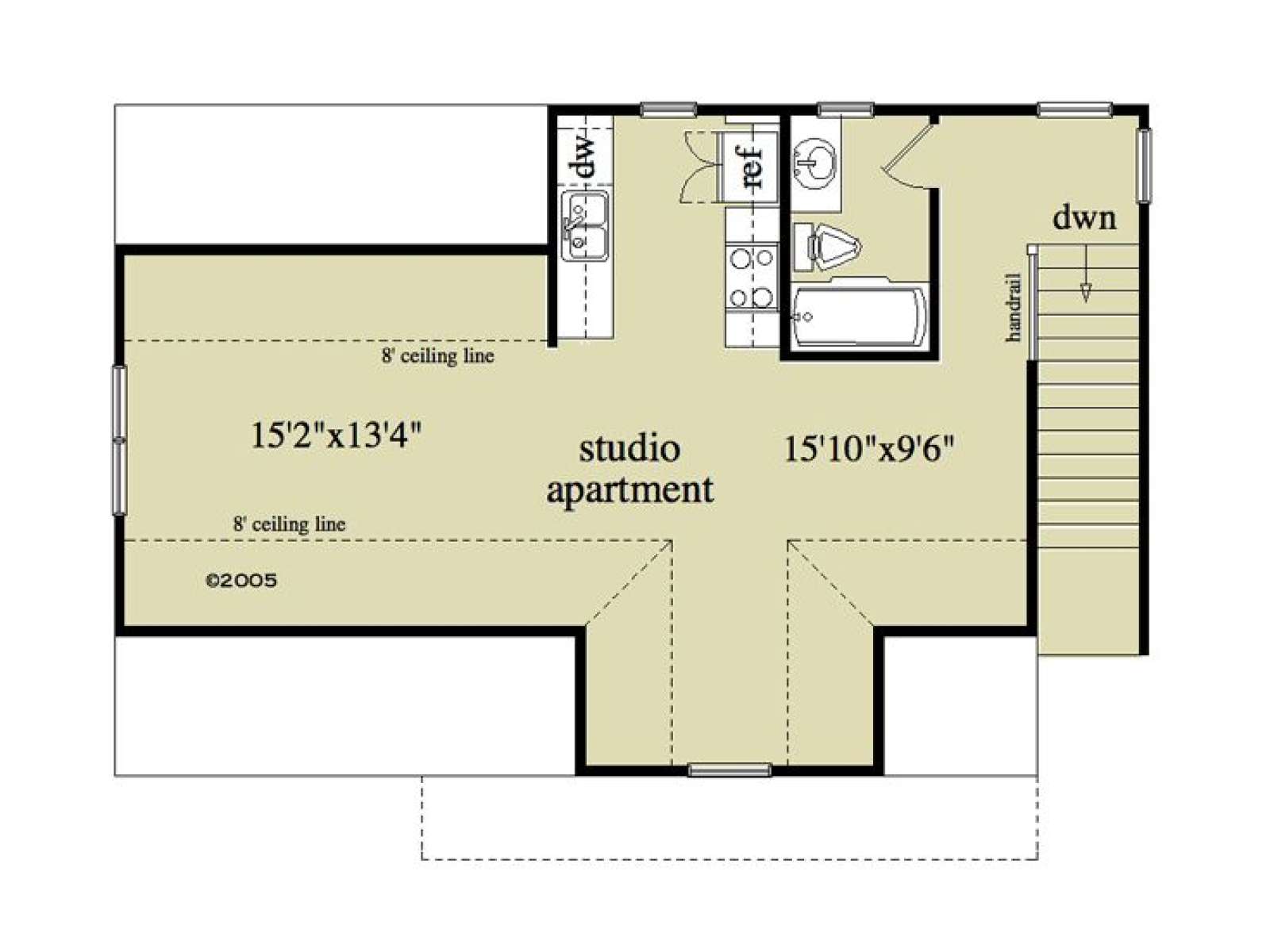

Looking for a garage apartment plan to blend with the architectural styling of your Craftsman home? This 3-car garage with living quarters above might be the one for you! Arts and Crafts flair accents the exterior lending charming street appeal. Three overhead garage doors open to 770 square feet of unfinished space, perfect for parking three automobiles, storage space for basement or attic overflow or even a workshop if you prefer. The individual garage doors allow you to use each bay for a specific purpose if you choose. Don’t miss the convenient service door lending easy access to the garage. Interior stairs point the way to the 614 square foot studio apartment on the second floor. This open floor plan works well as living quarters for a renter, overnight guests, the in-laws or even the nanny or grounds keeper. A full bath and modest kitchen are practical for such and efficient space. Or, if you wish, convert the living quarters to a game room, family room or office for a home-based business. The space is flexible enough to satisfy a variety of needs. Practical and economical, this stylish carriage house plan is a valuable addition to any home!
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $105 | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
