Carriage House Plan, 053G-0011
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

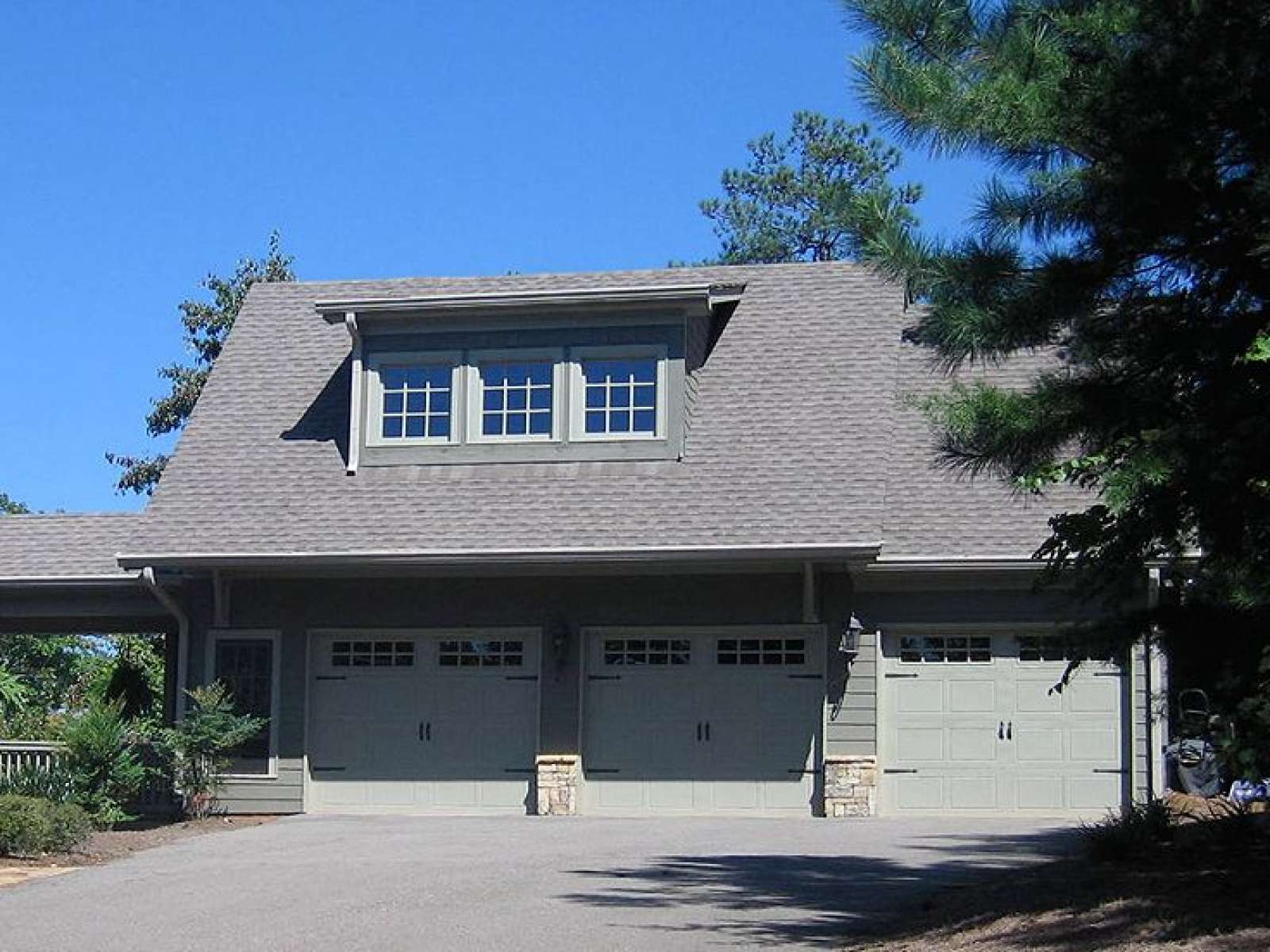

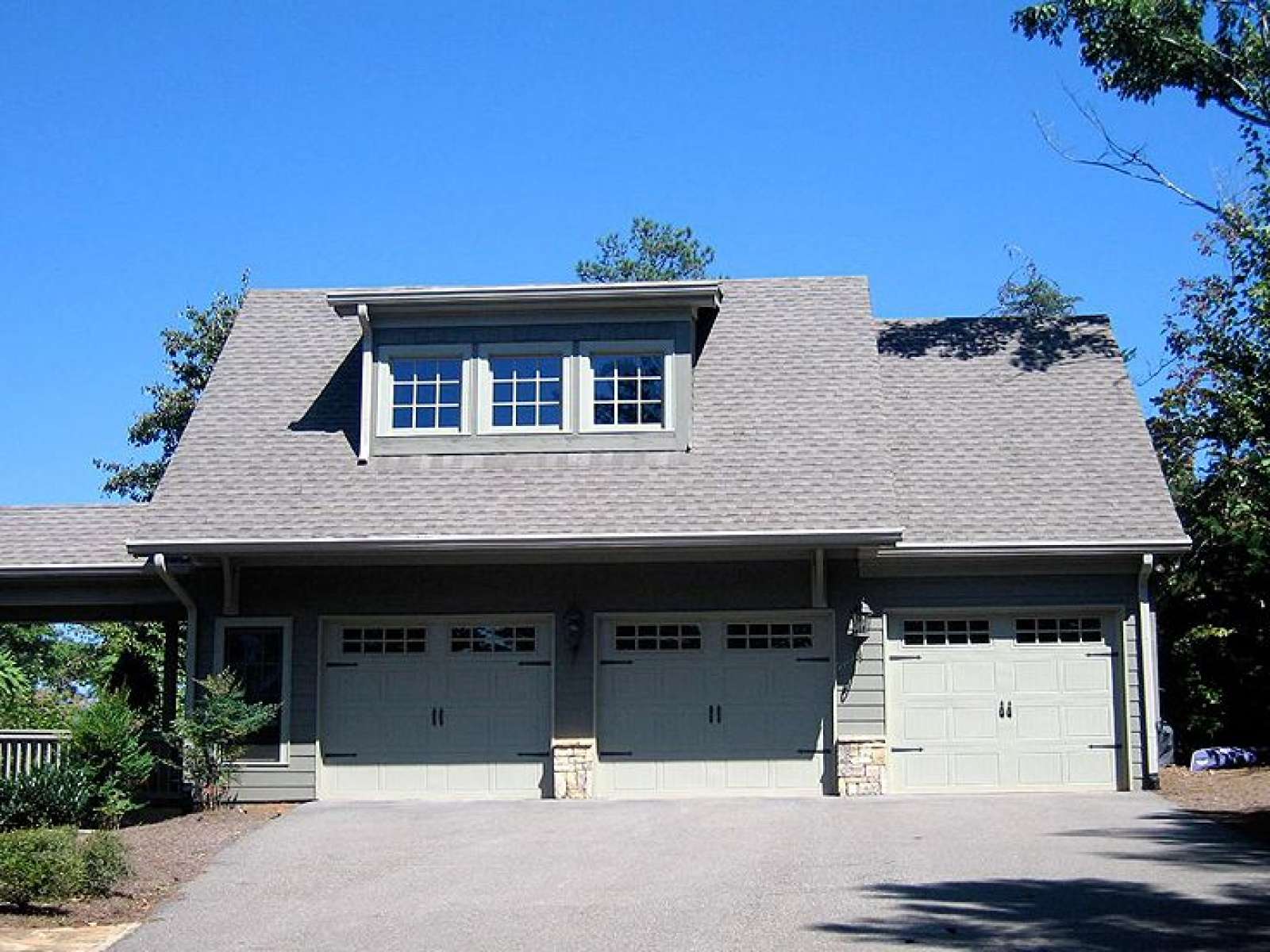

From its stone accents and carriage style garage doors to the shed dormer above, this carriage house plan shows off its Arts and Crafts style! Fashioned with living quarters situated atop a 3-car garage, this floor plan delivers flexibility and practical living. Well suited to accompany a Craftsman style home, this garage apartment plan is just right for tucking in the backyard delivering parking and a guest suite for overnight visitors. But don’t be fooled! This design is versatile enough to serve a weekend retreat, vacation home by the lake or even an alternative to a hunting cabin in the woods. The main level holds the garage offering 807 square feet of usable space and three individual parking bays, perfect for a growing family fleet or perhaps one or two cars with room to spare for storage of hunting gear, an ATV, a pair of canoes or kayaks, and other outdoor sporting equipment and gear. Interior stairs lead the way to the second floor living quarters. Here you’ll discover an open floor plan equipped with a wall of windows, a pantry and a meal-prep island providing a comfortable and functional living space. A full bath and walk-in closet are the highlights in the bedroom. Designed to appeal to a wide audience of buyers, this carriage house plan offers a splendid mix of rustic charm and practical spaces.
| Heated Square Feet | |
| Second Floor | 699 |
| Total | 699 |
| Unheated Square Feet | |
| Garage | 807 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 37 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Approximate Height | 20 ft. 5 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 4/12 Front Gable |
| Roof Pitch | 3/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|

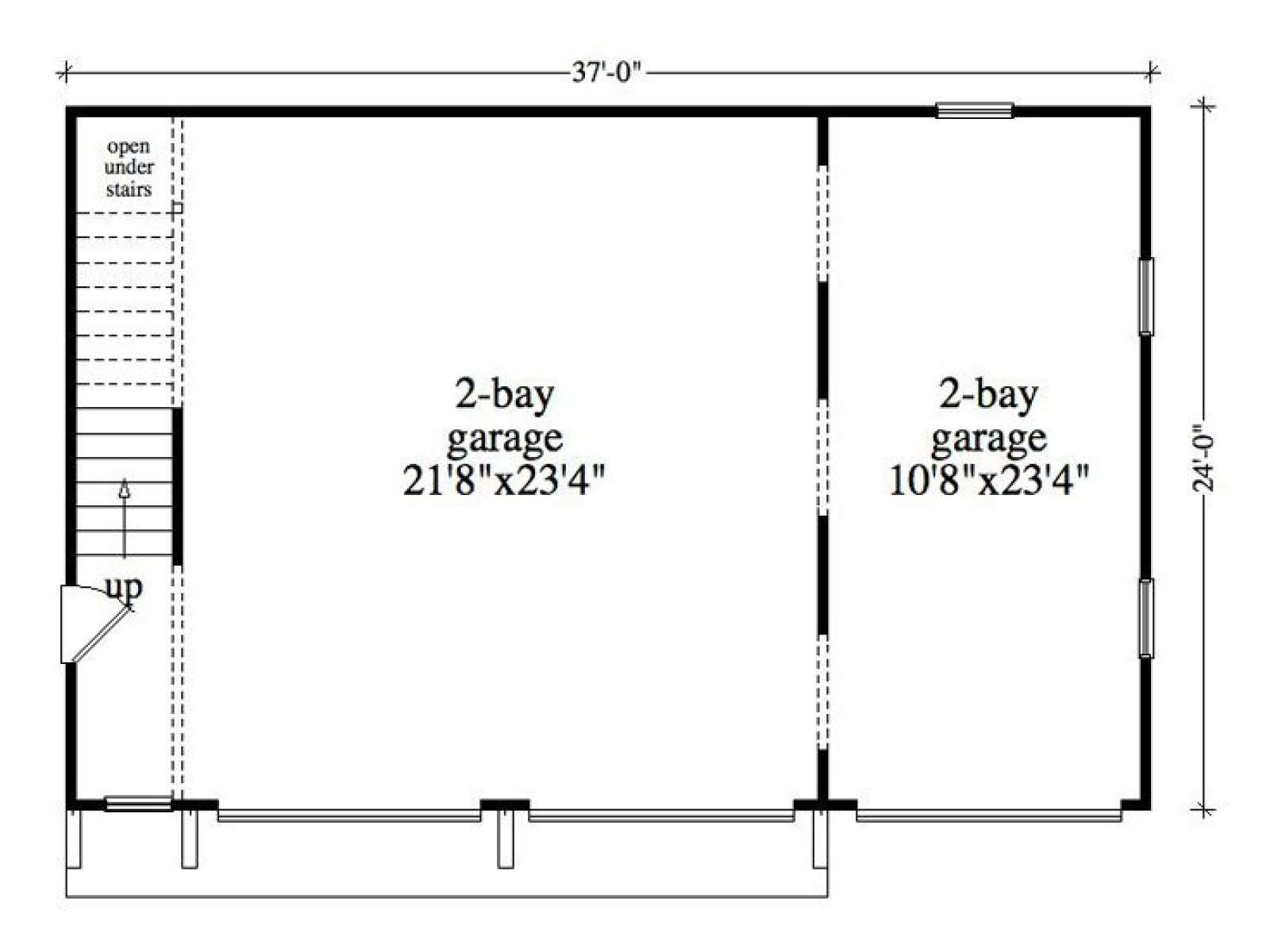

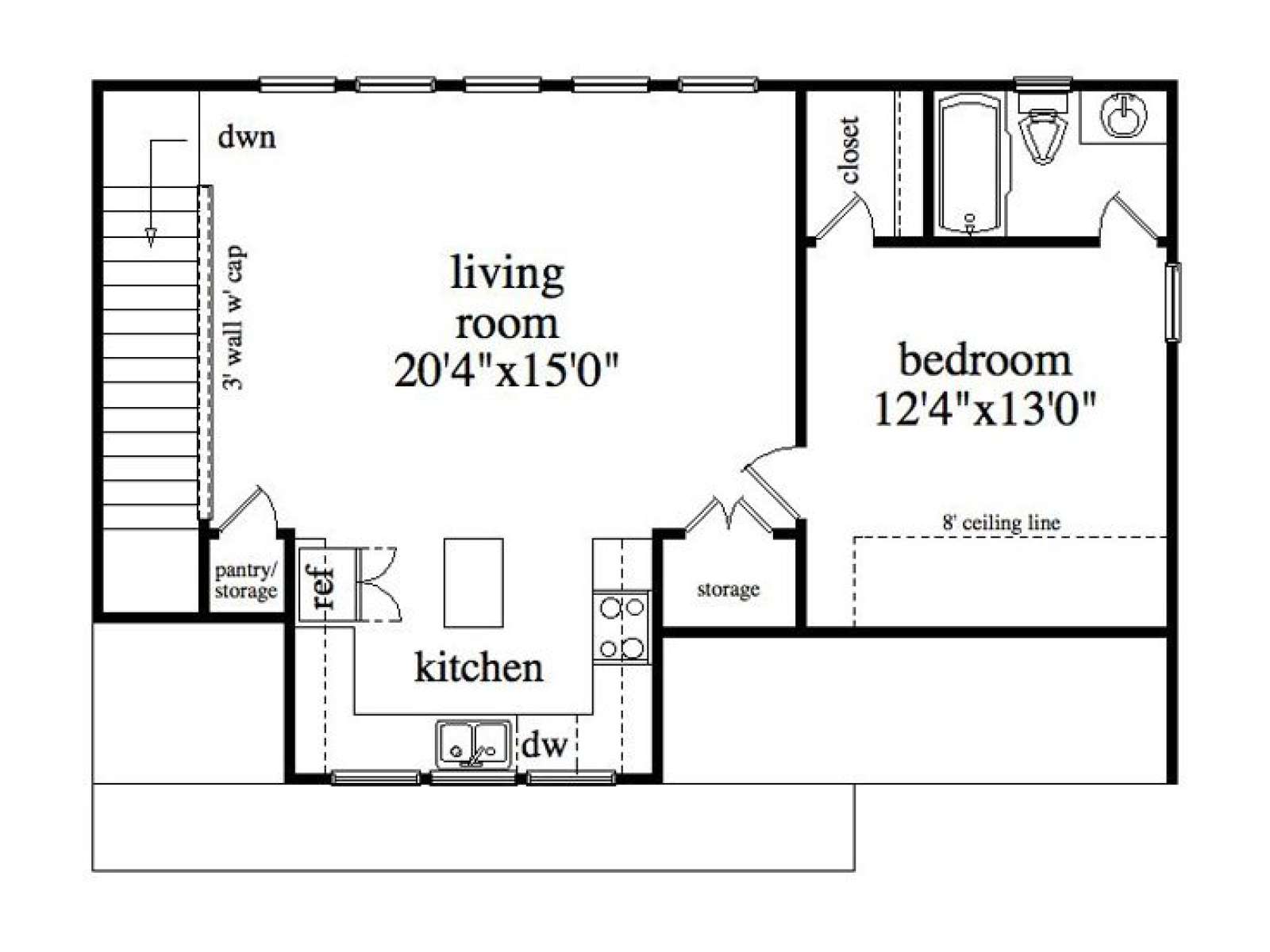

Craftsman style details like a shed dormer, carriage doors and stone accents give this garage apartment plan plenty of style and charm blending nicely with an Arts and Crafts style home. On the first level, three overhead doors open to reveal 807 square feet of unfinished parking space with a single car bay separated from the double bay offering options and flexibility. Use the single bay for a restored automobile or your favorite sports car protecting if from potential dings and scratches. Or use this space for storage of a motorcycle or ATV or even for a workshop. The choice is yours. The double bay is ideal for two family vehicles. Now look upstairs. Interior stairs lead the way to the to the second floor living quarters. Perfect for the nanny, grounds keeper, your college student or the in-laws, the garage apartment provides 699 square feet of private and comfortable living space. The step-saver kitchen features a meal-prep island and pantry as it overlooks the spacious living area brightened by a wall of windows. The bedroom boasts a walk-in closet and full bath. Don’t miss the storage closet near the kitchen. Practical and efficient, this 3-car carriage house plan with is the perfect addition to any home and offers a great alternative to a weekend residence or cabin in the woods.
