Garage Apartment Plan, 053G-0007
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

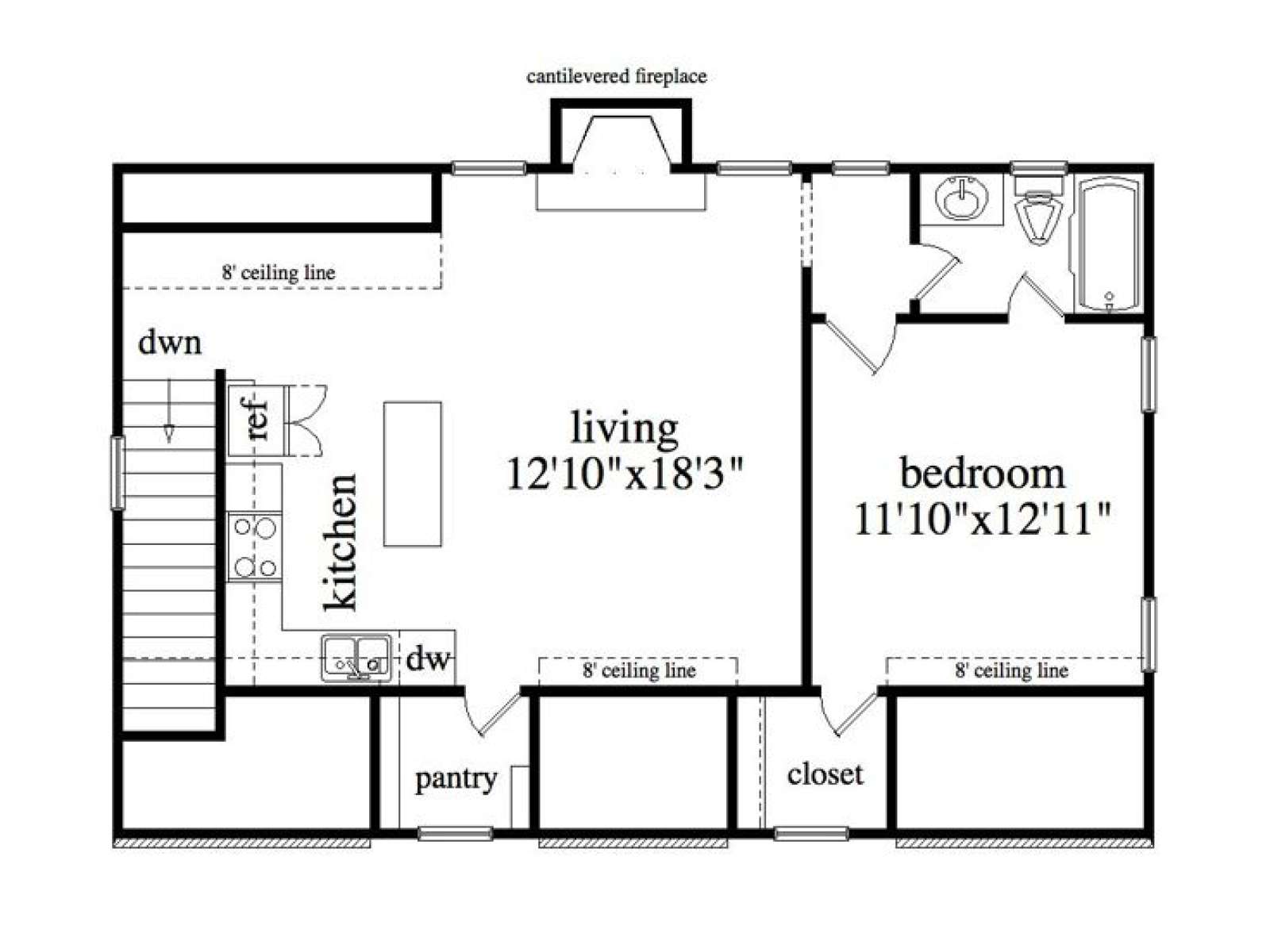

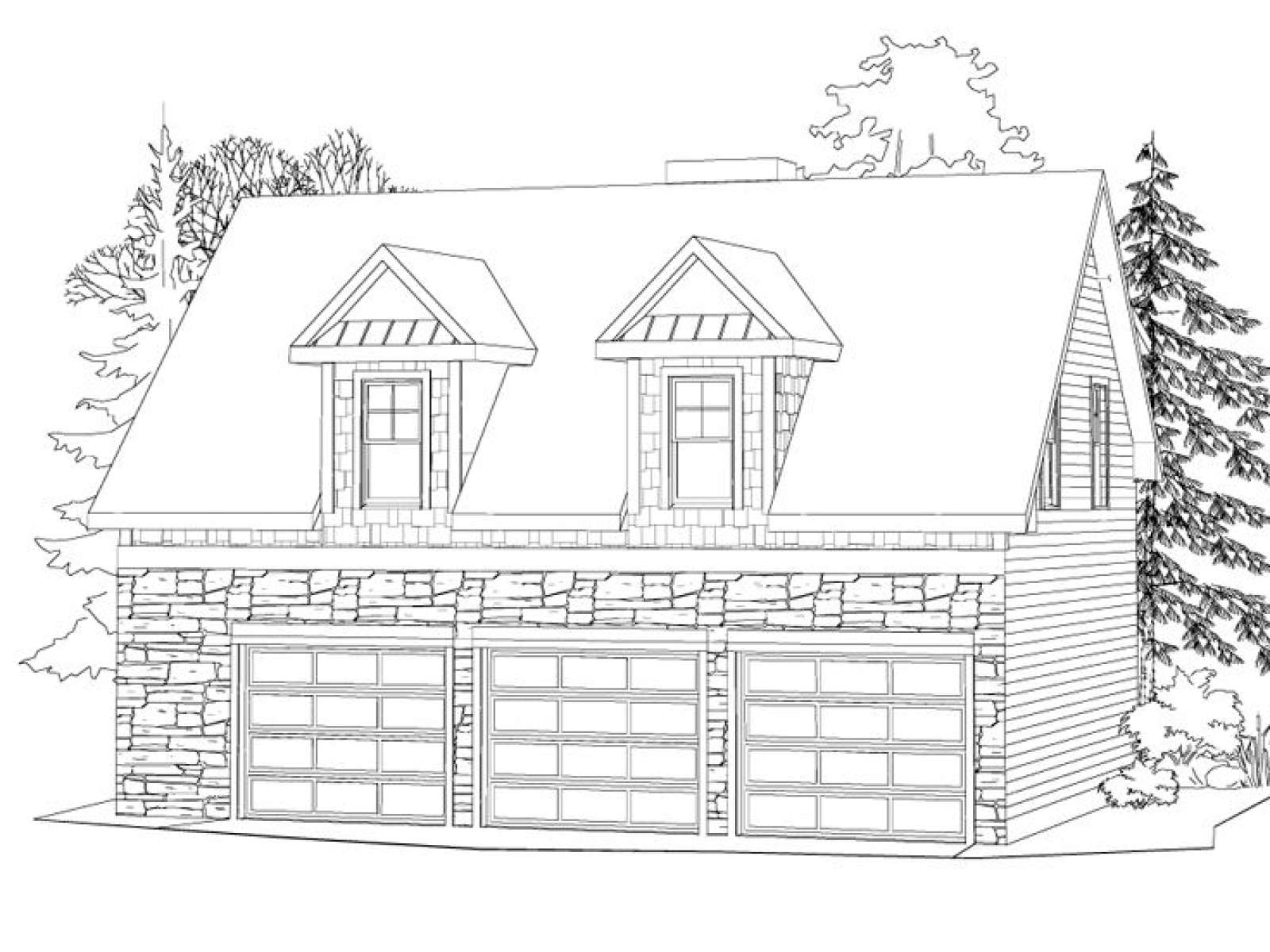

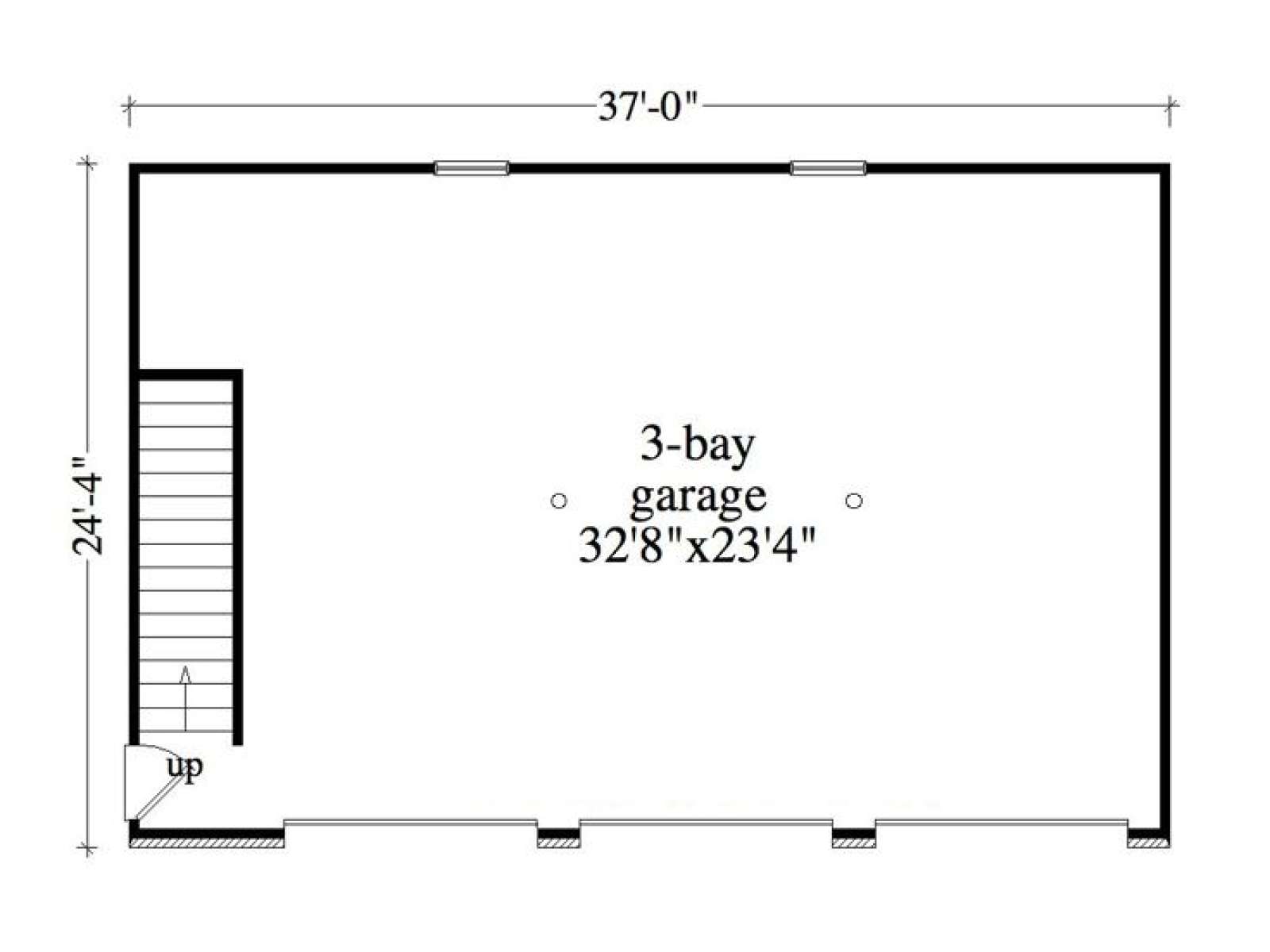

Stone and siding dress up the exterior of this 3-car carriage house plan while a pair of cheerful dormers adds extra flair. On the main level, the 830 square foot parking area is outfitted with three overhead doors and a 9’ ceiling. A convenient side-entry service door offers easy entry and exit where interior stairs lead the way to the second floor. Great for rental property or living quarters for the nanny, the apartment affords all the comforts of home in modest fashion. An open floor plan features the island kitchen connecting with the hearth-warmed living room, great for entertaining and day-to-day living. A roomy pantry delivers plenty of storage space. Semi-private bath access and a walk-in closet are the highlights of the generously sized bedroom. Designed to accommodate a broad range of needs, this 3-car garage apartment plan is sure to get your attention.
| Heated Square Feet | |
| Second Floor | 733 |
| Total | 733 |
| Unheated Square Feet | |
| Garage | 830 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 37 ft. 0 in. |
| Depth | 24 ft. 4 in. |
| Approximate Height | 25 ft. 4 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Special Features |
|
Need a 3-car garage apartment to complement your Craftsman style home? This Arts and Crafts flavor design is just the one for you. Three overhead doors enhance the stone and siding façade and open to the 830 square foot parking area. A pair of windows provides light from the rear and a side-entry service door lends easy access to the stairs leading to the second floor living quarters. Open and spacious, the living areas are quite flexible and accommodating. The kitchen overlooks the hearth warmed living room and offers a meal-prep island and large walk-in pantry. Semi-private bath access and a walk-in closet are the highlights of the bedroom. Add living space to your home for guests or your college student and parking for yourself with this stylish carriage house plan.
