Carriage House Plan, 053G-0005
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

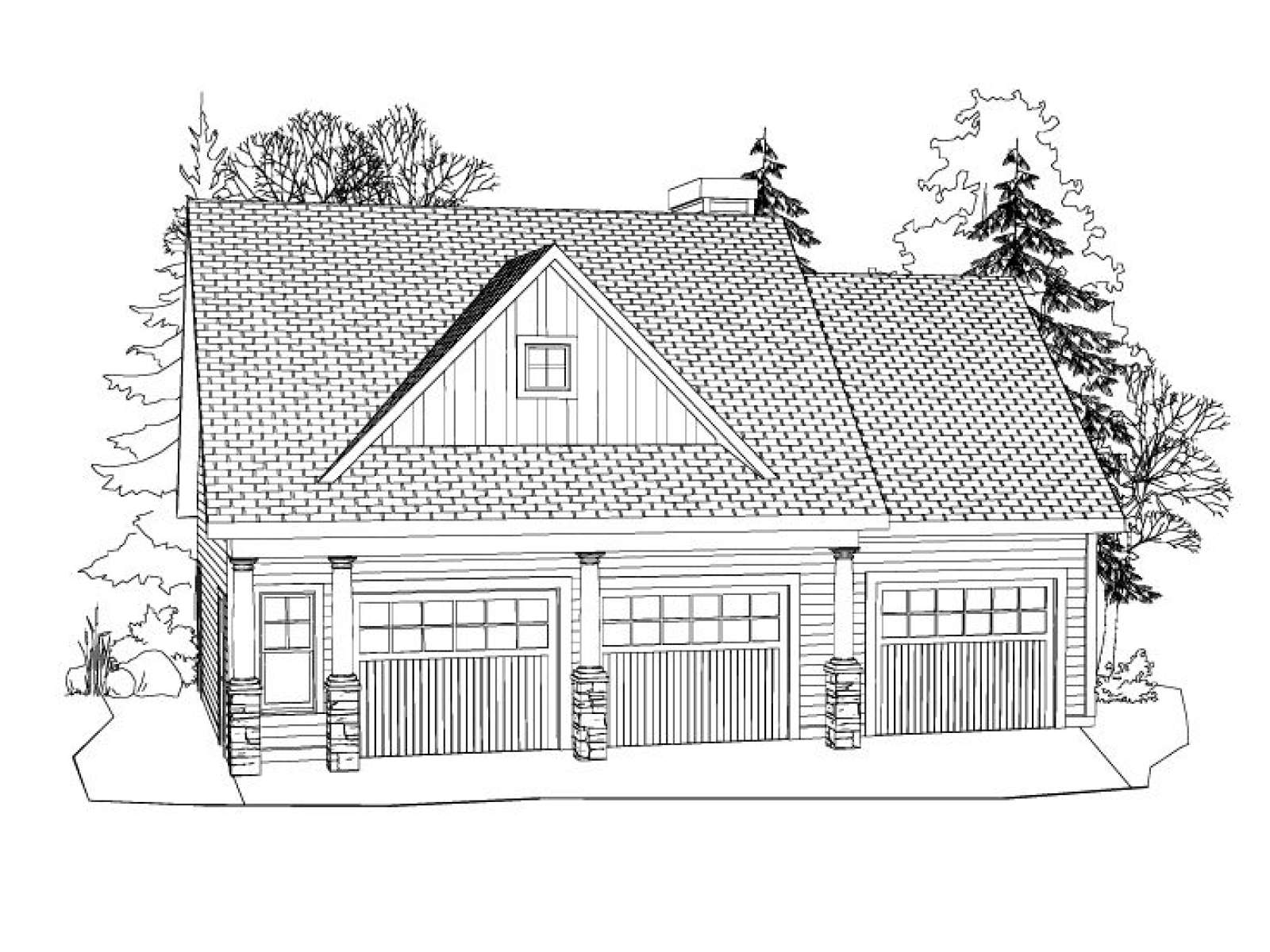

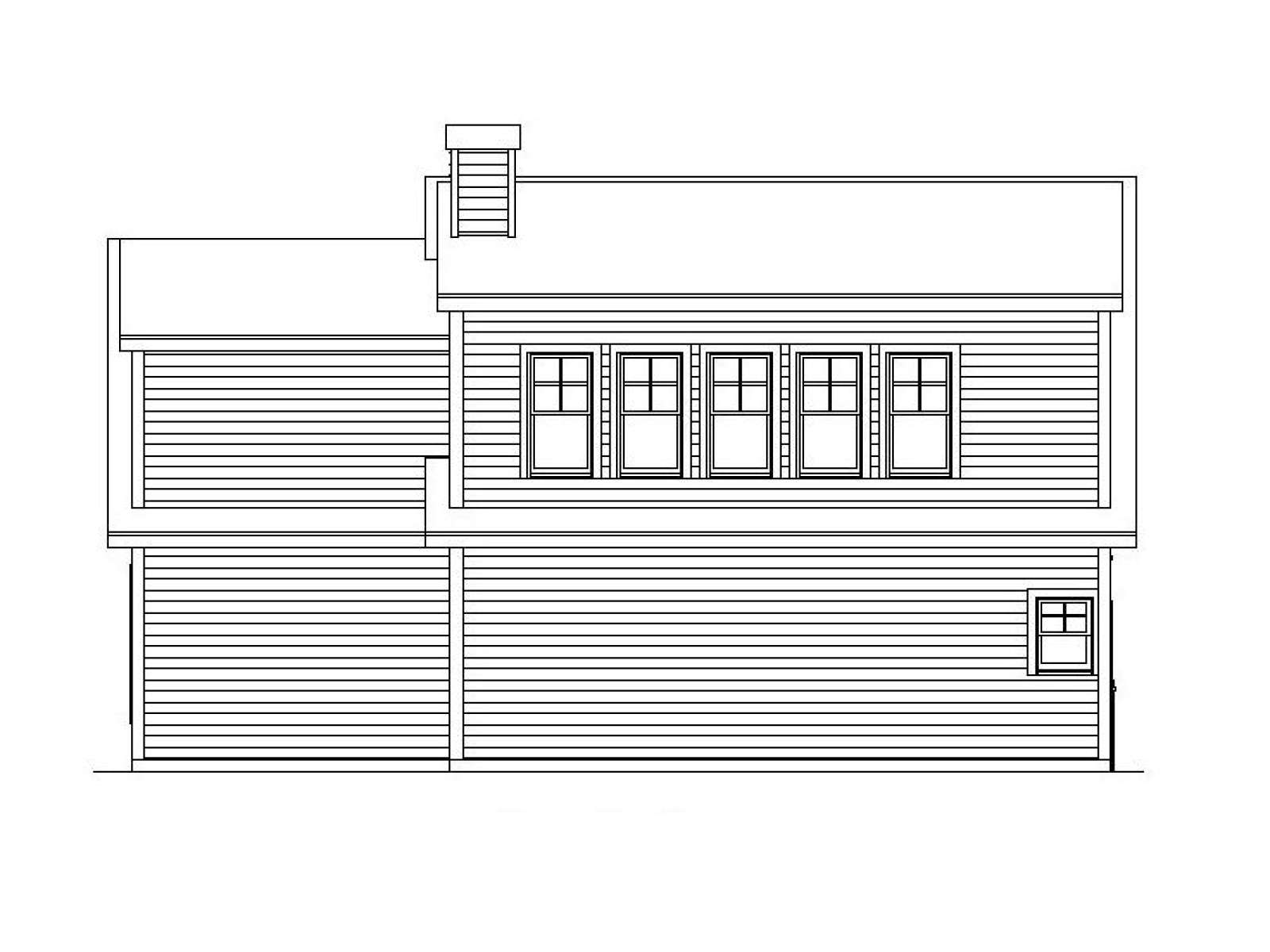

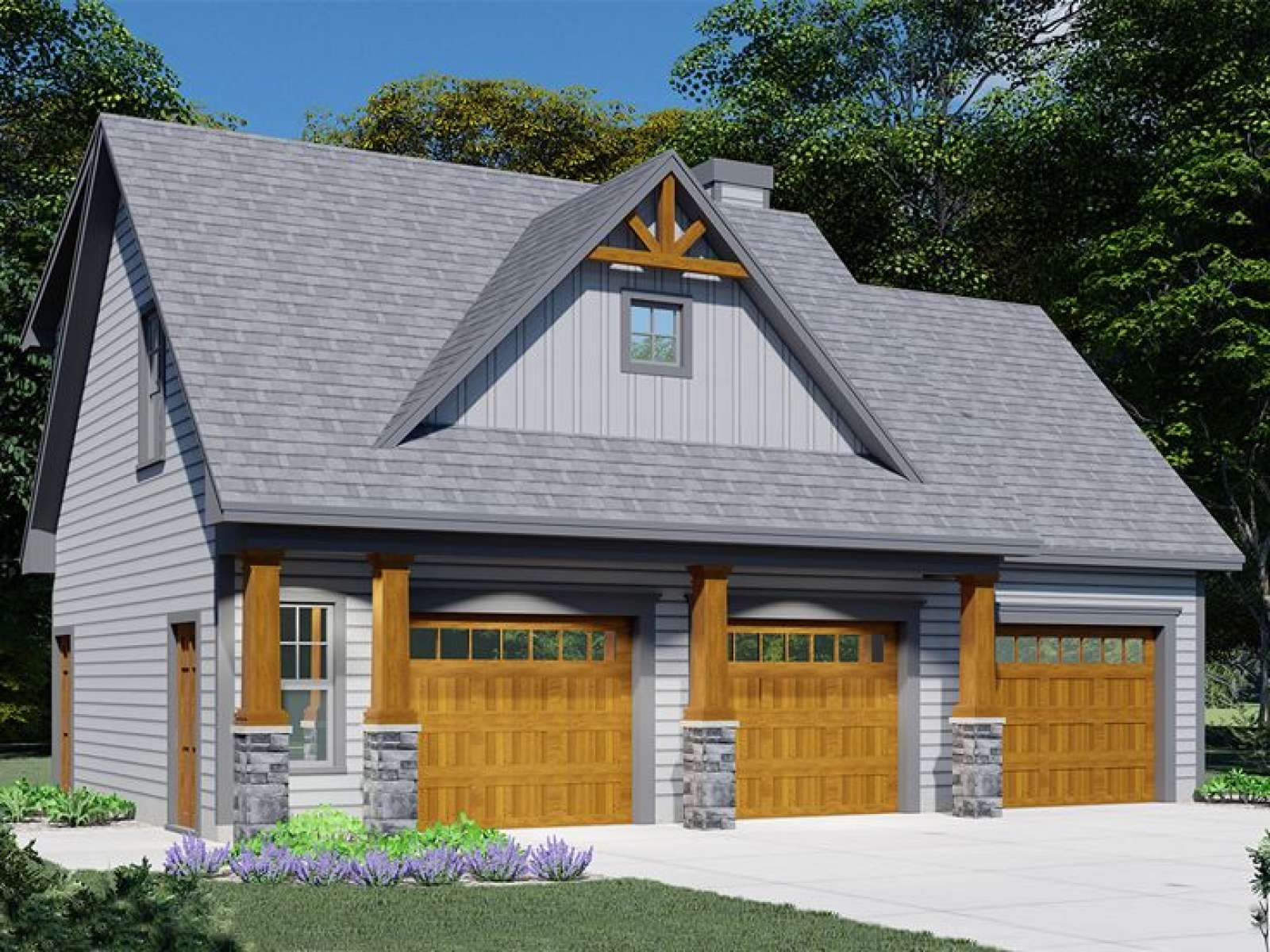

Touches of Arts and Crafts styling highlight the exterior of this carriage house plan allowing it to blend nicely with your Craftsman style home. Three overhead doors open to 924 square feet of parking space, perfect for three automobiles, two cars and a workshop or two cars and storage for the lawn mower, bikes and more! Don’t miss the utility sink. Private interior stairs lead the way to the second floor living quarters. Here, modest accommodations are perfect for your college student or a weekend guest. Windows span across the rear wall of the living space filling the gathering areas with natural light. A snack bar and pantry are thoughtful extras in the kitchen while a fireplace is the main attraction in the living room. A comfortable bedroom enjoys a large closet and semi-private bath access. Add value and functionality to your home with this delightful 3-car garage apartment plan.
| Heated Square Feet | |
| First Floor | 796 |
| Total | 796 |
| Unheated Square Feet | |
| Garage | 942 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 40 ft. 0 in. |
| Depth | 24 ft. 0 in. |
| Approximate Height | 24 ft. 1 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 4/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
| Special Features |
|

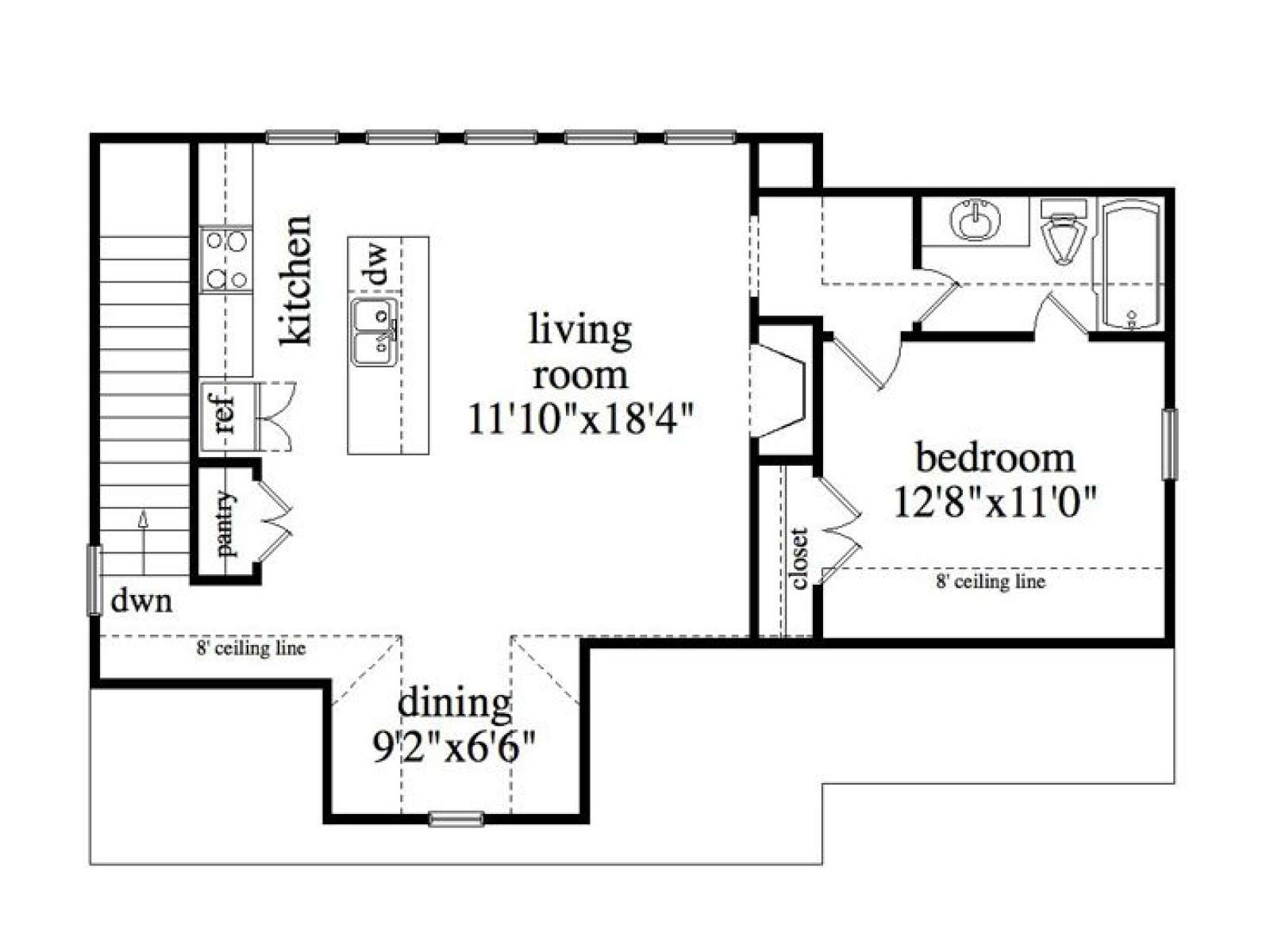

The perfect complement to any Craftsman style home, this 3-car garage apartment plan offers the extra parking you need plus a handy living space that is flexible enough to satisfy a variety of needs. Stylish columns atop stone pediments highlight the siding façade, while three overhead doors open to the 924 square foot garage. A wall separates two bays from the third making it easy to use all three for parking or use the third one for a workshop or storage space. The vaulted ceiling and utility sink are added bonuses in the single bay. Two service doors lend access to the garage, and one connects with the interior stairs leading to the second floor living quarters. Windows line in procession filling the kitchen, dining area and living room with cheerful sunshine. You’ll appreciate the island snack bar, pantry, and fireplace. A comfortable bedroom offers a closet and semi-private bath access. Perfect for guests, the nanny or use as an entertainment space, the living quarters deliver functionality and flexibility. A valuable addition to any home, this carriage house plan can’t be beat!
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $105 | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
