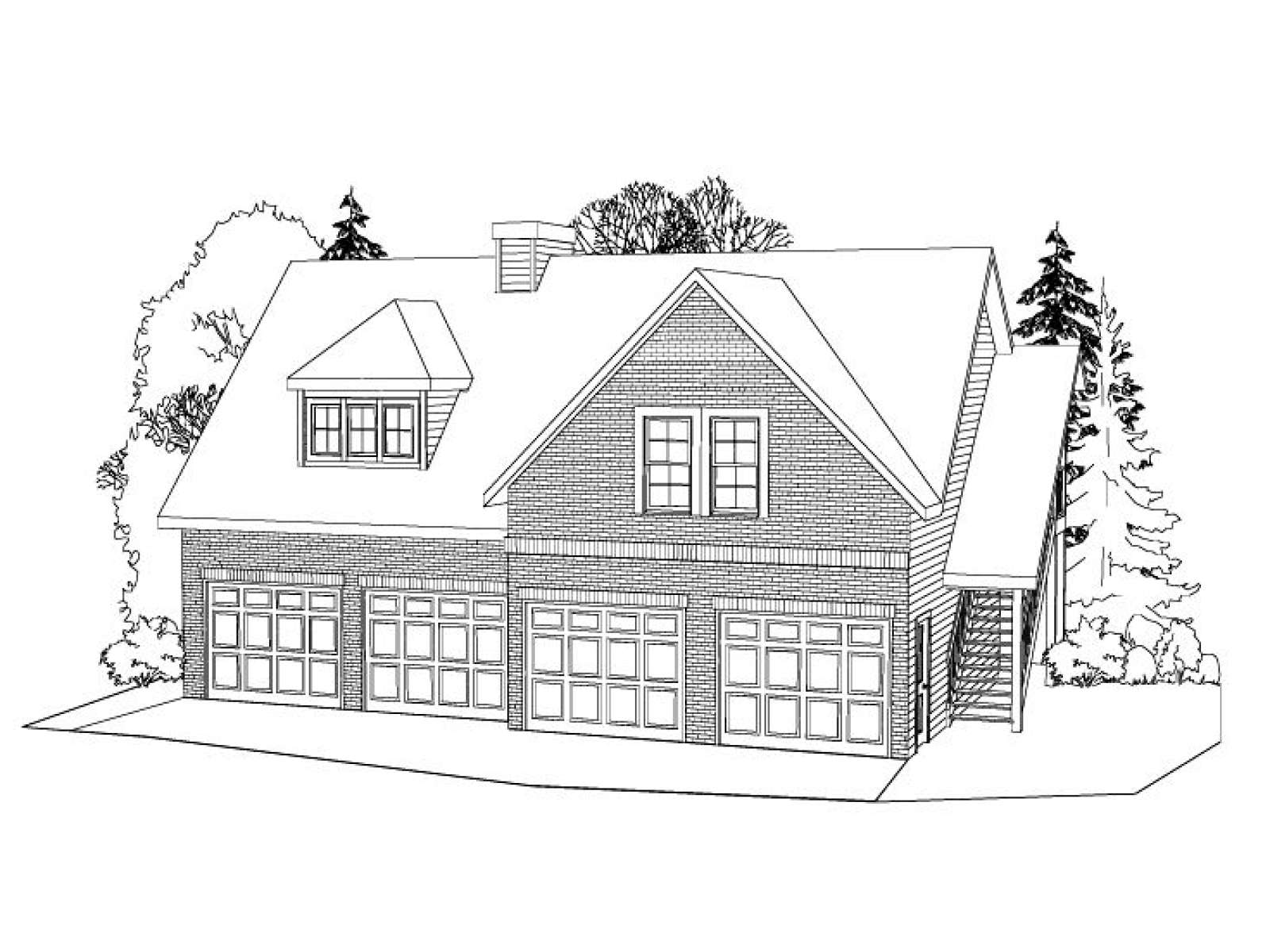

Garage Apartment Plan, 053G-0001
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

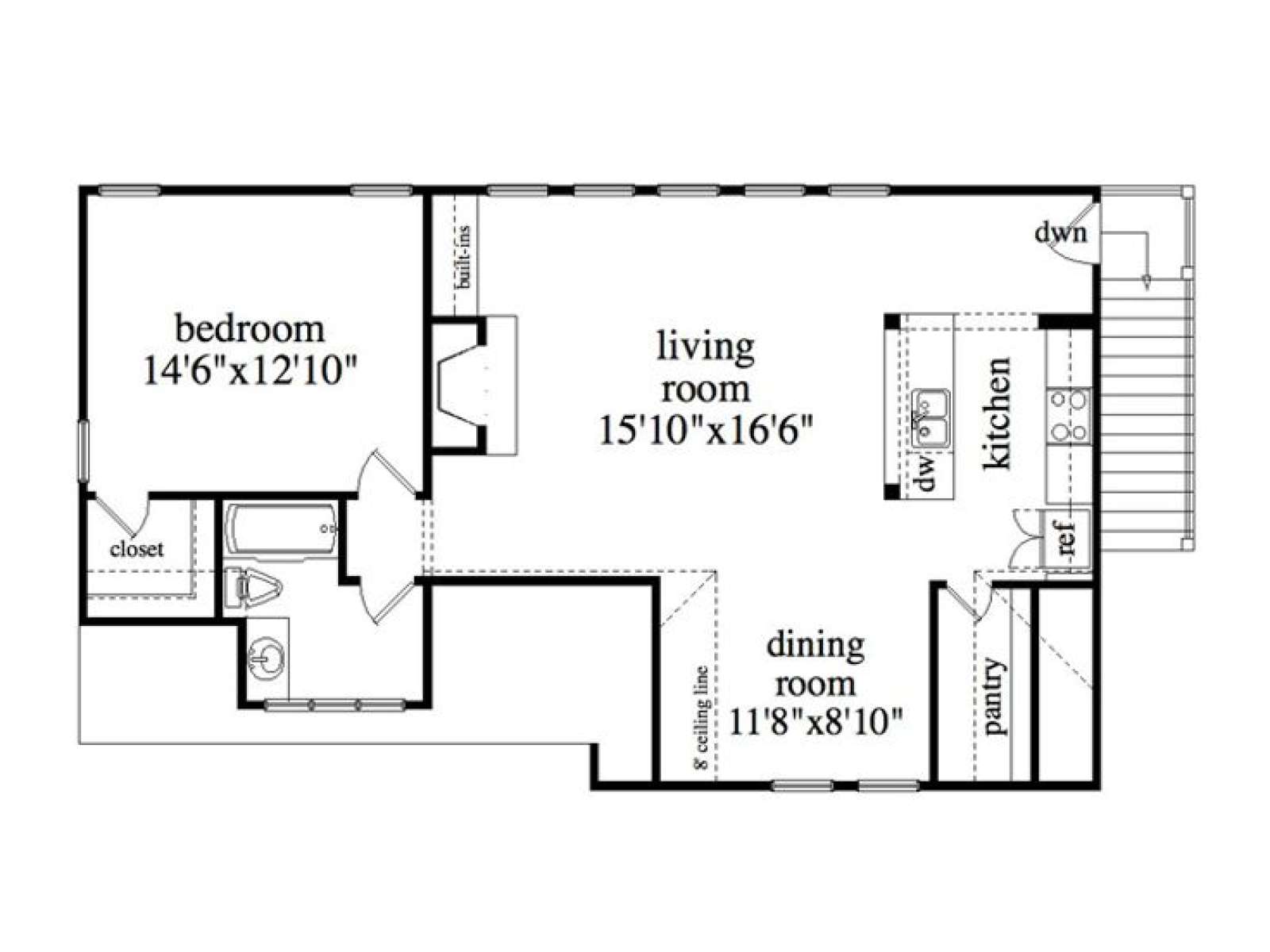

Are you in need of a large garage but can’t quite afford it on your own? Consider this charming carriage house plan. Use the four-car garage for personal needs and rent out the upper level earning income to help you pay off your new garage. The main level delivers two, 2-car garages (1065 square feet) connected by dual pass-thrus. Maybe you have several automobiles and need all four stalls for parking. Notice the two bays on the right are a slightly deeper than those on the left, just right for oversized vehicles. Or perhaps a workshop or storage area is what you really need. Use two bays for parking and the other two stalls to accommodate your needs, ideal for a workbench and crafting or storing ATVs, motorcycles, canoes, kayaks, etc. Now follow the exterior stairs to the second-floor apartment. Your tenants will be pleased with the comfortable living spaces. The galley-style kitchen overlooks the sunny dining room and spacious living room, where a fireplace offers cozy warmth. The open floor plan is flexible and quite accommodating. A sizable bedroom features a walk-in closet and nearby bath access. Special extras here include built-ins, a walk-in pantry and a wall of windows capturing rear views. Perfect for parking, storage and rental property, this 4-car garage apartment plan will add value to any home.
| Heated Square Feet | |
| Second Floor | 948 |
| Total | 948 |
| Unheated Square Feet | |
| Garage | 1065 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 48 ft. 0 in. |
| Depth | 26 ft. 0 in. |
| Approximate Height | 26 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 9/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Special Features |
|
Car enthusiasts and large or growing families will discover this 4-car garage apartment plan is the perfect solution to parking and living needs. The main level holds two, double bay garages offering 1065 square feet of parking, and they are connected by two pass-thrus. The double bay garage on the right is slightly deeper than the one on the left offering a little more space for oversized vehicles. If you have a growing family fleet, this design will give everyone a place to park. Or perhaps you’ll prefer to use one section of the garage for a workshop or storage space. The choice is yours. Exterior stairs lead the way to the upper level apartment. The living quarters are quite accommodating providing a compact kitchen overlooking the comfortable living room, a large pantry, sunny dining areas and generously sized bedroom with nearby bath. Notice the wall of windows lining the living room delivering wonderful views, the walk-in closet in the bedroom, and the fireplace accented with organizational built-ins. Use this space for your college student, the in-laws, or guest quarters. Better yet, it is an ideal rental property allowing you to earn income to pay off your much needed garage. The private apartment entry ensures tenants will not have access to anything you store in the garage. Stylish and functional, this carriage house plan is sure to complement any home.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $105 | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
