Carriage House Plan, 035G-0009
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

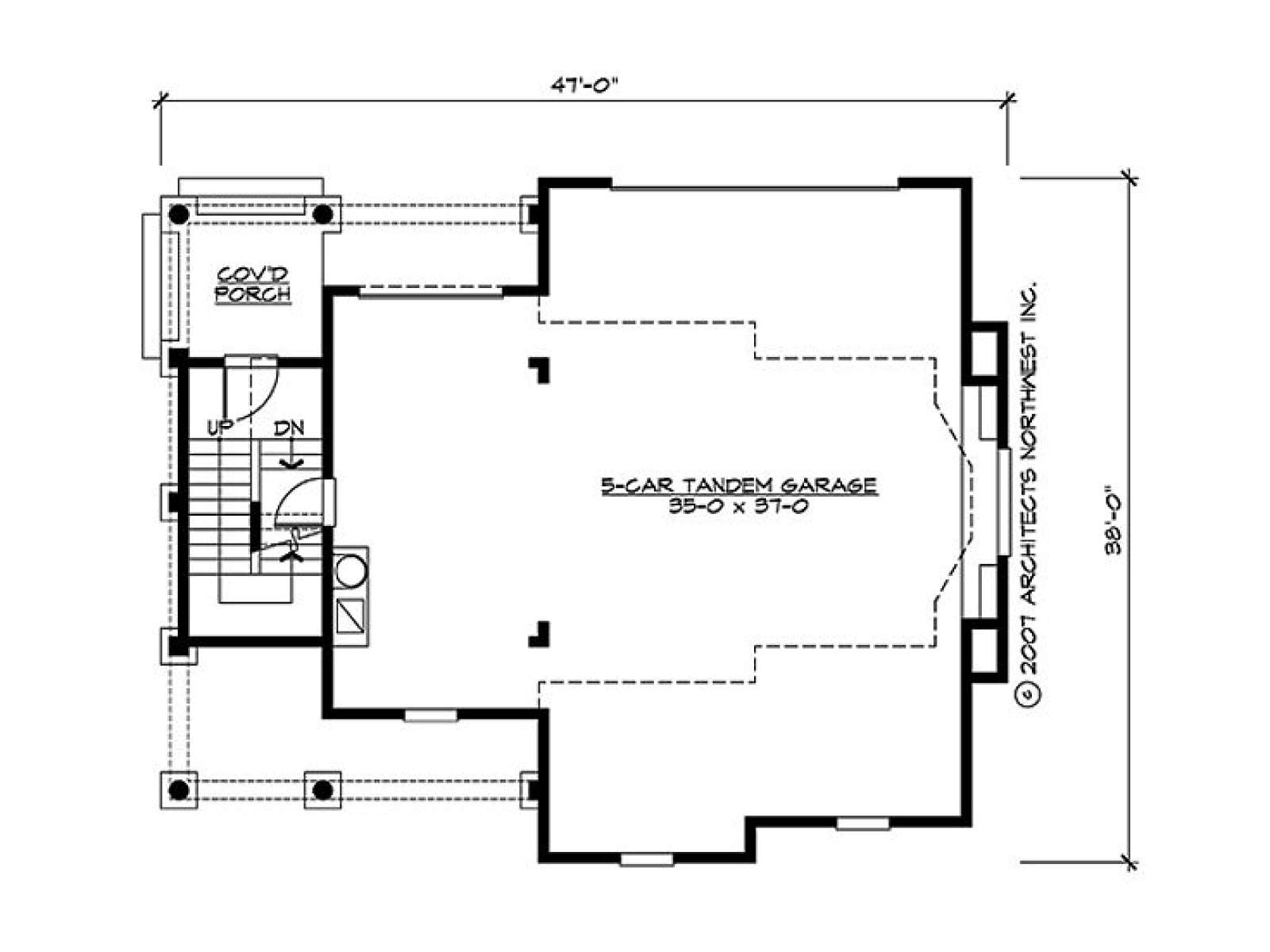

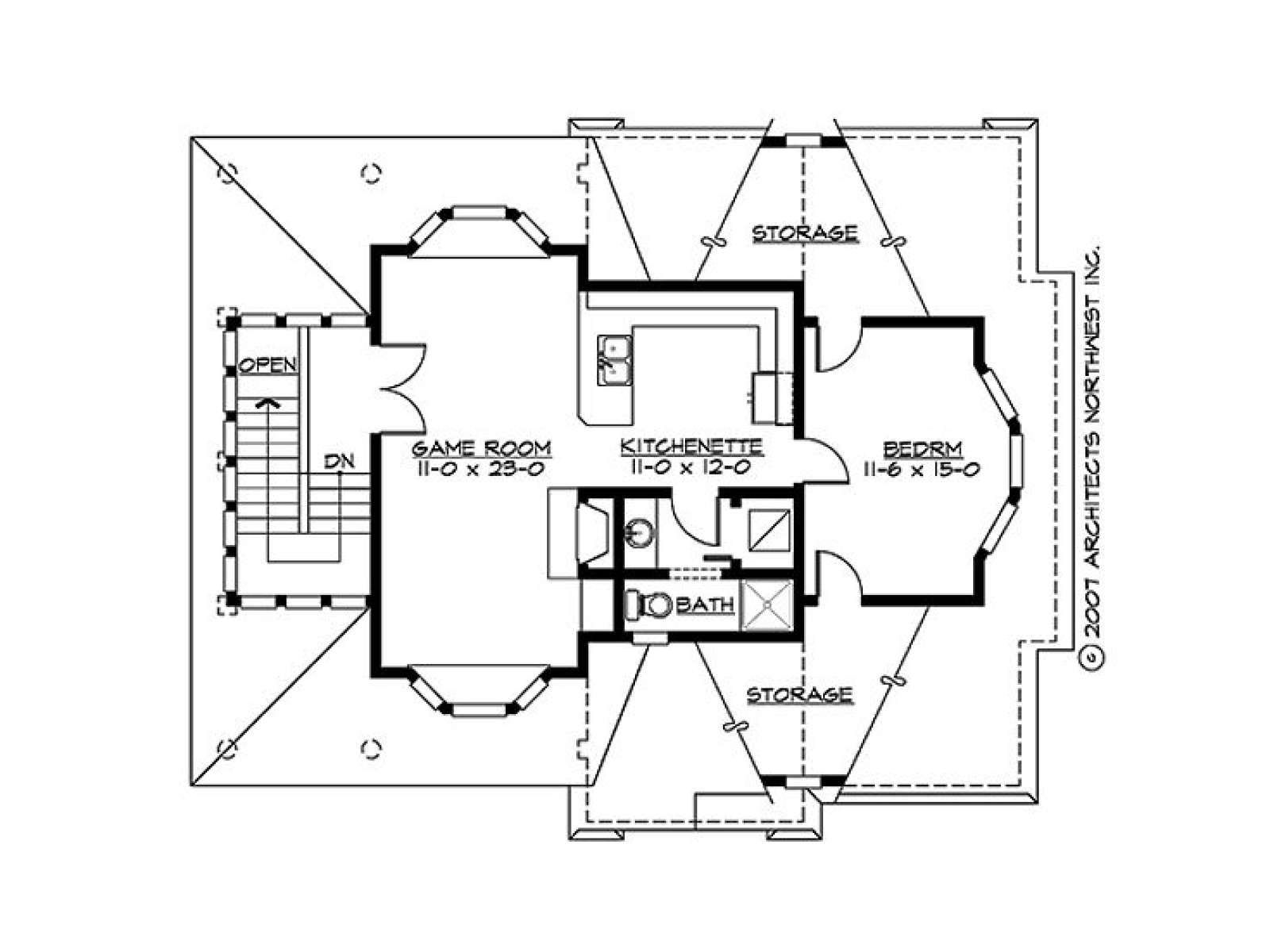

Here is a carriage house plan that sports Old World charm while delivering modern day function. The neatly detailed exterior is sure to dress up any backyard while the interior delivers the practicality you are looking for in a garage. The main level holds a 1215 square foot, five-car garage designed with two tandem bays and one single bay. Ideal for the growing family fleet, you’ll have plenty of sheltered parking. Or perhaps you need a place to store your boat and other motorized vehicles and water toys. This spacious garage is the answer. And for your frequent overnight guests, the second floor apartment provides outstanding accommodations and an entertainment space. Interior stairs ascend to the second floor where you will find a sunlit game/family room featuring bayed windows at opposing ends and a cracking fireplace. The efficient U-shaped kitchen teams up with this space creating and open, airy feel. A full bath, large bedroom and ample attic storage polish off this neatly designed garage apartment plan with boat storage.
| Heated Square Feet | |
| First Floor | 130 |
| Second Floor | 695 |
| Total | 825 |
| Unheated Square Feet | |
| Garage | 1215 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 47 ft. 0 in. |
| Depth | 38 ft. 0 in. |
| Approximate Height | 31 ft. 11 in. |
| Ceiling Height | |
| First Floor | 8 ft. 5 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 16x8 |
| Garage Door Size(s) | 8x8 |
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|

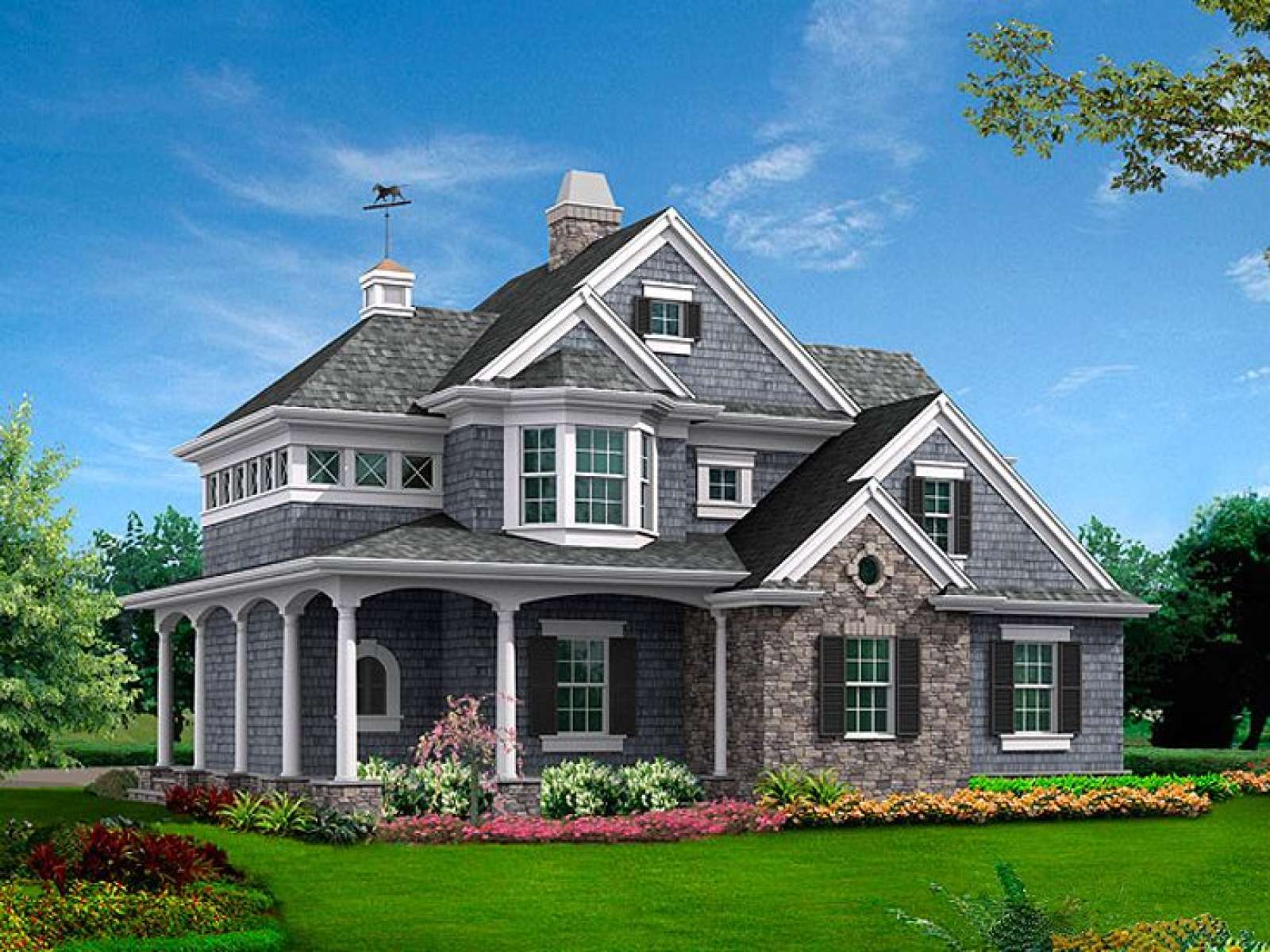

Take a look at this ornate garage apartment plan. If you like Victorian style, this five-car tandem garage with boat storage is sure to get your attention. Stylish porch columns and shuttered windows are just a few of the details highlighting the exterior of this design. The main level (1215 square feet) holds two tandem bays and a single-car bay easily accommodating five vehicles or perhaps a couple of vehicles and a boat. A covered porch points the way to the private interior stairs leading to the second level. Here a large game/living room boasts two bayed windows filling the space with natural light and a cozy fireplace. The step-saver kitchen overlooks the gathering space keeping everyone involved in conversation. A full bath and sunlit bedroom polish off the living spaces. Pay attention to all the attic storage, great for stashing boxes and seasonal items. A masterful blend of fashion and function, this carriage house plan will look great tucked in the backyard behind your Victorian style home.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | n/a | n/a | n/a | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
