Carriage House Plan, 034G-0011
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

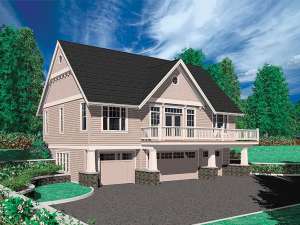

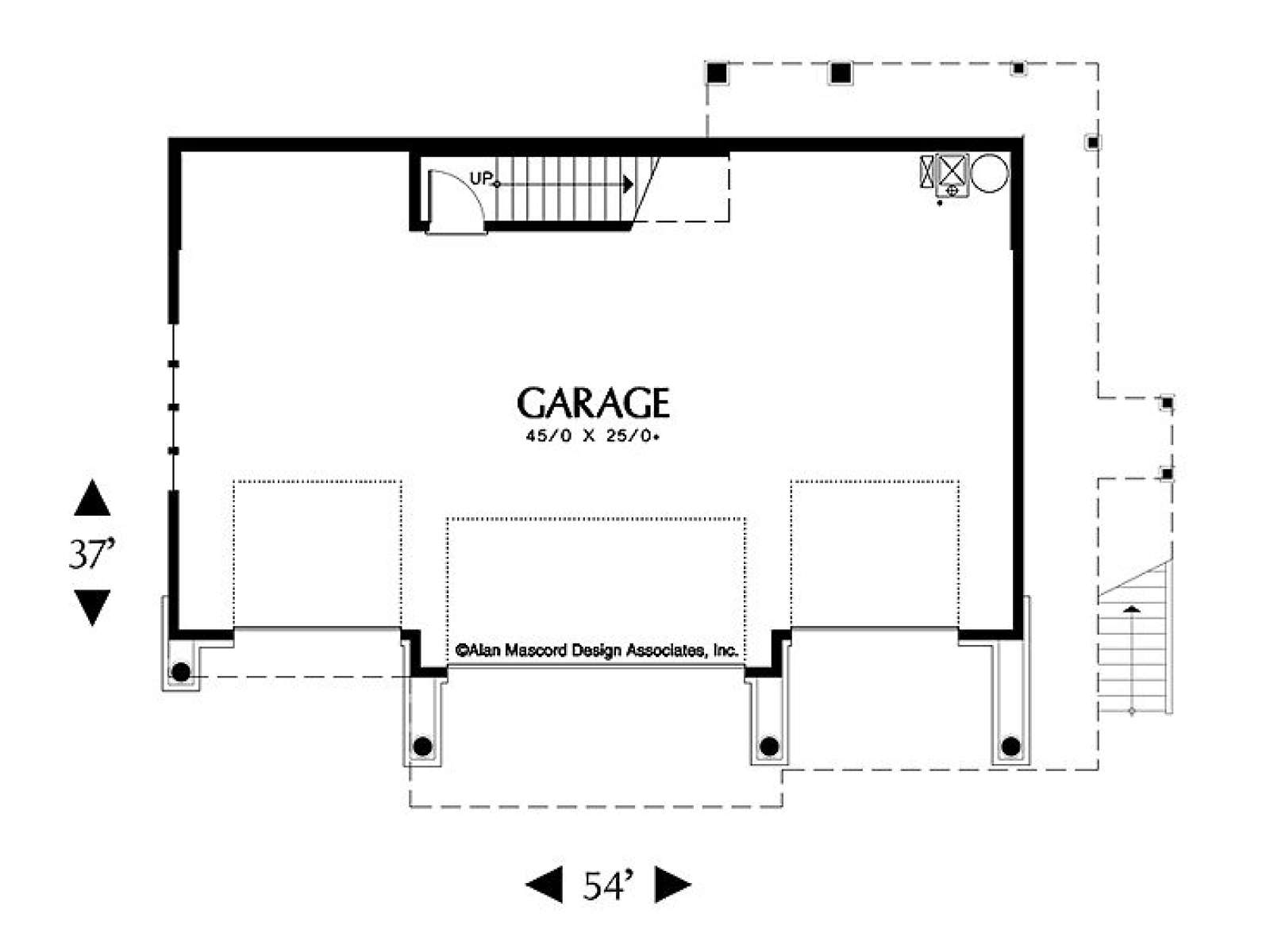

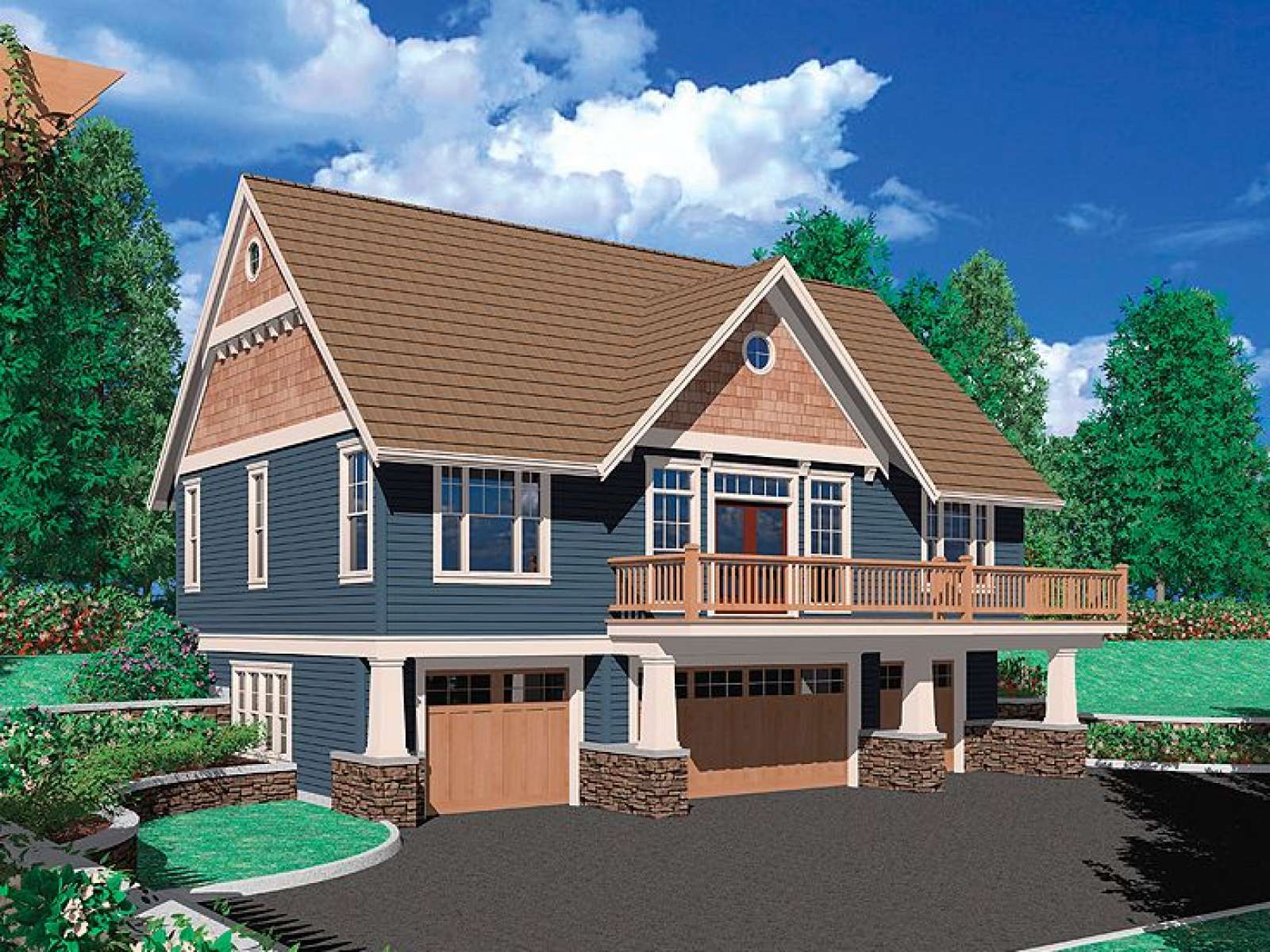

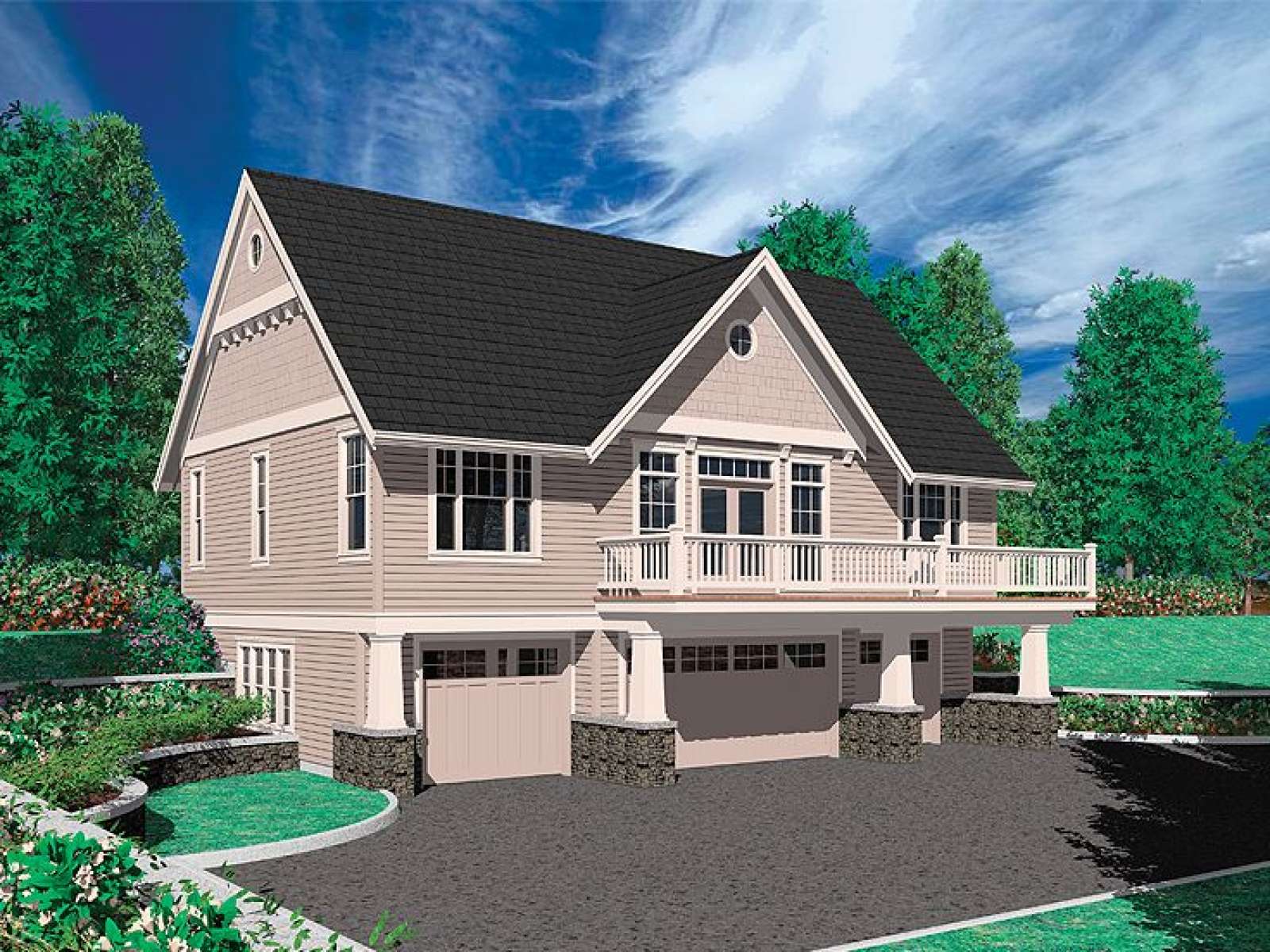

Perfect for a secondary residence or an addition to your sprawling estate, this gorgeous carriage house plan delivers a four-car garage with generous living quarters above. Fashioned to fit an up-sloping lot, the exterior showcases sturdy columns on stone bases, mission style windows and cedar shingles, all characteristic of Craftsman styling. On the main level, the four-car garage boasts 1191 square feet of unfinished space, great for storing automobiles, lawn and garden equipment and much more! Three overhead garage doors allow easy access. Upstairs, the 1334 square foot apartment beams with delight flaunting some of today’s most requested features. The floor plan is open and spacious connecting the island kitchen, dining area and living room for maximum flexibility. Plenty of windows let the outdoors in while a wrap-around deck extends the living areas outside. Retreat to the vaulted master bedroom decked with a full-wall closet and deluxe bath showcasing His and Her sinks, a spa tub, separate shower and compartmented toilet. Don’t miss some of the thoughtful extras not often found in a garage apartment like the interior and exterior stairs, cooktop island/snack bar combo, laundry alcove and extra half bath. An outstanding addition to any home or a great weekend retreat, this four-car garage apartment plan is second to none!
| Heated Square Feet | |
| Second Floor | 1334 |
| Total | 1334 |
| Unheated Square Feet | |
| Deck/Balcony | 442 |
| Garage | 1191 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Half Bathrooms | 1 |
| Width | 54 ft. 0 in. |
| Depth | 37 ft. 0 in. |
| Approximate Height | 35 ft. 0 in. |
| Ceiling Height | |
| First Floor | 9 ft. 6 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 16x8 |
| Garage Door Size(s) | 9x8 (2) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
| Exterior Features |
|

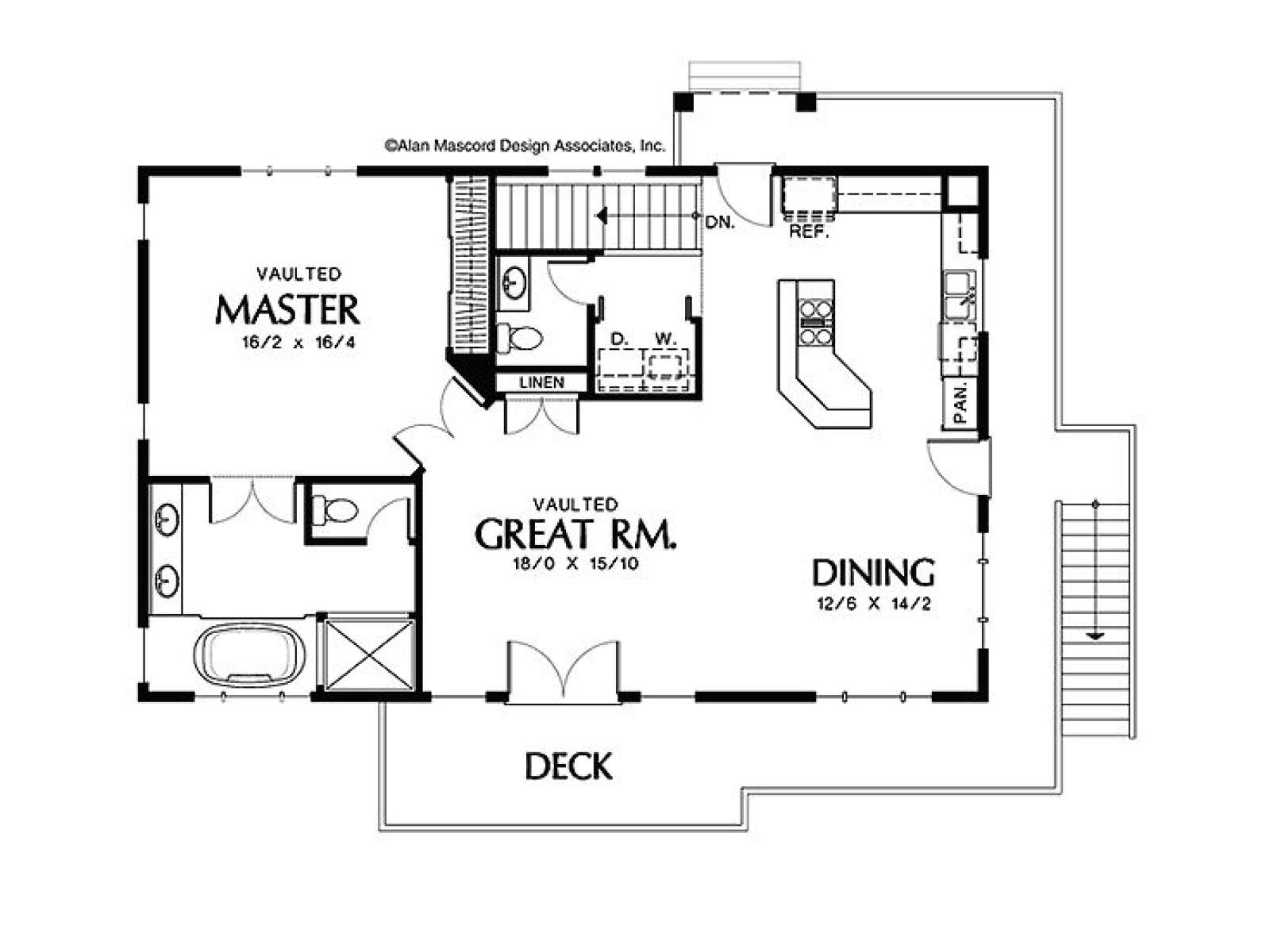

Here is a perfect addition to your estate, a four-car garage with a thoughtfully planned guest suite above, designed to accommodate an up-sloping lot. Craftsman style details, such as tapered columns atop stone bases, mission style windows and cedar accents punctuate the exterior giving this carriage house a look all its own. On the ground level, two single-car bays and a double-car bay protect the family vehicles from the elements. With 1191 square feet of unfinished parking you might wish to store something other than your cars. Extra deep stalls work well for boat storage and could easily shelter an ATV, golf cart, lawn and garden equipment and more. Interior stairs and exterior stairs lend access to the second floor apartment. Outdoor lovers will be delighted with the wrap-around porch taking in panoramic vistas. Now pay attention to the open floor plan where the island kitchen with snack bar, dining area and great room team up creating a flexible living space. Plenty of windows and a vaulted ceiling lend to spaciousness while the deck extends the living areas outside. Other functional features include a half bath, laundry alcove and pantry. Take a second look at the master bedroom. Filled with sunshine, this relaxing space reveals a full-wall closet and luxurious bath complete with spa tub, separate shower, dual sinks and compartmented toilet. A valuable complement to any home, you can’t pass up this four-car garage apartment plan.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | $45 | n/a | n/a |
| Priority 3 - 4 business days | $40 | $90 | $55 | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
