Garage Apartment Plan, 019G-0015
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Craftsman details dress up the exterior of this stylish carriage house plan
Ideal for use as a guest house or as a weekend retreat
Triple garage enjoys extra deep bays accommodating over-sized trucks and SUVs or boat storage
Living quarters feature two bedrooms with private bath access, a laundry closet, large pantry and open living spaces
| Heated Square Feet | |
| Second Floor | 1221 |
| Total | 1221 |
| Unheated Square Feet | |
| Garage | 1233 |
| Bedrooms | 2 |
| Full Bathrooms | 2 |
| Half Bathrooms | 1 |
| Width | 42 ft. 6 in. |
| Depth | 30 ft. 0 in. |
| Approximate Height | 28 ft. 10 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Pitch | 6/12 Other |
| Roof Pitch | 5/12 Other |
| Roof Framing |
|
| Garage Door Size(s) | 9x8 (3) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
| Garage Features |
|
Garage apartment plan with Craftsman details with blend with your Craftsman home

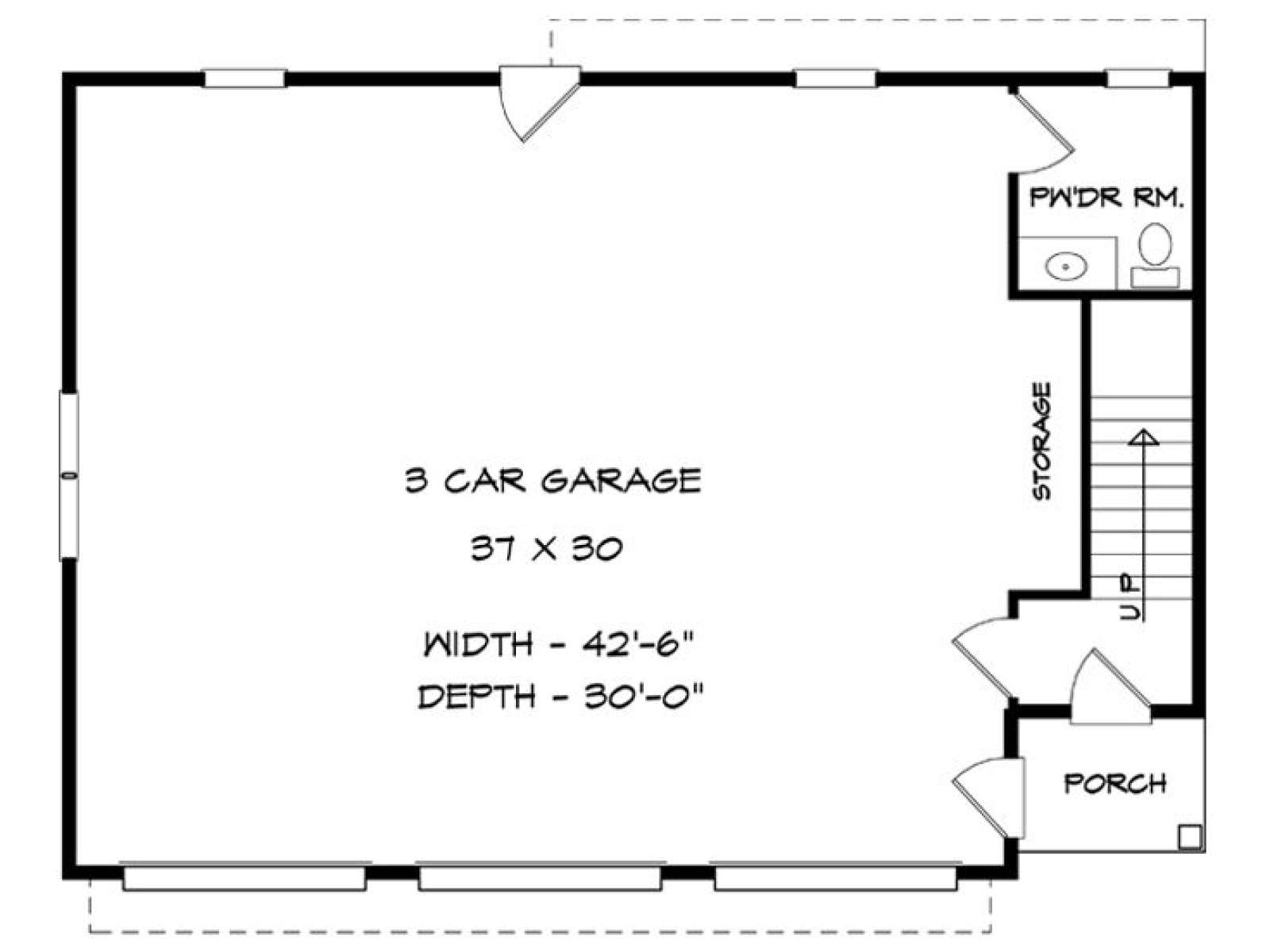

Three-car garage offers extra deep bays well suited for boat storage and over-sized vehicles
Power room provides an easy place to clean up after working outdoors

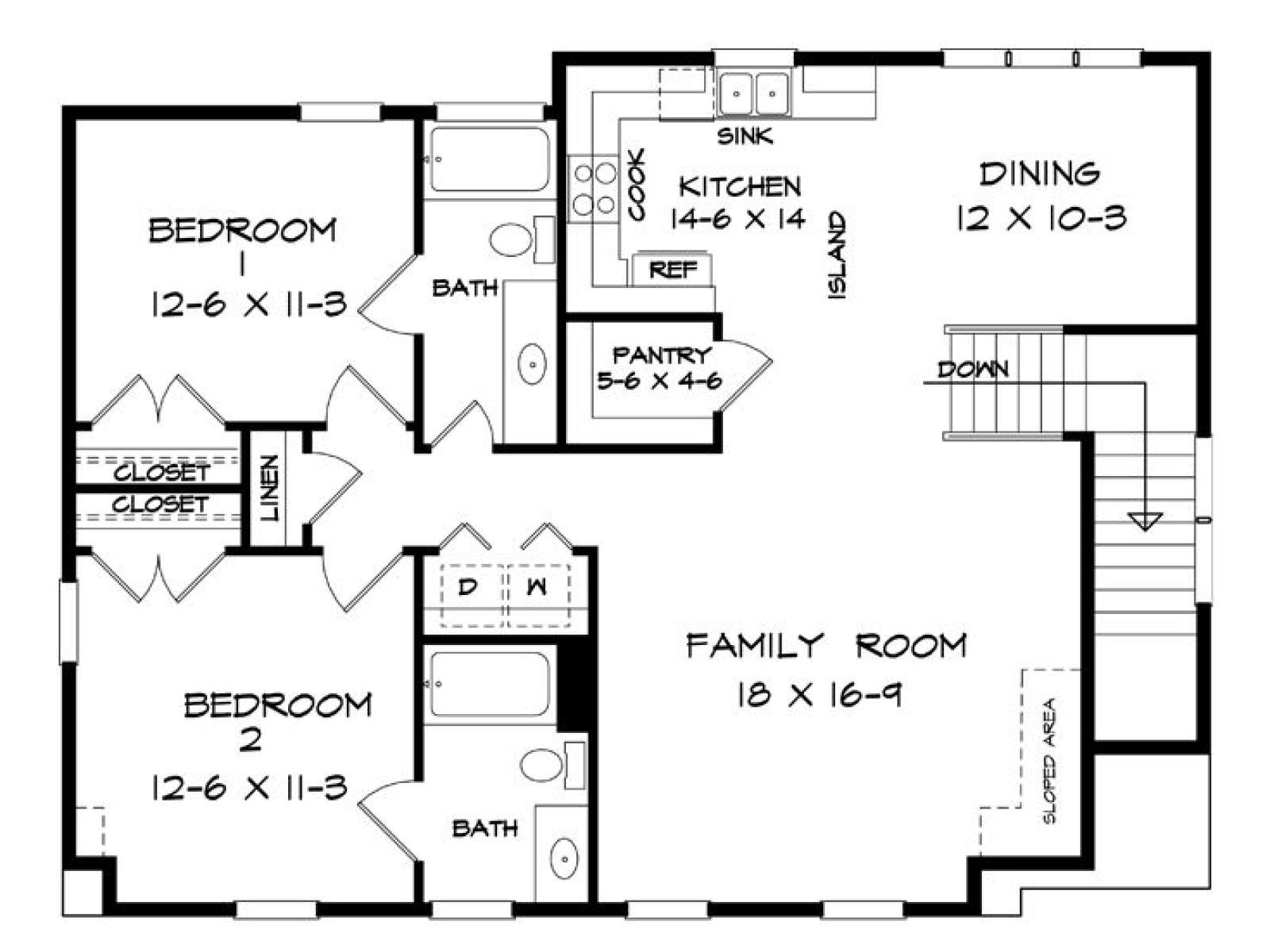

Upper-level apartment boasts an open floor plan where plenty of windows fill the space with natural light
Walk-in pantry offers plenty of storage
Two bedrooms with private bath access appreciate the convenient laundry closet
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $75 | n/a | $95 | n/a |
| Priority 3 - 4 business days | n/a | n/a | n/a | n/a |
| Express 1 - 2 business days | n/a | n/a | n/a | n/a |
