RV Garage Apartment, 012G-0052
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

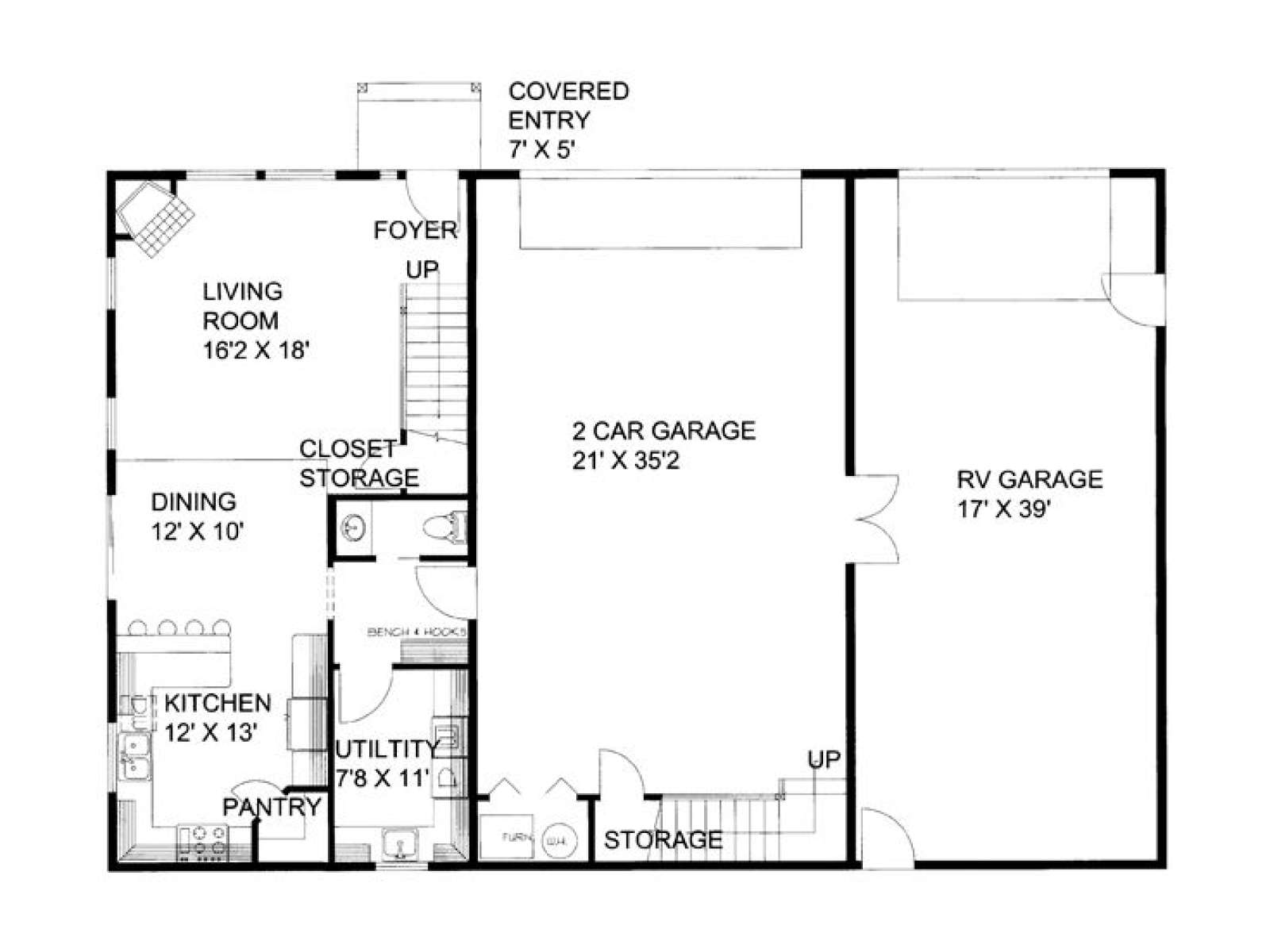

This carriage house plan will astound you with all its features. Not only does it offer an extra deep two-car garage and living quarters, but it also includes an RV garage and storage space. A covered entry opens to the garage apartment where you’ll find all of the common gathering areas neatly arranged on the main level (840 square feet.) Plenty of windows fill the space with natural light and you’ll find special features like a corner fireplace in the living room and an eating bar and pantry enhancing the kitchen. Don’t miss the sliding door opening to the yard from the dining room or the half bath, utility room and service entry that accesses the 2-car garage. On the second level of this two-story apartment (840 square feet), you’ll find three bedrooms and two full baths accommodating everyone’s needs. Now move on to the center of this design. Two extra deep bays nicely accommodate oversized vehicles like pick-up trucks and SUVs, or you might decide to store your boat here. Stairs at the back of the double bay garage lead to an upstairs storage area (860 square feet), ideal for stashing boxes and seasonal items. Finally, the RV garage features two service entries and connects with the 2-car garage. Three windows position high on the left wall fill the space with natural light. The RV garage and the 2-car garage combine to deliver 1560 square feet of parking space. If you are looking for a design that can accommodate a broad range of needs, this garage apartment plan is worth taking a closer look.
| Heated Square Feet | |
| First Floor | 840 |
| Second Floor | 840 |
| Total | 1680 |
| Unheated Square Feet | |
| Garage | 1560 |
| Loft | 860 |
| Bedrooms | 3 |
| Full Bathrooms | 2 |
| Half Bathrooms | 1 |
| Width | 60 ft. 0 in. |
| Depth | 40 ft. 0 in. |
| Approximate Height | 27 ft. 8 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 5/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 16x8 |
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|
| Exterior Features |
|
| Special Features |
|

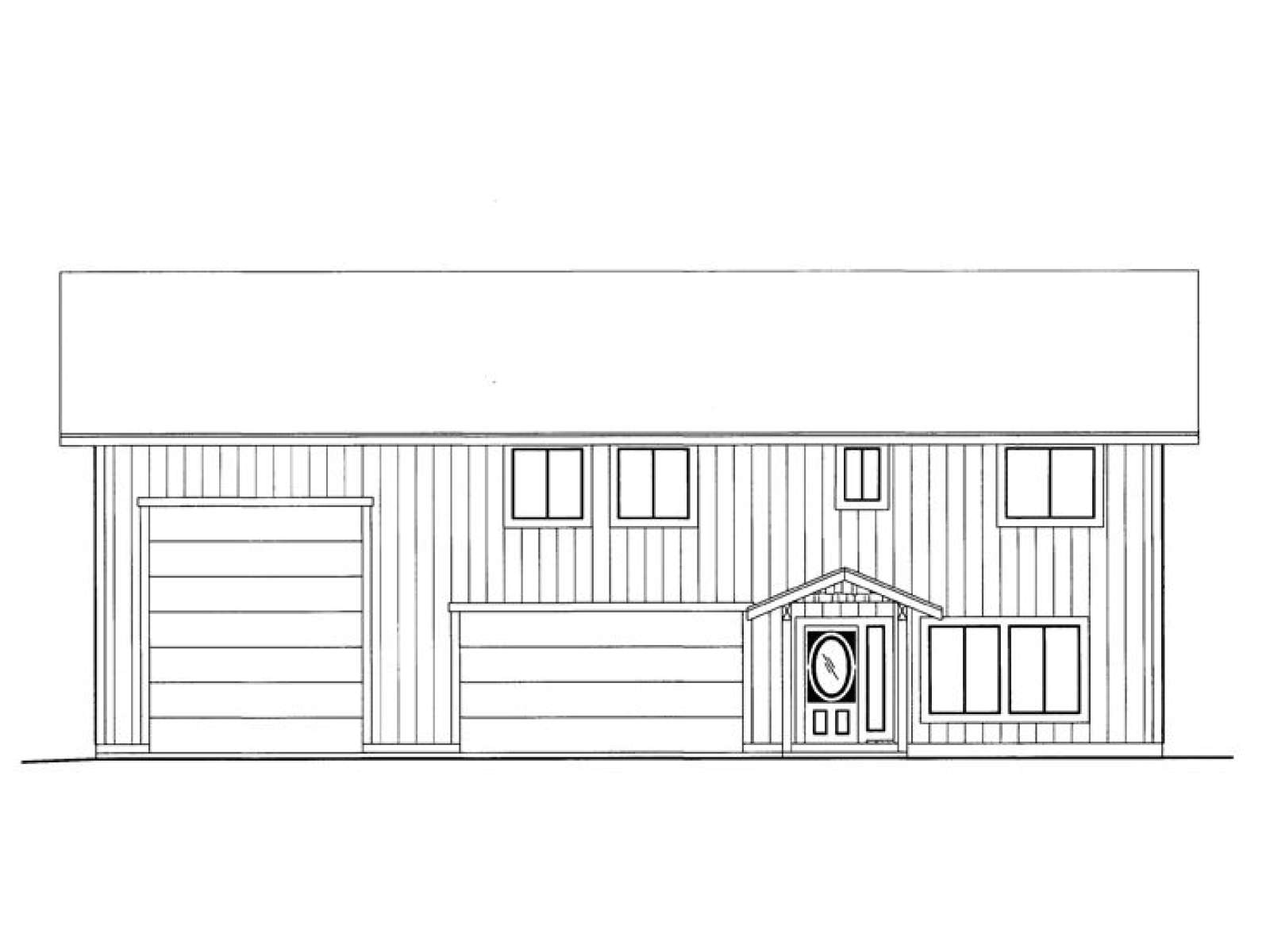

If you are looking for living quarters, a garage for your everyday cars and an RV garage all in one, you’ve found it with this RV garage apartment plan! The exterior features Northwestern styling, but the floor plan is what will get your attention! Begin with the RV garage bay featuring a 14’ tall garage door. It is designed to protect your home away from home when you’re not on the road. Next, pay attention to the 2-car garage complete with extra deep bays offering boat storage. Or you might prefer to store two everyday cars and add a workbench at the back of the garage. The choice is yours! The RV garage and the double garage combined offer 1560 square feet of unfinished parking area. Don’t miss the unfinished storage space (860 square feet) over the 2-car garage. Now, look at the living quarters. This two-story garage apartment offers 840 square feet of finished living area on both levels. The main floor holds the common gathering areas and features an open floor plan complete with living room fireplace, dining area, kitchen snack bar and pantry. The laundry room is a good size, and a mudroom offers a bench and hooks along with access to a half bath and the garage. Upstairs, three bedrooms and two baths offer comfortable accommodations for everyone. Designed to accommodate a variety of needs all in one structure, this carriage house plan offers more than you might expect!
