Garage Apartment Plan, 012G-0034
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

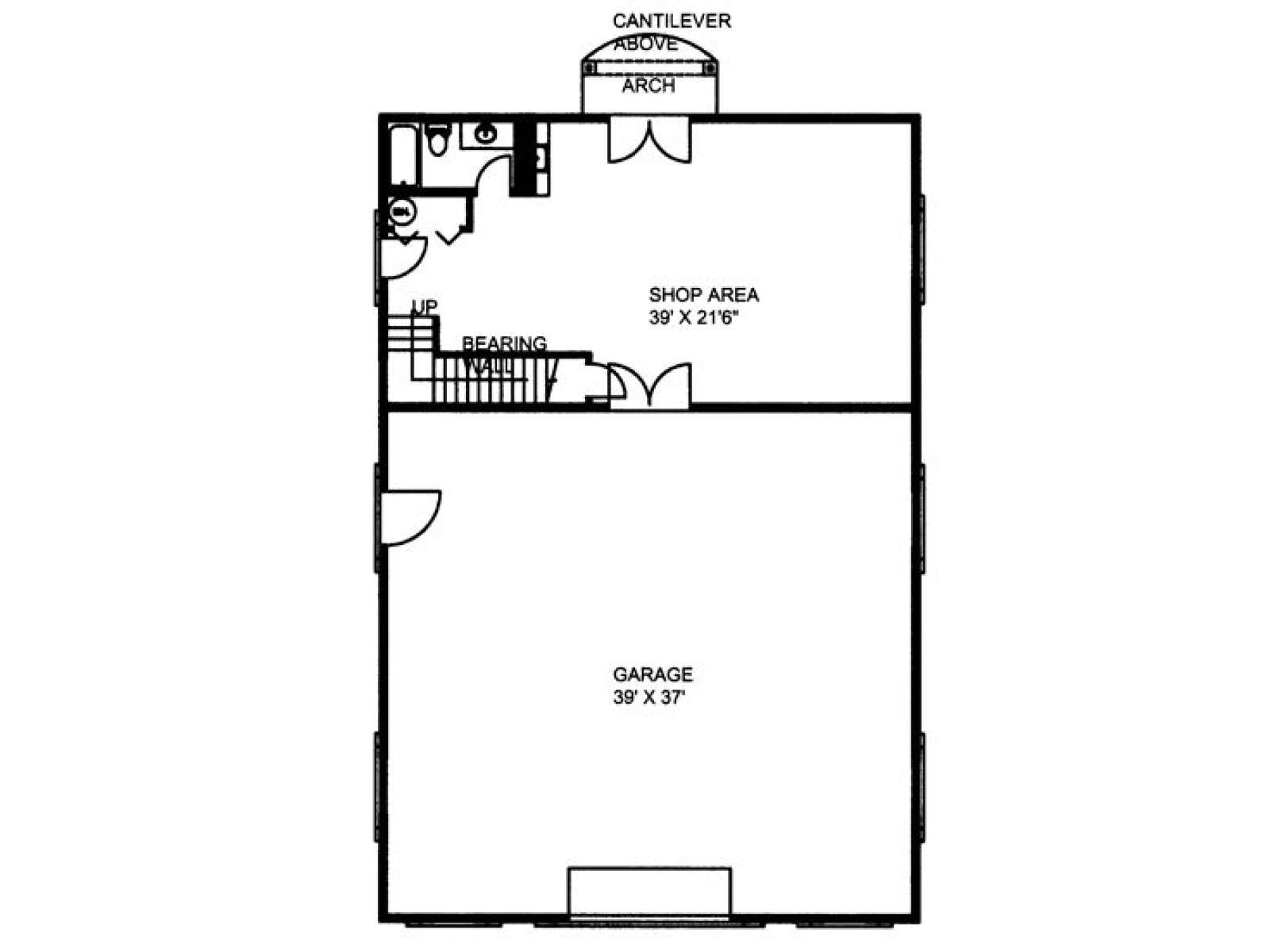

For those who spend more time on the road than they do at home, this carriage house plan with RV storage may be just the design for you. There is no need to own a large home when you travel more often than not, so take a look. This RV garage features plenty of your for your motor home complete with workshop (2400 square feet on the main level) and a comfortable garage apartment upstairs delivering 628 square feet of living space. The shop area offers a utility sink, full bath and double doors opening to the rear. Interior stairs lead to the second floor where you’ll find an efficient kitchen and studio apartment outfitted with a full bath and rear balcony. Or if you prefer, use this design as a one-car garage with extra storage space and workshop with in-laws quarters or a guest suite upstairs. Note: The garage bay is deep enough to hold a boat if need be. Designed to accommodate a variety of needs, this Sunbelt style garage apartment plan with RV storage makes a valuable addition to your home.
| Heated Square Feet | |
| First Floor | 628 |
| Total | 628 |
| Unheated Square Feet | |
| Garage | 2400 |
| Width | 40 ft. 0 in. |
| Depth | 60 ft. 0 in. |
| Approximate Height | 24 ft. 2 in. |
| Ceiling Height | |
| First Floor | 10 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 7/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 12x14 |
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
| Exterior Features |
|

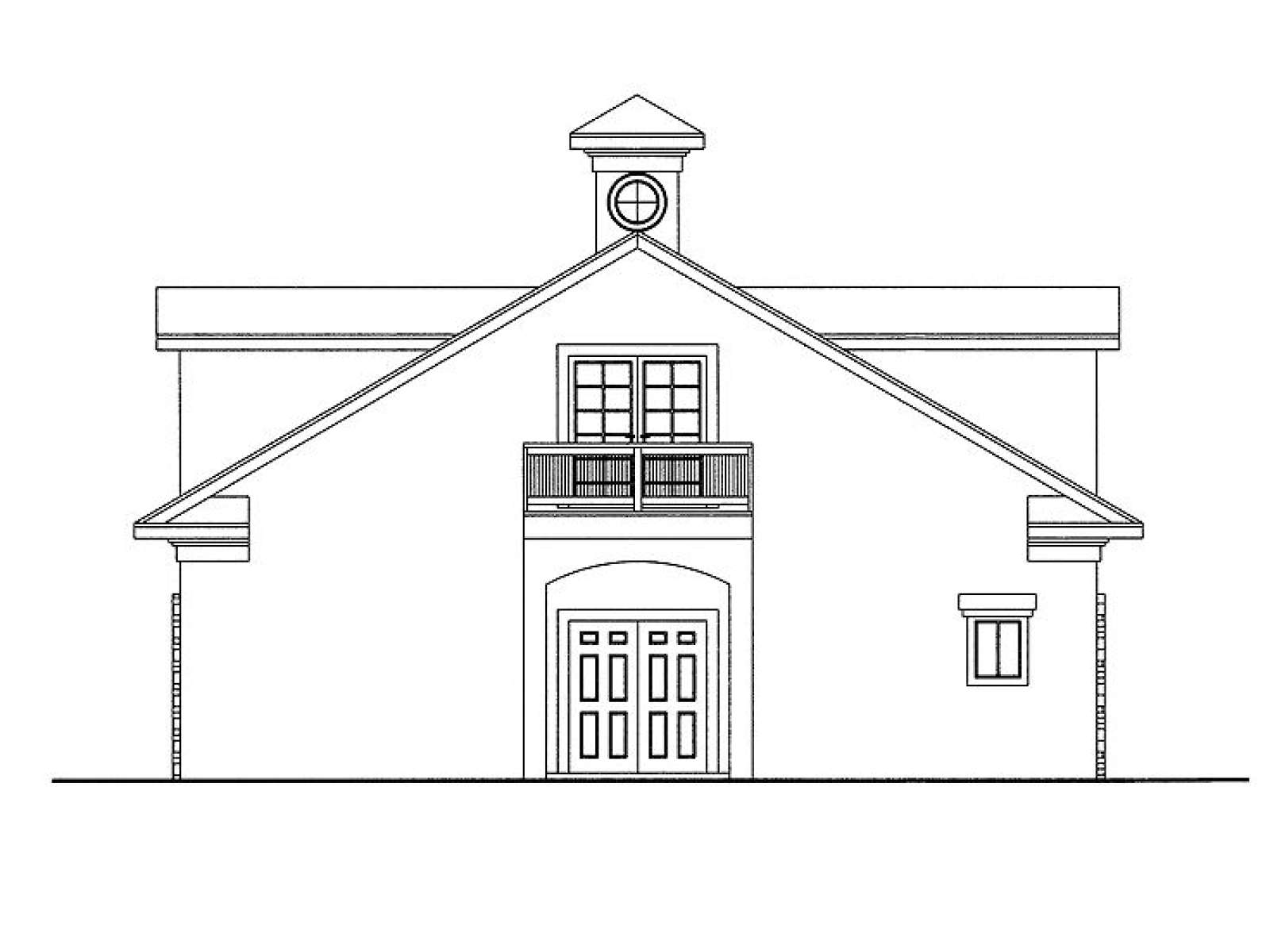

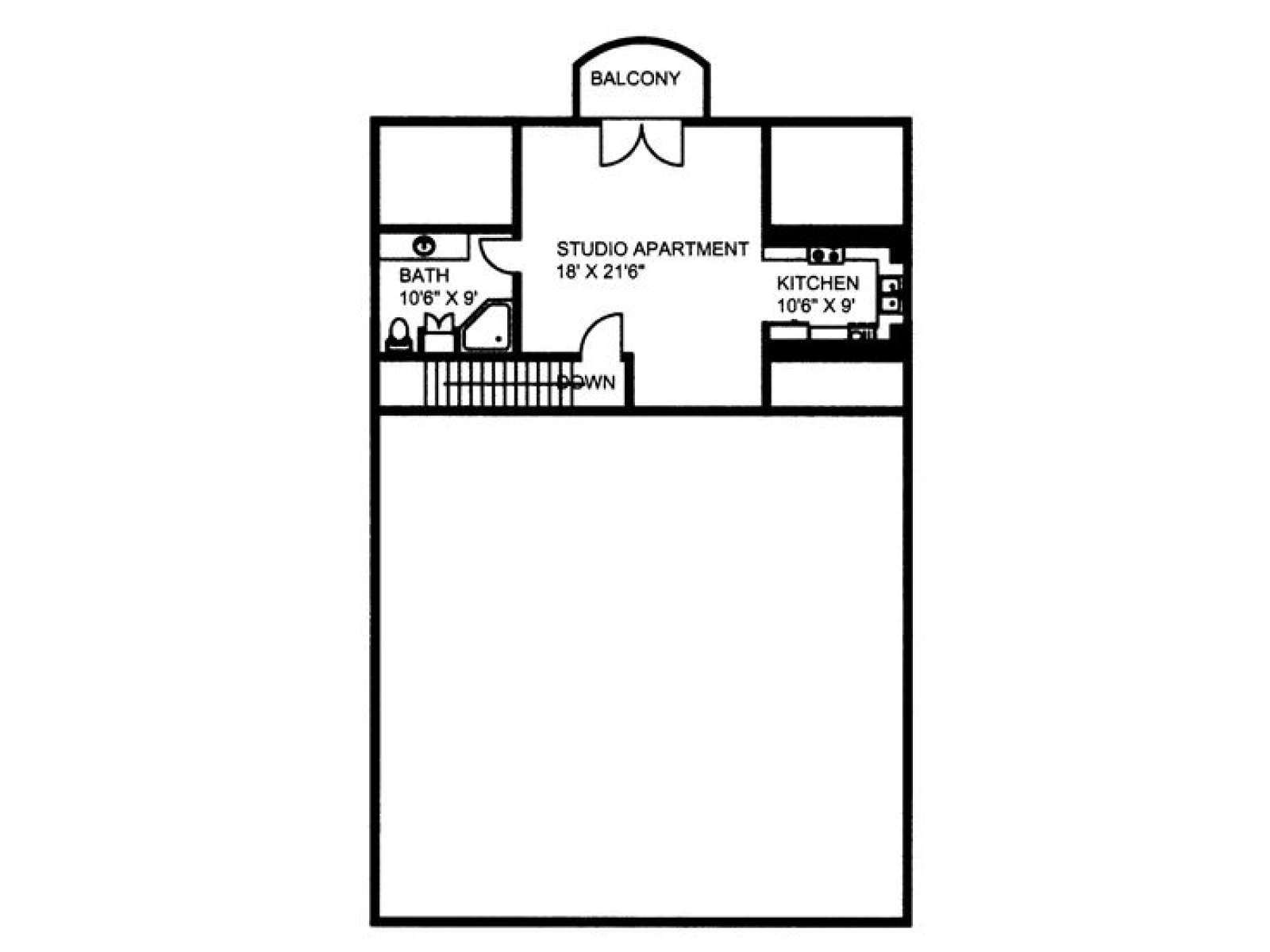

Do you spend more time traveling in your RV than you do at home? If this is true for you, there is no need to own a large home if you can’t enjoy it. Instead, consider this modest garage apartment plan with RV storage. A single 12’x14’ overhead door opens to the garage area providing shelter for your motor home. At the rear, a large workshop is at you service and boasts a full bath, utility sink and double doors opening to the rear. Follow the interior stairs to the second floor where the studio apartment delivers 628 square feet of comfortable living outfitted with a step-saver kitchen and full bath. Perhaps you have a need for a guest suite instead. Consider using the main level as a single-car garage or boat storage area and the workshop for personal use while providing cozy accommodations for overnight guests upstairs. If you want a design that has it all, this carriage house plan with RV storage is the one for you!
