Unique Carriage House, 010G-0017
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

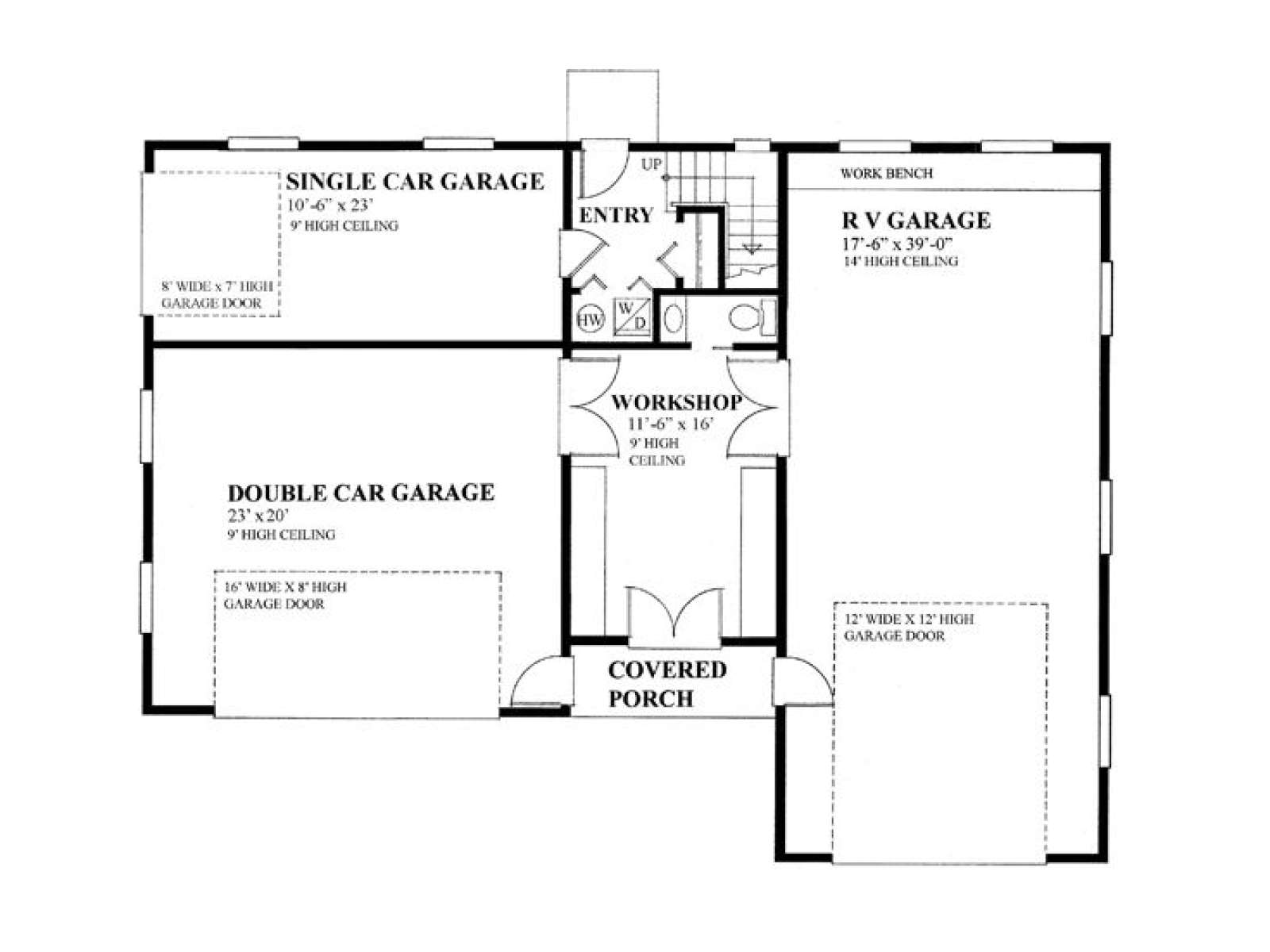

This unique carriage house plan offers more than you might expect. The RV portion of this garage combination has a 14’ ceiling, 12’x12’ overhead door and a workbench at the back of the bay. It delivers 740 square feet of parking for your RV, motor home or even a boat and trailer. The 2-car garage enjoys a front-entry design and delvers 504 square feet of parking outfitted with a 16’x8’ overhead door and a 9’ ceiling. Both the RV bay and the double garage have access to the front porch and the workshop with half bath (216 square feet). The double doors opening from the workshop to both bays facilitate easy equipment movement between units. Behind the 2-car garage, a side-entry, 1-car garage is dedicated to the upstairs apartment which, is access through the rear entry (106 square feet) making the apartment perfect for rental property. Or if you prefer, you can use it as a storage space or even a hobby room. It delivers 264 square feet of parking, a 9’ ceiling and a 8’x7’ overhead door. The second floor living quarters reveal an office boasting a skylight, an open floor plan with combined great room and dining area and a handy eating bar. The open concept living area enjoys natural lighting via the front facing window wall. The bedroom features a full bath. Carefully planned and designed to accommodate a variety of needs within one structure, this 3-car garage apartment plan with RV bay and workshop can’t be beat!
| Heated Square Feet | |
| First Floor | 106 |
| Second Floor | 807 |
| Total | 913 |
| Unheated Square Feet | |
| Garage | 1508 |
| Porch(es) | 46 |
| Workshop | 216 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Half Bathrooms | 2 |
| Width | 54 ft. 0 in. |
| Depth | 40 ft. 0 in. |
| Approximate Height | 25 ft. 3 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 10/12 Main |
| Roof Pitch | 4/12 Other |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Interior Features |
|
| Exterior Features |
|
| Garage Features |
|

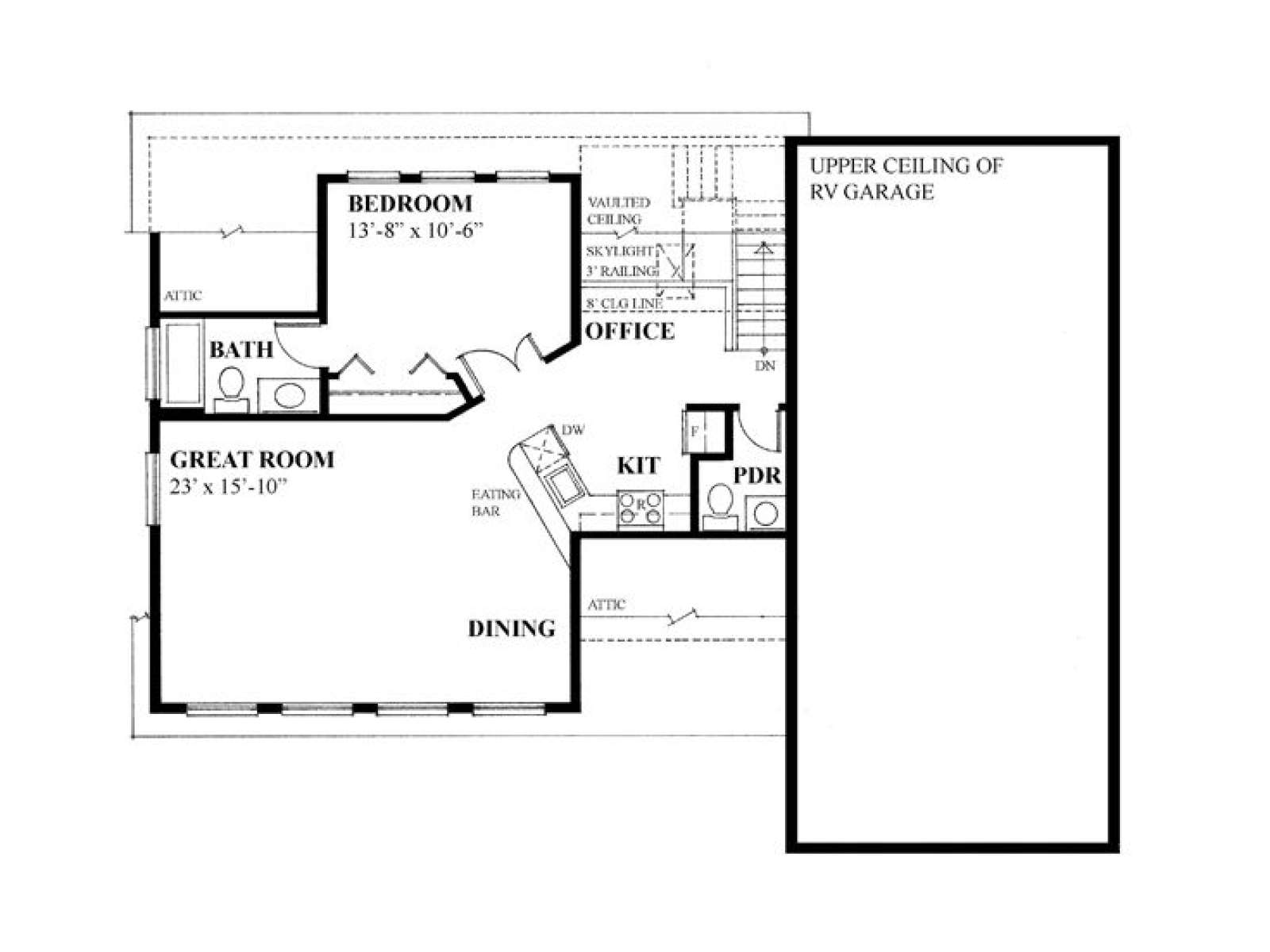

This 3-car garage apartment plan with RV bay does double duty offering plenty of parking on the main level and living quarters above. The RV bay delivers 740 square feet of parking along with a 12’x12’ overhead door, 14’ ceiling and a workbench. It can be accessed from the covered porch or the workshop (216 square feet.) Opposite the RV bay, you’ll find a 2-car, front-entry garage 504 square feet) outfitted with 16’x8’ overhead door and a 9 foot ceiling. Behind it, the single-bay garage enters form the side and works well for storing lawn and garden equipment, motorcycles or even a golf cart. It delivers 264 square feet of parking and features a 9’ ceiling and 8’x7’ overhead door. At the back of the garage, the rear entry area (106 square feet) offers space for a stackable washer/dryer unit and stairs leading to the second floor garage. A half bath completes the main level. Upstairs, the 807 square foot apartment is ideal for use as a guest suite. It could also be rented out to singles or college students helping you earn extra income. The apartment enjoys an open floor plan with angled eating bar, open living area, office, and bedroom with private bath. Designed with 1830 square feet on the first floor and 807 square feet on the second floor, this unique carriage house plan with workshop has more to offer than meets the eye!
