Unique Garage Apartment, 007G-0009
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

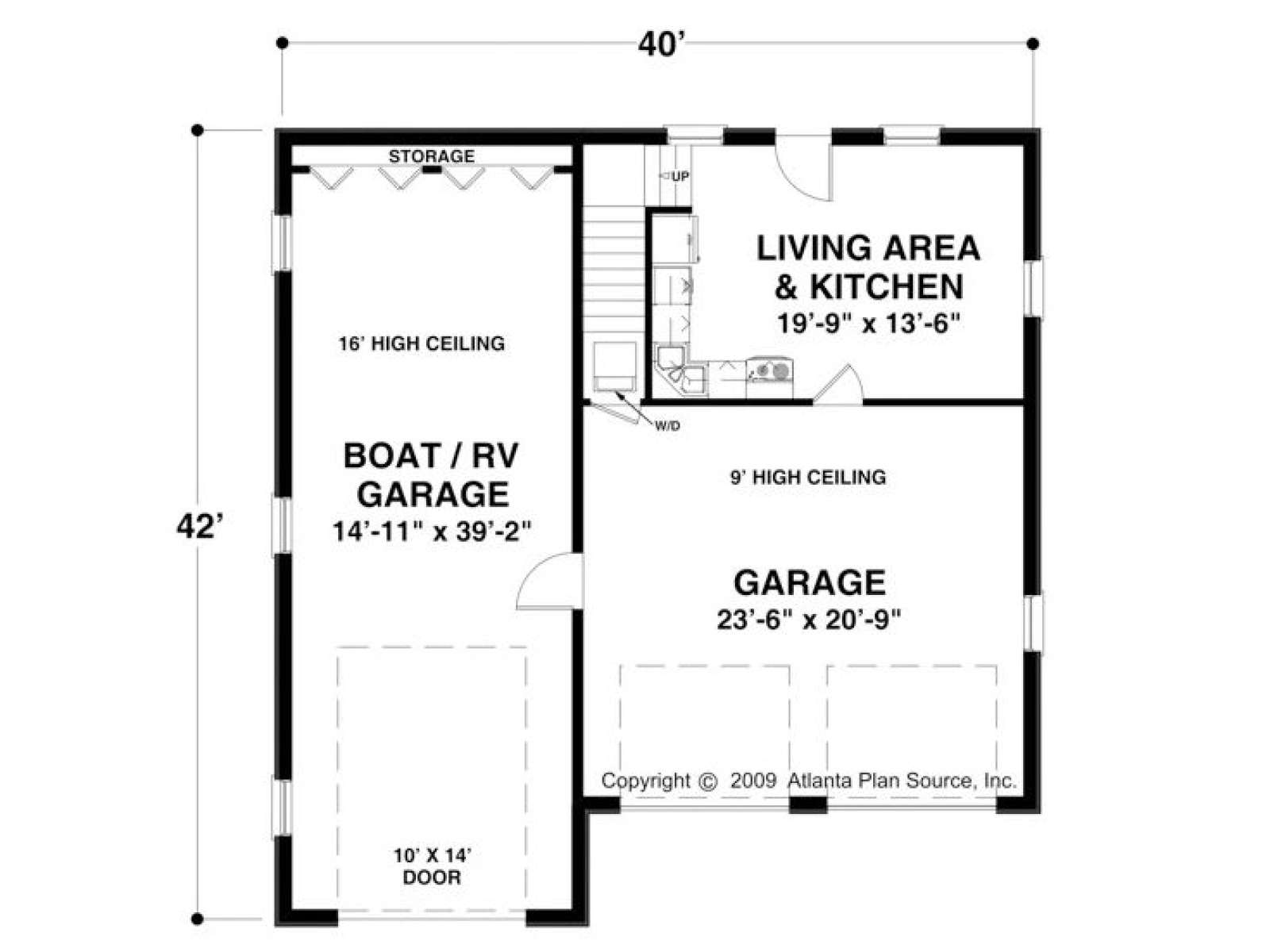

For those who spend more time on the road than tied to an address, this carriage house plan with RV storage is for you. There is no sense in owing a large home if you don’t get much use out of it. Instead, consider this modest garage apartment. It has everything you need and works well as your home base. A 2-car garage provides room for the family vehicles or could even serve as storage space. It offers dual overhead doors and a closet for a stacked washer and dryer. Through a service door, you will find the RV bay outfitted with a 16’ ceiling and a 10’x14’ overhead door. A storage closet and sunny windows are thoughtful extras. The living quarters are split into two levels beginning with the combined efficient kitchen and living area on the first floor and the private bedroom suite on the second floor. The sleeping zone also delivers a cozy sitting area, full bath, double walk-in closet and a mechanical/storage space. When you love to travel but need a place to come home to from time to time, this 2-car garage apartment plan with RV storage is the perfect solution.
| Heated Square Feet | |
| First Floor | 358 |
| Second Floor | 512 |
| Total | 870 |
| Unheated Square Feet | |
| Garage | 1219 |
| Bedrooms | 1 |
| Full Bathrooms | 1 |
| Width | 40 ft. 0 in. |
| Depth | 42 ft. 0 in. |
| Approximate Height | 22 ft. 8 in. |
| Ceiling Height | |
| First Floor | 9 ft. 0 in. |
| Second Floor | 8 ft. 0 in. |
| Roof Pitch | 8/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 10x14 |
| Garage Door Size(s) | 9x7 (2) |
| Foundation Options |
|
| Exterior Wall Options |
|
| Bedroom Features |
|
| Interior Features |
|

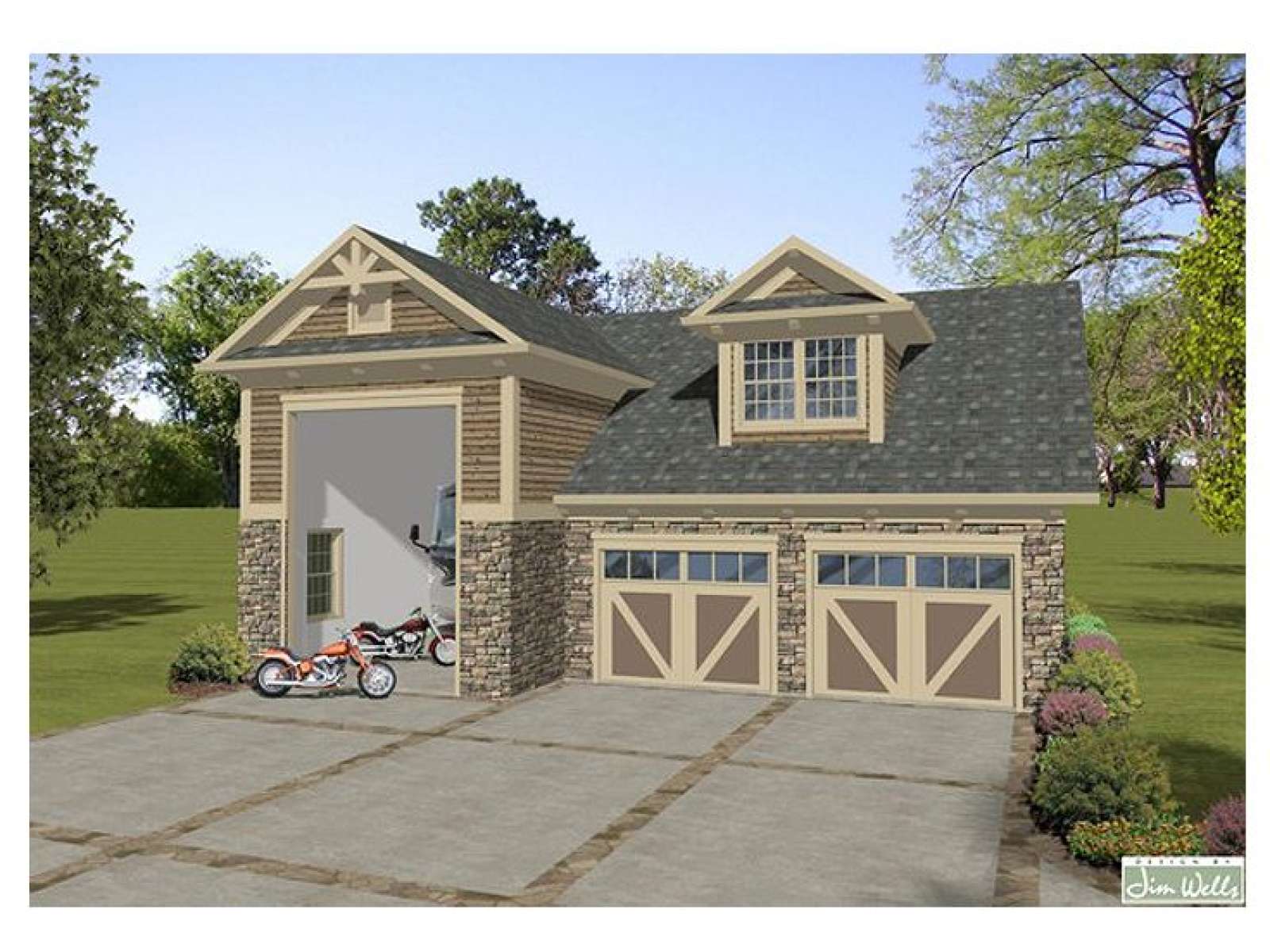

Touches of Craftsman style complement the stone and siding façade of this two-car garage apartment plan with RV storage. A 10’x14’ overhead door opens to reveal a 16’ ceiling and storage closet giving you the ideal place to store your motor home. You’ll appreciate the sunny windows filling the space with natural light and the service door opening from the RV bay to the two-car garage. Two overhead doors outfit the double-car garage topped with a 9’ ceiling. Also, you will find a laundry closet, perfect for a stacked washer and dryer. Behind the car garage, lies the kitchen and living area of the compact apartment. This space features sparkling windows and offers stairs to the second floor where you’ll discover a handsome bedroom suite complete with sitting room, full bath and dual walk-in closets. An unfinished space works well as a mechanical room and storage area. If you spend the majority of your time on the road enjoying America’s majesty, you’ll be happy to have this charming carriage house as your home base giving you room for your RV, cars and a comfortable living space.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $25 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | n/a | n/a |
| Express 1 - 2 business days | $65 | n/a | n/a | n/a |
