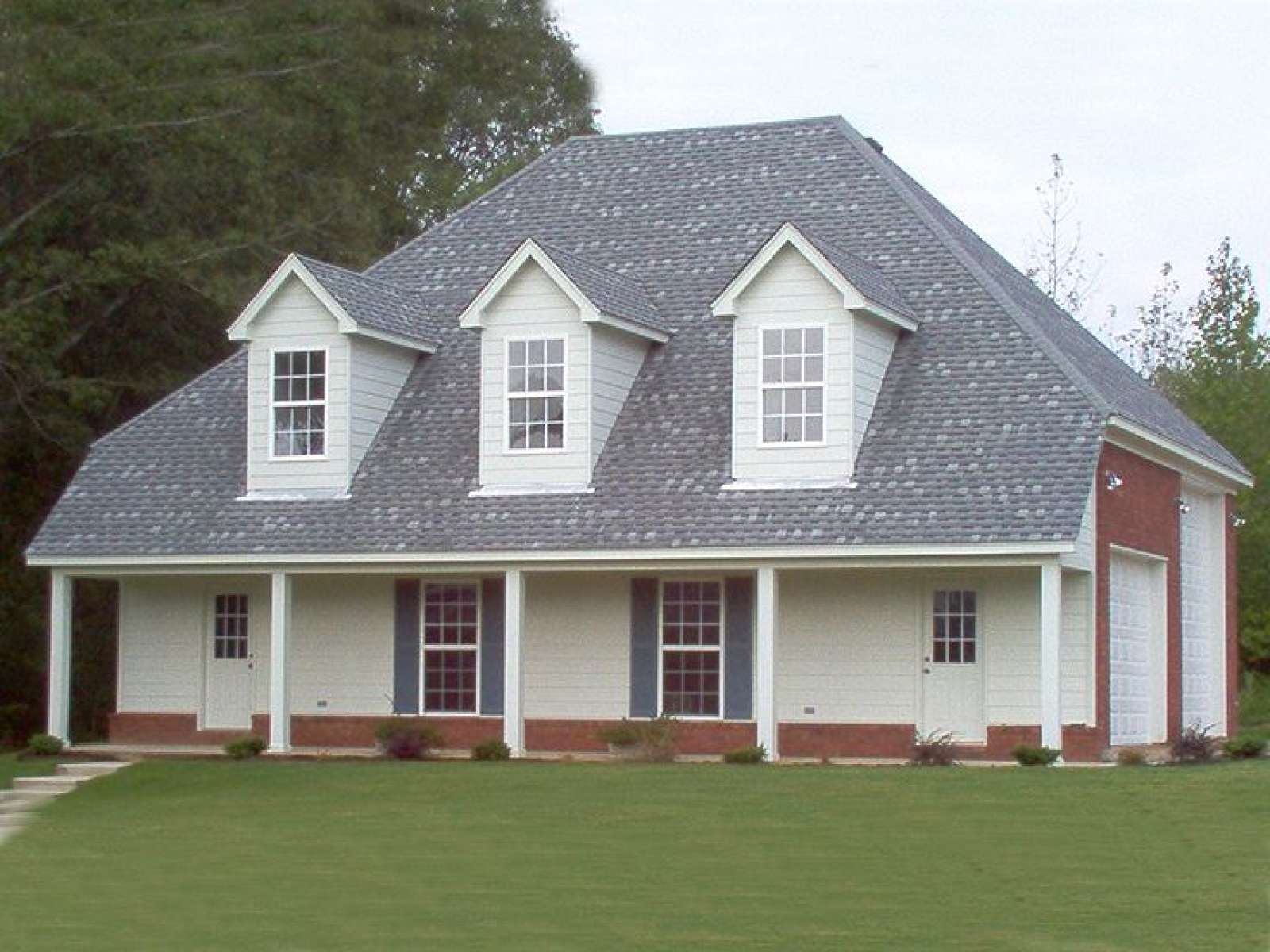

Carriage House Photo, 006G-0120
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.

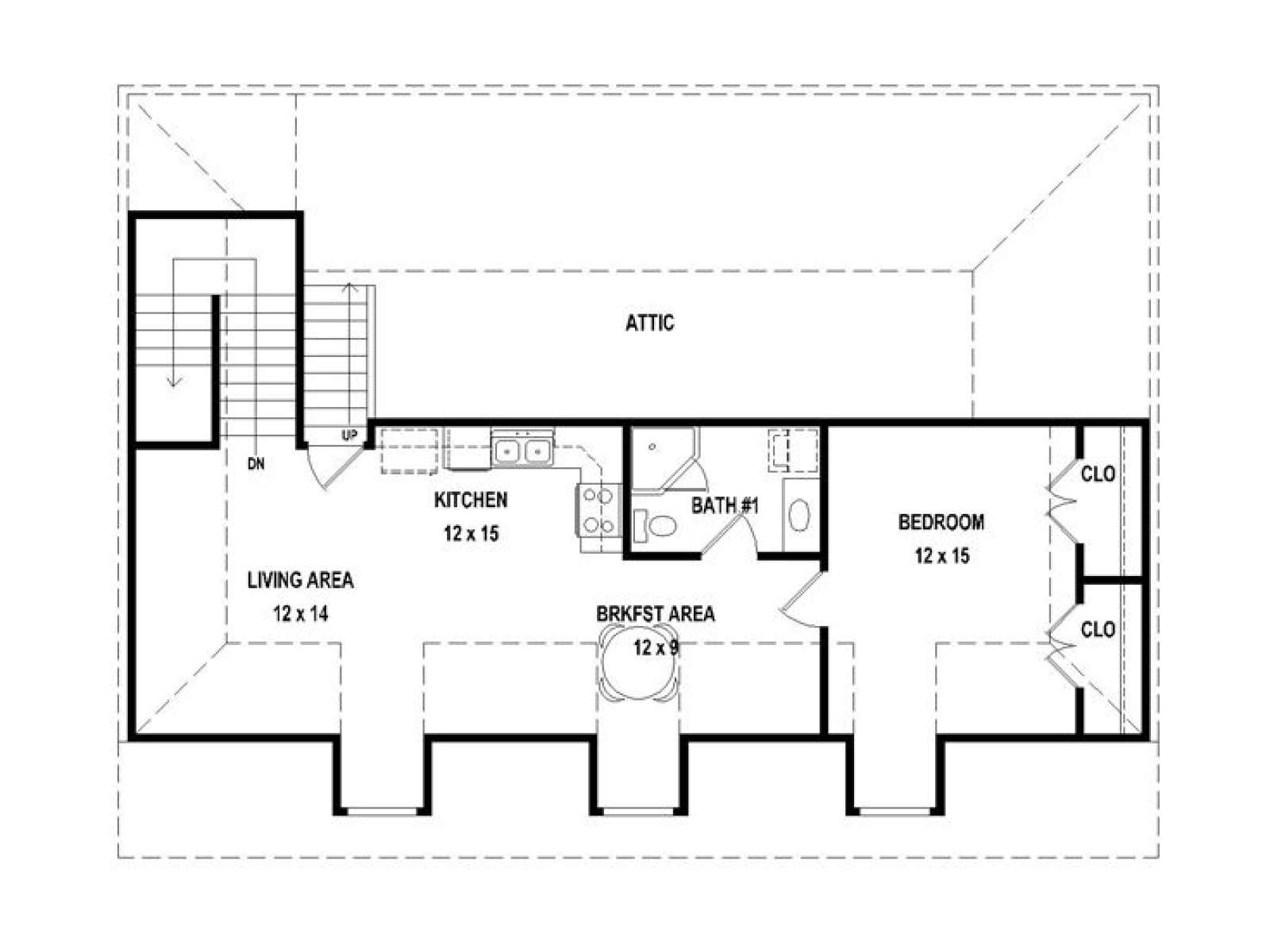

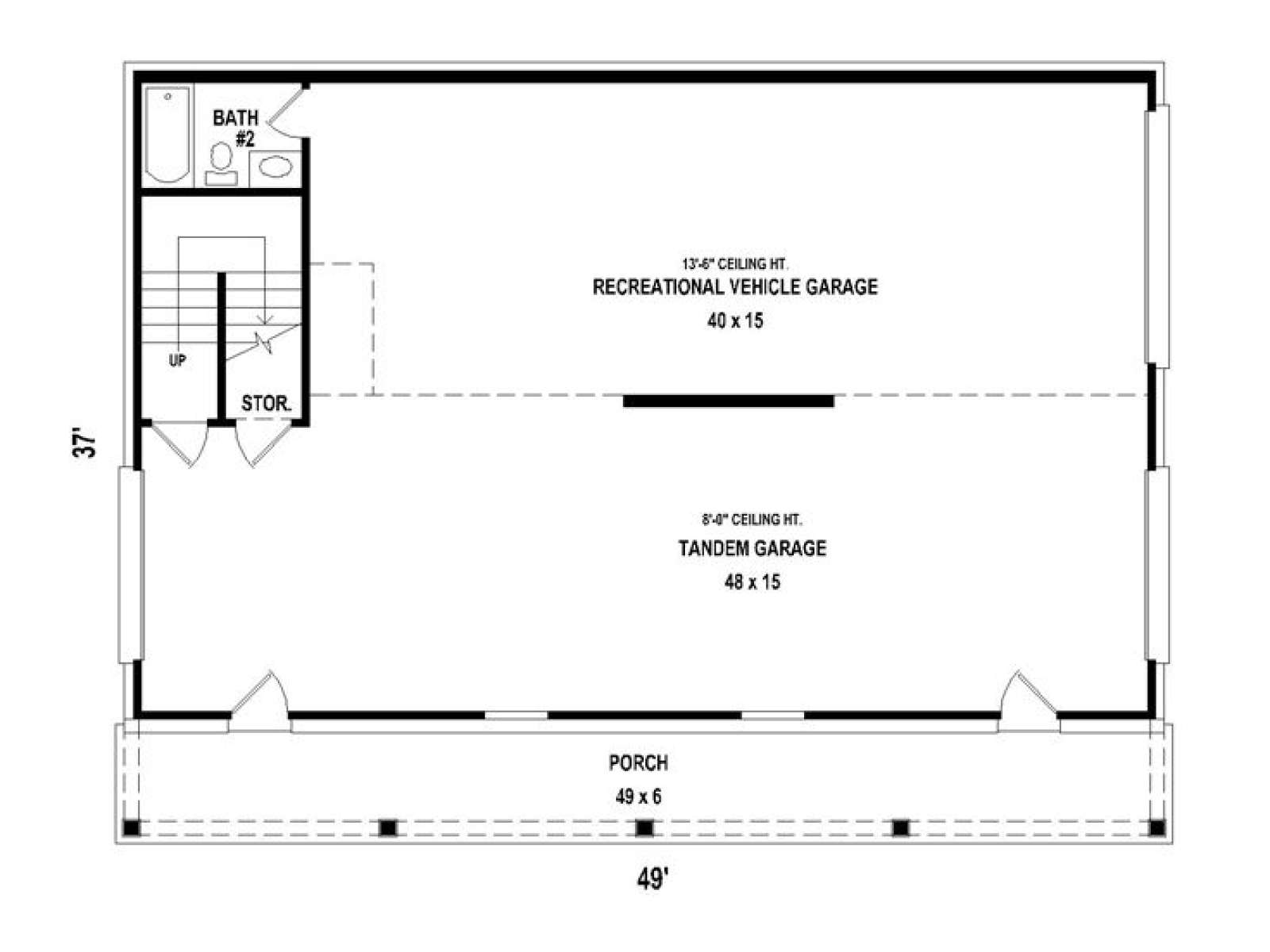

This drive-thru garage plan is flexible enough to accommodate a variety of needs beginning with the tandem bay that easily stores multiple cars or converts to a workshop, storage space or whatever you might need. This drive-thru bay makes things easy when it comes to parking or storing items in the garage allowing access from either end. Attached to the tandem garage is an RV bay, perfect for protecting your home away from home when you aren’t on the road. The main level offers 1406 square feet of garage and storage space with a full bath tucked in the corner for convenience. Don’t miss the full-length covered porch giving you a peaceful place to relax at the end of the day. Interior stairs lead to the second floor living quarters. Use this space for rental property, an in-law suite or a private space for your college student or boomerang kids. Three dormer windows light up the living spaces. The kitchen breakfast area and living room join forces creating a comfortable living area. Two closets outfit the spacious bedroom and a full bath is at your service. A combination of practical parking and storage topped with comfortable living, this RV garage plan with apartment is a valuable addition to any piece of property.
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
| Heated Square Feet | |
| First Floor | 152 |
| Second Floor | 782 |
| Total | 934 |
| Unheated Square Feet | |
| Garage | 1406 |
| Porch(es) | 251 |
| Bedrooms | 1 |
| Full Bathrooms | 2 |
| Width | 49 ft. 0 in. |
| Depth | 37 ft. 0 in. |
| Approximate Height | 29 ft. 10 in. |
| Ceiling Height | |
| First Floor | 8 ft. 0 in. |
| Second Floor | 9 ft. 0 in. |
| Roof Pitch | 12/12 Main |
| Roof Framing |
|
| Garage Door Size(s) | 9x7 |
| Garage Door Size(s) | 12x12 |
| Foundation Options |
|
| Exterior Wall Options |
|
| Interior Features |
|
| Exterior Features |
|
Are you looking for an RV garage plan with a apartment above it? Take a look at this flexible plan. It has so many possibilities, it is sure to accommodate a broad range of buyers. The first level provides a drive-thru garage composed of a tandem bay easily handling multiple cars or boat storage. With overhead doors on both ends, it will be easy to access whatever you park or store inside. Attached to the tandem garage is an RV bay giving you a safe place to store your motor home when you’re not on the road. The main level delivers 1406 square feet of parking and storage area with a full bath tucked in the corner for convenience. Don’t miss the covered porch giving you a great place to sip lemonade while you watch the sunset after you return from a long road trip. Upstairs, the garage apartment boasts an open floor plan with comfortable living space and a large bedroom decked with double closets. Notice the three dormer windows illuminating the upper floor with natural light. Designed for flexible parking and storage along with comfortable living, this boat storage garage plan and carriage house design is sure to get your attention.
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
Purchased as PDF or CAD file
PDF and CAD files are delivered by email, and have no shipping and handling cost.
Purchased as paper plans
* Scroll right to view table
| Continental US | Canada | AK/HI | *International | |
|---|---|---|---|---|
| Regular 8 - 12 business days | $35 | n/a | n/a | n/a |
| Priority 3 - 4 business days | $40 | n/a | $55 | n/a |
| Express 1 - 2 business days | $55 | n/a | n/a | n/a |
