Garage Apartment Plan, 006G-0117
All images are copyrighted by our designers. Photos may reflect modifications made by the builder/homeowner.
Need extra parking or a boat storage garage and room for your family to grow and grow and grow? Take a look at this special carriage house plan which can be finished in one or two phases. Begin with the 684 square foot boat storage garage. This 2-car garage design features extra deep bays and a 10’ ceiling, ideal for parking oversized vehicles or storing a boat and trailer. Beside the garage, a 609 square foot studio apartment can be finished right away. With its full bath, laundry room and modest kitchen, this studio design works well for a guest retreat. In the future, you may opt to convert it to a home office, hobby room or recreation area. Now take a look at the second floor. This garage apartment can be finished during construction or as a second phase in the future. Revealing 1282 square feet of future finished space, the living quarters work well as rental property or perhaps the nanny’s living quarters. The second floor plan is fully detailed and included in the garage blueprints. It offers an open living area with compact kitchen, dining area and living room lit by a trio of windows. The cozy loft is situated near the large bedroom and full bath. If you need to add living space and extra parking, this 2-car garage apartment plan with boat storage is the one for you!
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
| Heated Square Feet | |
| First Floor | 609 |
| Total | 609 |
| Unheated Square Feet | |
| Bonus | 1285 |
| Garage | 684 |
| Full Bathrooms | 1 |
| Width | 42 ft. 0 in. |
| Depth | 32 ft. 0 in. |
| Approximate Height | 31 ft. 1 in. |
| Ceiling Height | |
| First Floor | 10 ft. 0 in. |
| Roof Framing |
|
| Foundation Options |
|
| Exterior Wall Options |
|
| Kitchen Features |
|
| Bedroom Features |
|
| Interior Features |
|

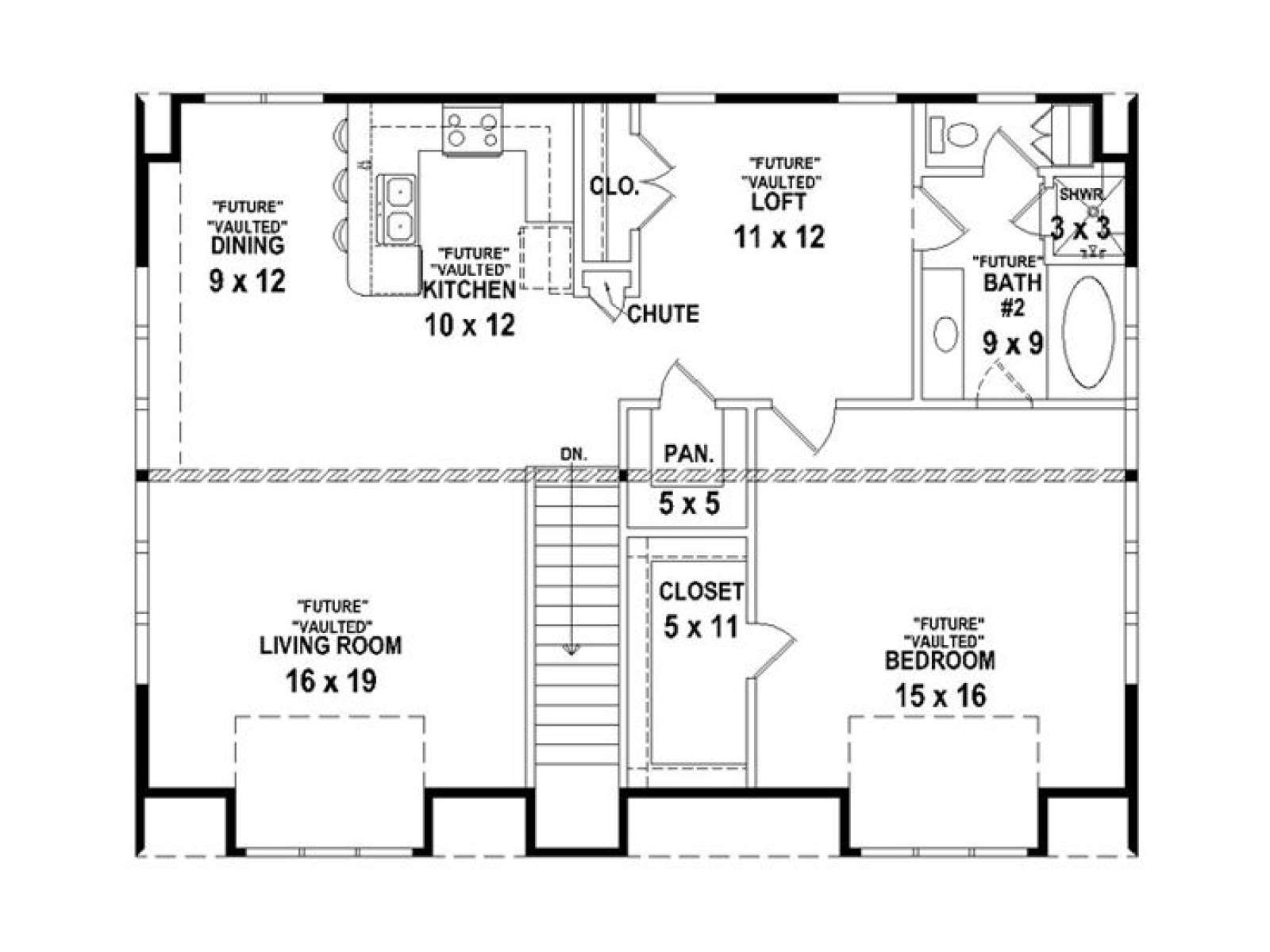

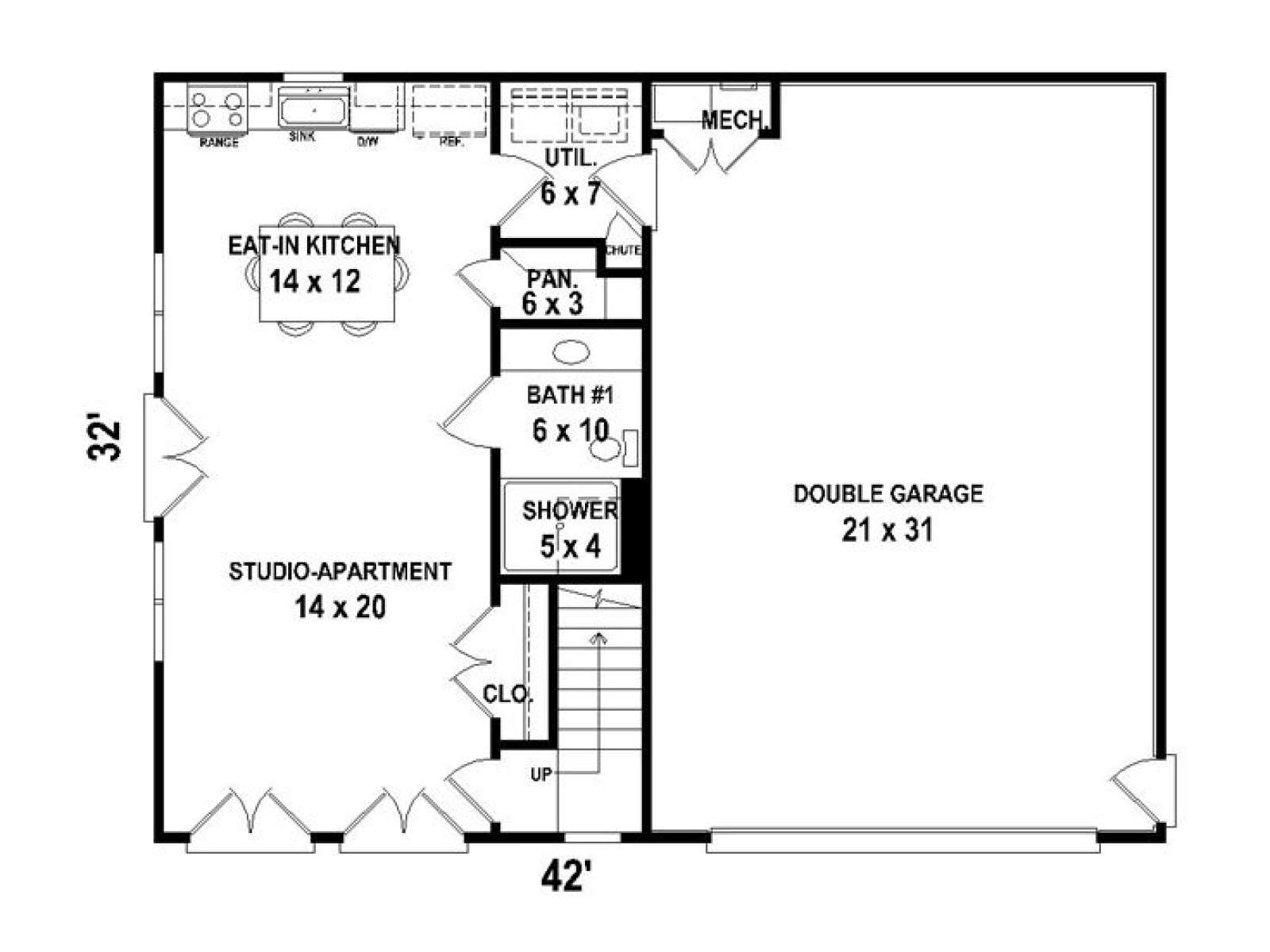

Take a look at this two-car garage apartment plan with boat storage. An overhead garage door opens to two extra-deep parking bays which work well for parking oversized vehicles or boat storage. A 10’ ceiling is a thoughtful touch. The garage area is 684 square feet. A service door at the rear of the two-car garage opens to a laundry room which connects with a studio apartment (609 square feet). This space is equipped with a full bath, modest kitchen, pantry and plenty of living space, offering the perfect guest or in-law suite for occasional visitors. Or if you prefer, turn this space in to a home office or art studio. Upstairs, a future space reveals a great apartment your college student or boomerang kids. This fully detailed floor plan is included in the blueprints and can be finished during construction or in the future. Showcasing 1285 square feet of future finished space, the second floor plan delivers a step-saver kitchen with eating bar, dining area, open living room, cozy loft, full bath and spacious bedroom with walk-in closet all beneath a vaulted ceiling. Pay attention to the laundry chute and roomy pantry. Designed to give your family extra parking and room to grow, this carriage house plan is worth taking a second look!
Note: Exterior wall dimensions are rounded to the nearest foot. Contact us for specific measurements.
